Connectors
2-8
Bluetooth EZ-Extender Manual
Connectors
This section describes connector functionality and provides information
about mating connectors. The connector locations are shown in
. Dashed lines indicate connectors on the bottom side of the
board.

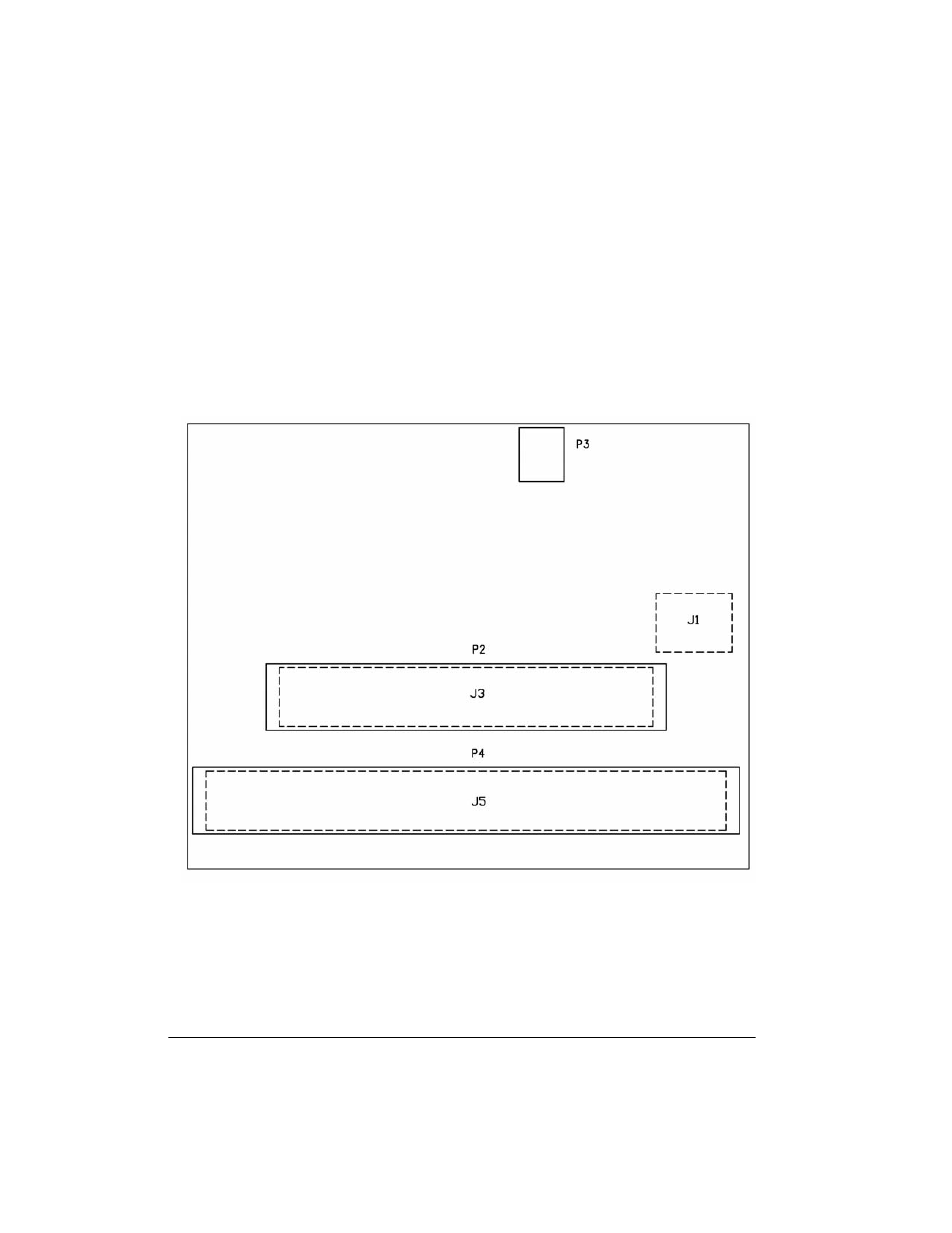

Figure 2-5. Connector Locations
