CS1642 / CS1644 User Manual
8

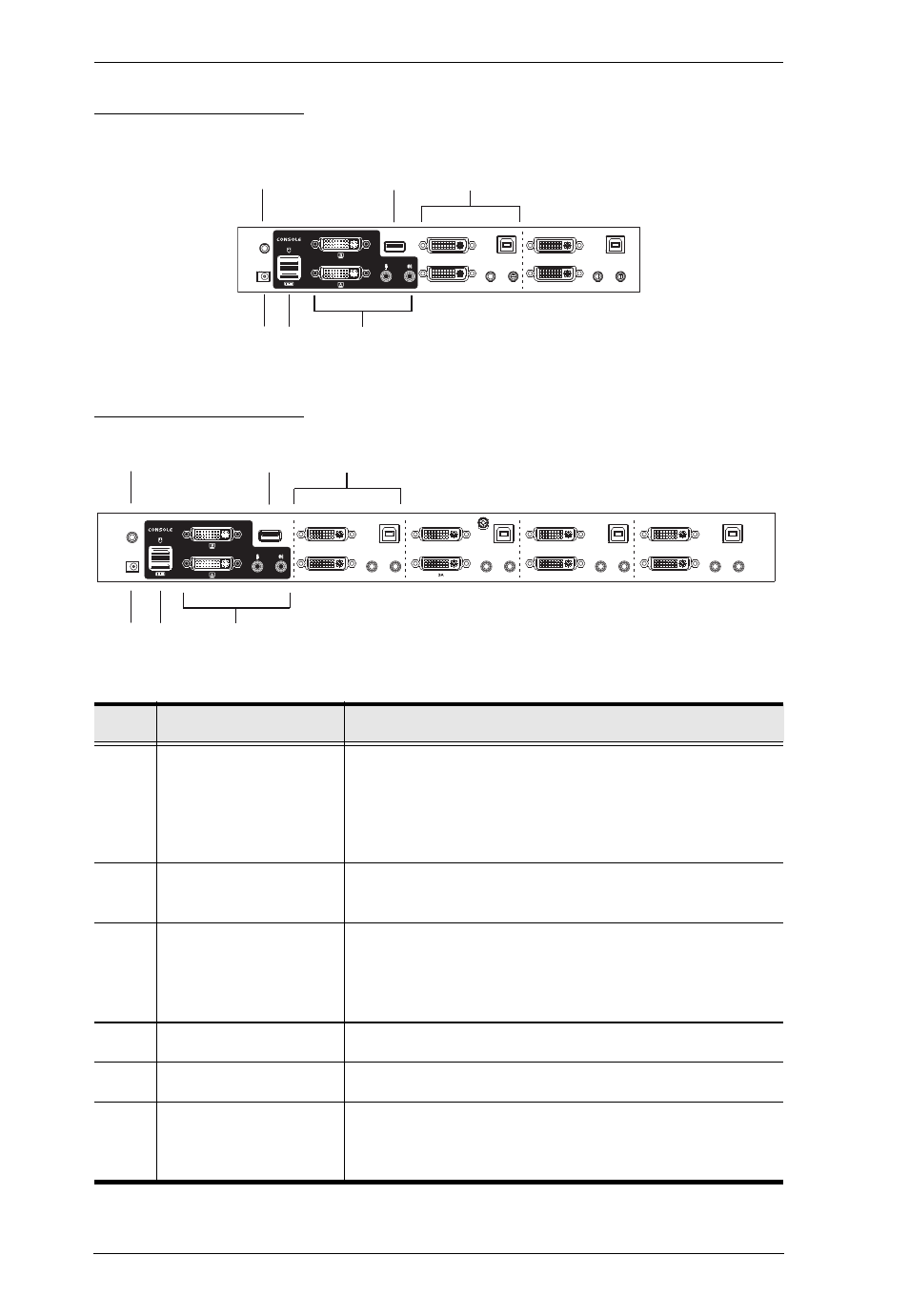

CS1642 Rear View
CS1644 Rear View
No. Component Description
1 Firmware Upgrade
Port The Firmware Upgrade Cable that transfers the
firmware upgrade data from the administrator’s
computer to the CS1642 / CS1644 plugs into this
connector. See The Firmware Upgrade Utility,
page 27, for details.
2 USB 2.0 Peripheral
Port USB 2.0 peripherals (printers, scanners, etc.) can
plug into this port.
3 KVM Port Section The cables that link the switch to your computers
plug in here. Each KVM port section is comprised of
a microphone jack, speaker jack, USB type B socket
and two DVI-I connectors
4 Power Jack The power adapter cable plugs into this jack.
5 USB Console Ports Your USB keyboard and USB mouse plug in here.
6 Console Port
Section The cables from your monitors, microphone, and
speakers plug in here. Each connector is marked
with an appropriate icon to indicate itself.
3 2 1
4 5 6
1 3
4 5
2
6
