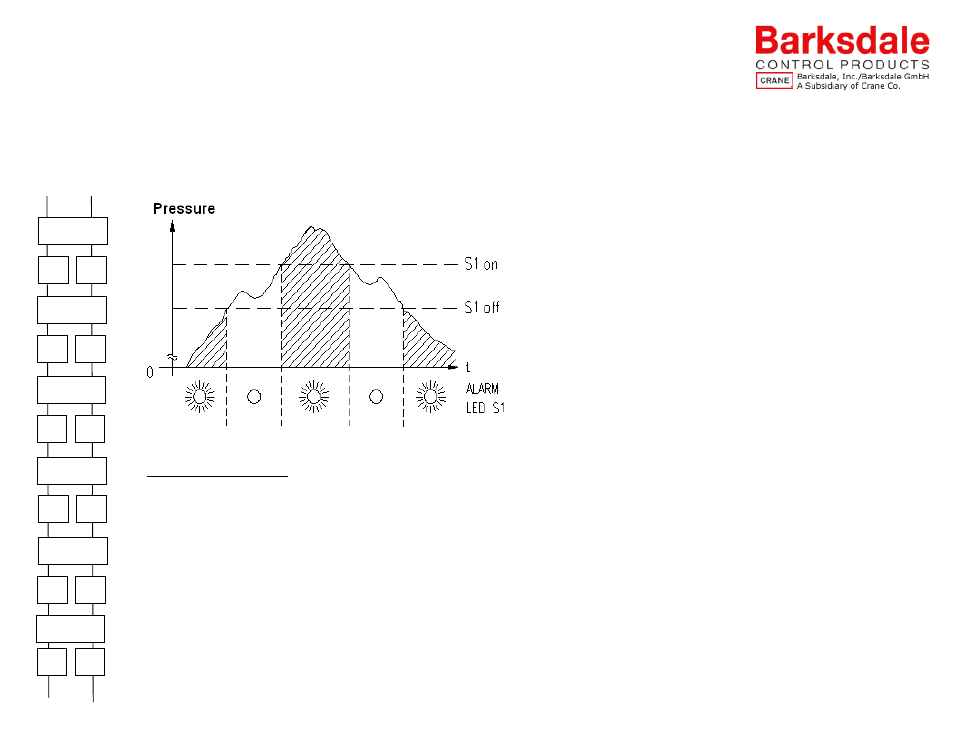

As shown in the diagram below, the above configuration will illuminate the S1 LED at any pressure
outside of the 400 to 500 psi range.
Setting Switch Point 2:
The function and programming of the second switch point SP2, is identical to SP1. The parameters for switch point 2 are SP2,
on2, OF2, dS2, dr2, and lu2. Since they are identical to switch point 1 in both function and programming, please refer to
“Setting Switch Point 1” for instructions.
▲
▼
SP2
on2
OF2
dS2
lu2
▲
▼
▲
▼
▲
▼
▲
▼
dr2
▲
▼
