Operating Instructions Electronic Dual Switch UDS7-BX

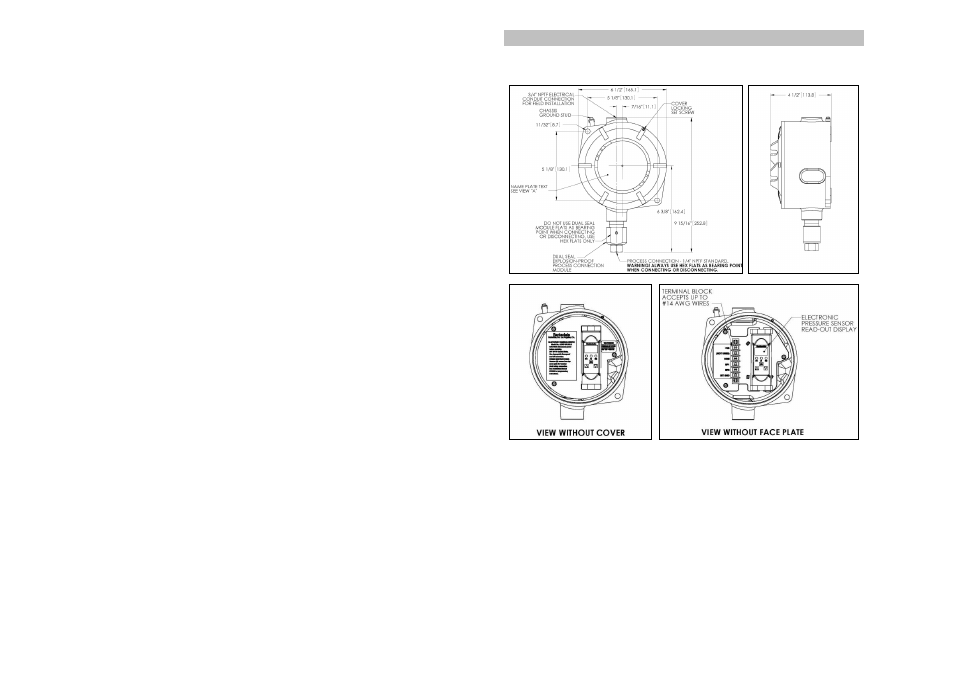

Dimensions
in [mm] UDS7-BX
1. Product description
Intended Applications
- This dual pressure switch is a device to monitor system pressure and two switching
outputs.
- This instrument should only be installed in systems where the maximum pressure (Pmax)
is not exceeded, according to the values on the type label.
-
Attention:
This device is not designed to be used as the only safety relevant element
in a pressurized system according to PED 97/23/EC.
2. Starting operations
Caution: To reduce the risk of ignition of hazardous atmospheres, disconnect the device from the
supply circuit before opening. Keep assembly tightly closed when in operation.
Only assemble or disassemble the device with no pressure applied!
