Barksdale BPS3000 User Manual
Operating instructions

10 Technical
Data
BPS3000
Measuring element
Ceramic sensor
optional: piezoresistive sensor
at 600 bar: piezoresistive sensor only
Measuring ranges
0 ... 0.2 bar to 0 ... 600 bar, 0 ... 3 psi to 0 ... 9000 psi, gauge pressure
0 …1 bar to 0 … 10 bar, 0 …15 psi to 0 … 150 psi, absolute
Display
4-digit 14-segment LED display, red, digit height 9 mm
Transistor switching outputs PNP
1 or 2 x NO/NC function (programmable),
adjustable switching time delay 0 ... 9.9 s
Operating temperature range
-10 ... +70 °C / +14 ... +158 °F
Media temperature range
-25 ... +100 °C / -13 ... +212 °F
Storage temperature range
-30 … +80°C / -22 … + 176 °F
Process connection
(fitting "A" without adapter)
G ¼" M, G ½" front-flush, 1/4" NPT, 1/2" NPT, 7/16 – 20 UNF, JIC 37° C,
7/16 SAE-4
Protection system/class
IP65/IP67/III NEMA 6
Electrical connection
Plug 4/5-pin, M 12x1
Auxiliary power
15... 32 V DC
For further technical data and options please refer to the data sheets

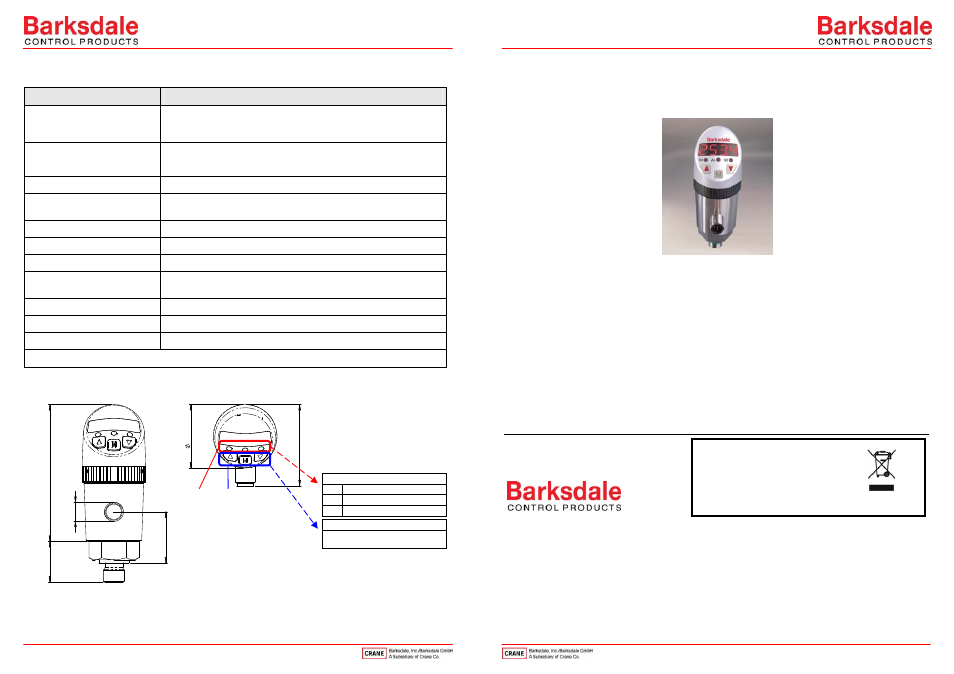

Operating and display elements/Dimensions
Operating Instructions
Dual Pressure Switch BPS3000
1
Intended Applications ................................................................................................... 2
2
Safety Instructions......................................................................................................... 2
3
Standards ....................................................................................................................... 3
4 Warranty/Guarantee....................................................................................................... 3
5
Installation ...................................................................................................................... 3
6
Commissioning/Operation ............................................................................................ 5
7
Programming.................................................................................................................. 5
7.1
Parameters ............................................................................................................. 6
7.2
Menu Structure ....................................................................................................... 8
8
Maintenance/Cleaning ................................................................................................. 11
9
Decommissioning ........................................................................................................ 11
10 Technical
Data ...............................................................................................................12
1
12
Art. no.: 923-1966
Index B, 23.05.2014
Software version: 1.2
Specifications are subject to changes without notice!
39.8
(1
.5
7
)
85.8
(3
.3
8
)
Dimensions (example) in mm (inch)
Item 1: LEDs
AL
(red) – Alarm
S1
(red) – switching point 1
S2
(red) – switching point 2
Item 2: Keys
For functions refer to chapter 7
"Programming" on page 5.
1
2
51
(2
.0
0
)
Appr
ox
25.4
(1
.0
0
)
M
1
2x1
32
(1
.2
6
)
