WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT
NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE
TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER
WALL SWITCH AND POSSIBLE FIRE COULD OCCUR.
Step 1. Remove the existing wall plate and switch from the wall outlet box.
Step 2. Make the electrical connections as shown in Fig.14. If your outlet box has
a ground wire (Green or Bare Copper) connect the Transmitter's ground wire
directly to one of the screws from the outlet box . Secure all wire connections
with the plastic wire nuts provided.

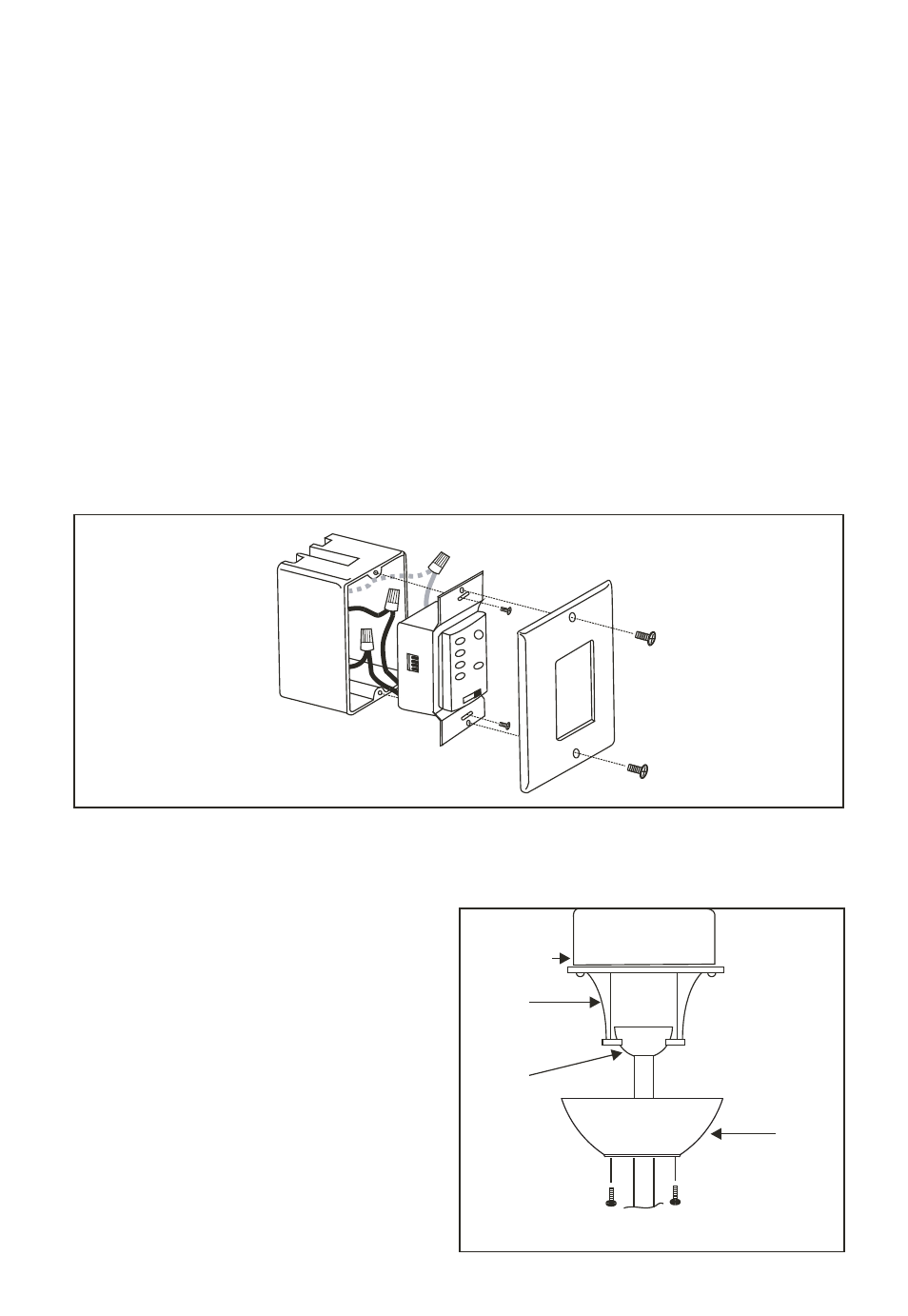

Step 3. Carefully tuck the wire connections inside the outlet box. Use the screws
provided to secure the wall transmitter and wall plate to the outlet box. (Fig. 15)
I
NSTALLING THE
W
ALL
T
RANSMITTER
6.
F
INISHING THE
I
NSTALLATION
7.
Fig. 16
Fig. 15
Outlet box
Hanger
bracket
Hanger
ball
Canopy
Step 1. Slide the canopy up to the
ceiling and over the two screws on
hanger bracket. Rotate canopy clockwise
until tight.
Note: adjust the canopy screws as
needed until the canopy is snug. (Fig.
16)
