INSTALLING THE LIGHT KIT
ASSEMBLY

Step1. Remove the light kit plate from the light kit assembly by removing three

screws from the rim of the light kit plate and reserve the screws.

Step2.Remove 1of 3screws from the mounting ring and loosen the other 2

screws.(Do not remove.) (Fig.17)

Step3.Place the key holes from the light kit plate over the 2 screws previously

loosened from the mounting ring , turn light kit plate until it locks in place at
the narrow section of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed.(Fig.17)

Step4.While holding the light kit assembly under your fan, firmly snap the wire

connection plugs together.(Fig.17)

Step5.Align the holes in the light kit assembly with the holes in the light kit plate.

Tighten the three screws removed in step1.(Fig. 17)

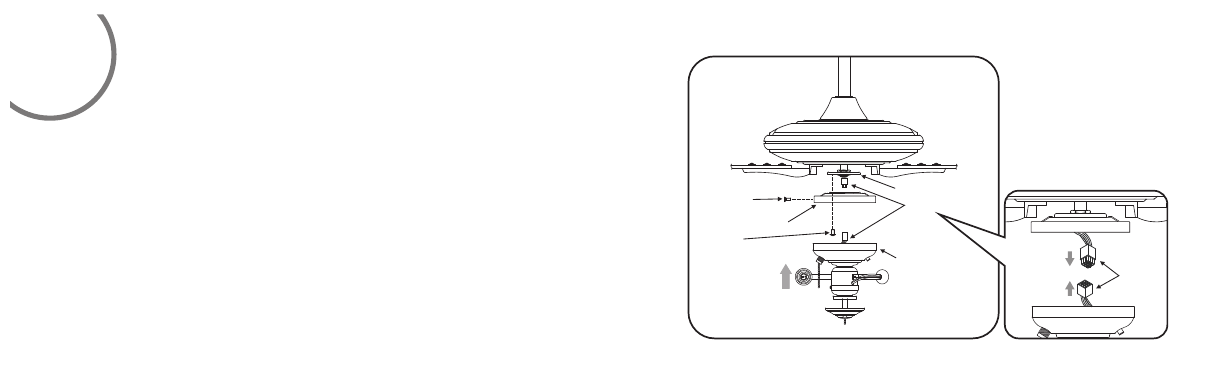

Fig. 17

Mounting ring

Screw

Light kit plate

Light kit
assembly

Screw

Connection plug

Connection plug
