Installation
MKE Series Electric Griddle
L20-369 REV. 2 (05/12) 6
1/2" BOLTS (4)
BRACKET (2)
MOUNT FLUSH
TO FRONT
(SUPPLIED)
(SUPPLIED)
NUTS & BOLTS
INCLUDED
WITH STAND
REAR

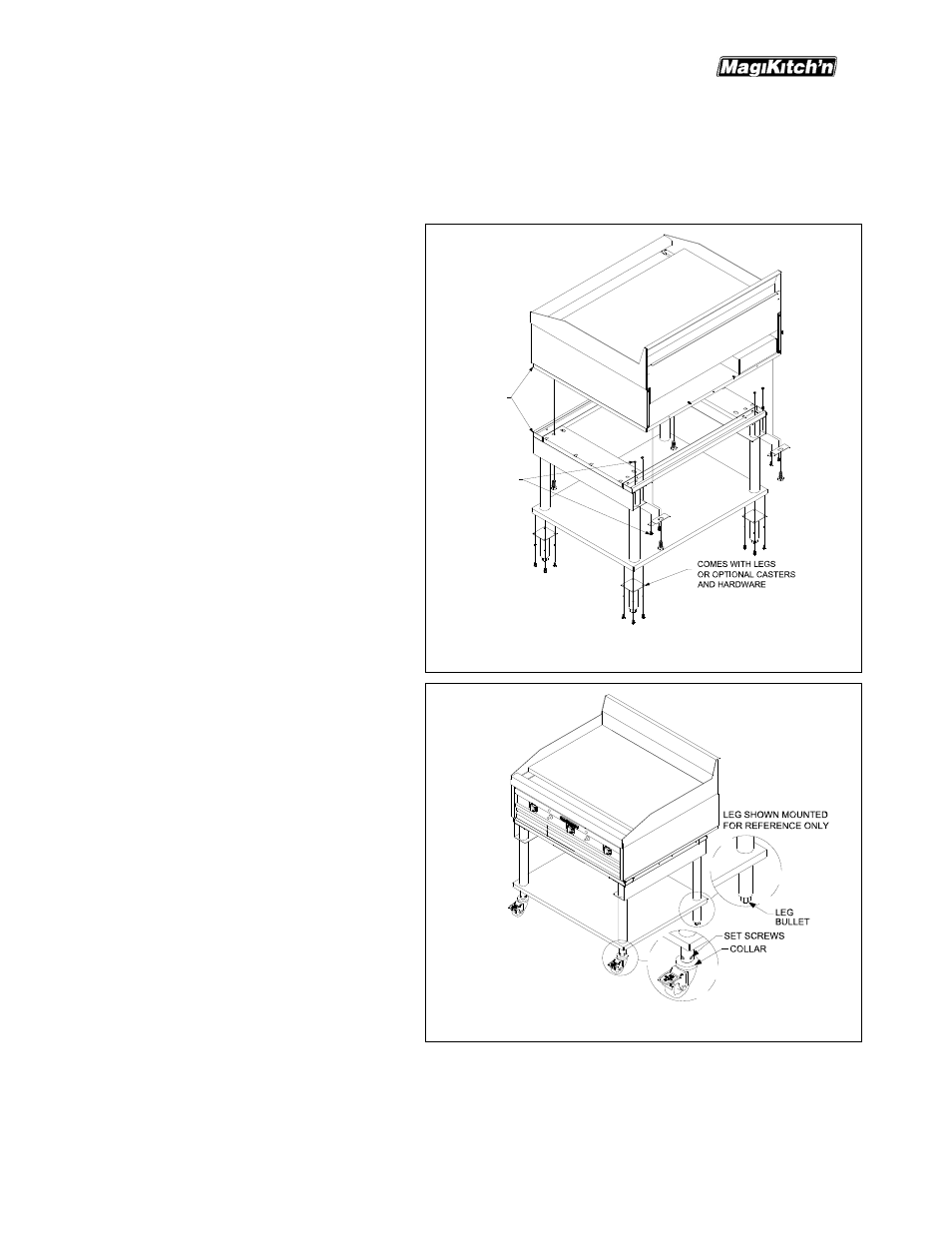

Figure 4
NOTICE
The larger units have 6 threaded receiving holes, but require only the four 1/2" bolts on each corner to
mount the griddle.
1. Remove (4) existing 1/4-20 nuts and bolts from the rear corners of the equipment stand.
2. Align the 2 bolt holes on the rear corners of the stand with the 2 bolt holes on the rear mounting brackets.
Orient the brackets as shown in Figure #4
on this page.
3. Install the provided rear mounting brackets
(2) to the rear corners by using the existing
1/4-20 hardware that were removed in step
1, tighten securely.
4. Carefully place the griddle on the
equipment stand.
5. Position the griddle so that the front edge of
the base is flush with the front of the
equipment stand. If the griddle is the only
appliance to be mounted on the stand, then
both sides of the griddle should be flush
with the sides of the equipment stand.
6. When positioned properly, the threaded
receiving holes in the griddle base should
be aligned with mating clearance holes at
the front of the equipment stand, and with
the clearance holes in the rear mounting
brackets. Install the provided 1/2" bolts and
tighten securely.
1.3.4. Leveling Instructions
NOTICE
Equipment stands are shipped from the
factory with the legs or casters set to “Zero”.
Units should be leveled at time of
installation, failure to do so could cause the
griddle to operate improperly.
1. Identify the end or corner of the stand that
needs to be raised, remove the weight load
from the caster or leg to be leveled.
2. Legs- using a wrench, or pliers turn the leg
bullet, See Figure 5, CCW to raise the
height of the equipment stand. There is ½”
to ¾” (1.3 – 1.9 cm) of adjustment.
Casters- (For Stands shipped after May
2006) Using a Flat Head screwdriver,
loosen the set screws of the caster to be
leveled, See Figure 5.Turn the collar of the
caster CCW to raise the height of the
equipment stand. There is ½” to ¾” (1.3 –
1.9 cm) of adjustment.
After leveling adjustment is complete, re-
tighten set screws.
3. Repeat Step 2 for legs or casters that require leveling.
4. Check the levelness of the equipment, if necessary Repeat steps 1, 2, and 3.
Figure 5
