NaceCare Solutions TP18SX - Manual (Page 2)

2

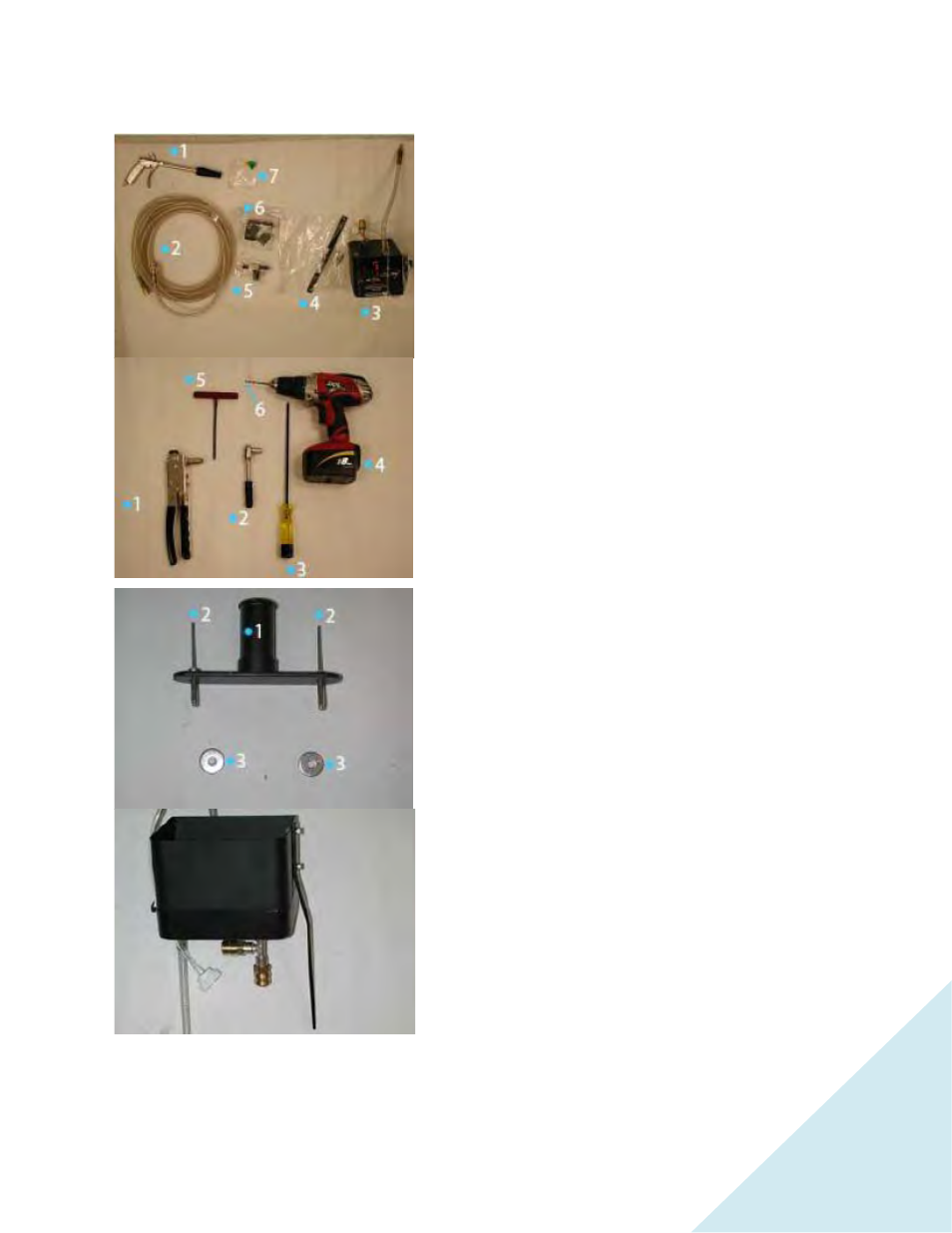

Kit consists of:
1. Gun
2. Pre-spray Hose
3. Chemical dispensing system
4. Chemical box bracket and hardware
5. Hose holder mounting bracket and hardware
6. Hose holder
7. Low Moisture Jets for wand and hand tool
Tools Needed
1. Rivet gun*
2. 10mm Socket or Wrench
3. Long shank Philips
Screwdriver
4. Electric or Cordless Drill*
5. 5mm Allen Wrench
6. 1/8” Drill Bit*
* = If your machine does not have the bracket
shown in the next picture.
Mounting Bracket hardware consists of:
1. One bracket
2. Two Rivets
3. Two Washers
Required: Chemical Dispensing system and the
Chemical box bracket.
Attach chemical box bracket to chemical
dispensing system
with 5mm Allen bolts and 10mm nuts as shown
