14 15
MUTE
AF MUTE
AF INPUT

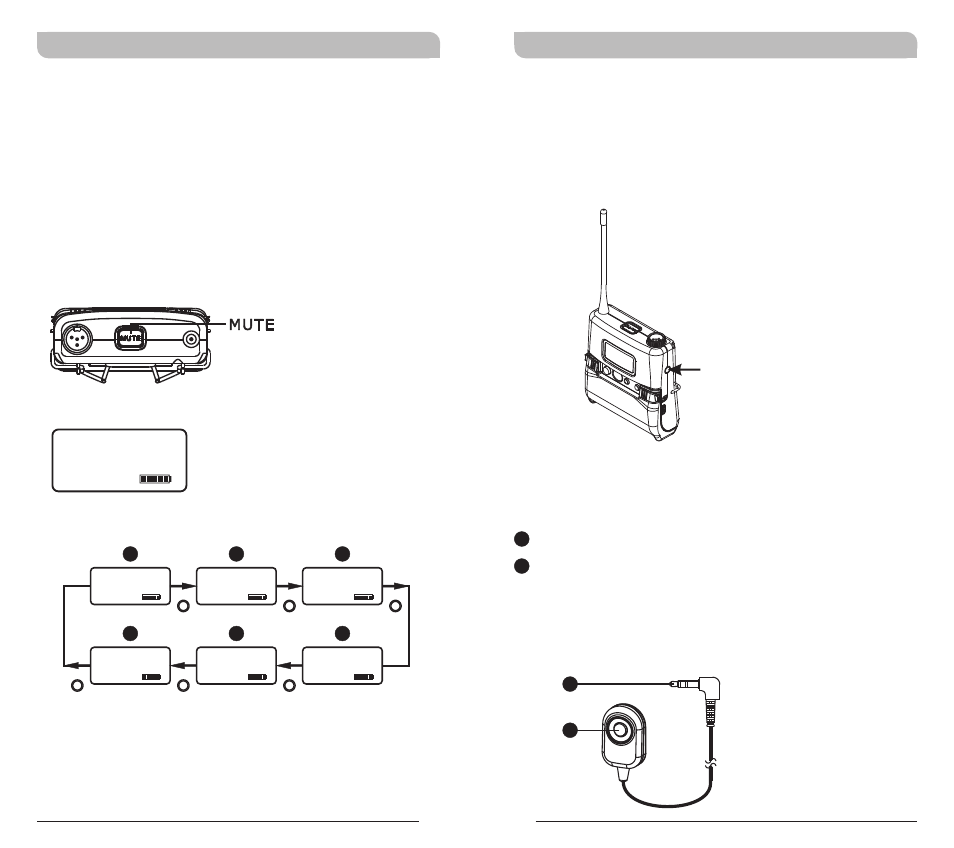

Setting MUTE
! Press MUTE button to enter MUTE mode.
! Under MUTE mode, press MUTE button to exit
MUTE mode.
! MUTE button is operable when SET LOCK mode
is LOCK.
! MUTE button is operable when MUTE MODE is
set in MANUAL mode.
AF MUTE AF MUTE
MANUAL
MUTE MODE
MODE MODE MODE
E F
AF MUTE
RF-LOW
RF POWER
D
AF MUTE AF MUTE
775.275
MHz
FREQUENCY
0 dB
AF GAIN
MODE MODE MODE
A B C
UNLOCK
SET LOCK
AF MUTE
01 01
GRP CH
External mute connector
External Mute Connector
MJ-70 External Mute Switch (optional)
! External mute connector is a 3.5mm jack. When
an external mute switch cable, MJ-70 (optional)
is connected, user can manually mute and un-
mute the audio temporary.
3.5mm jack.
External mute switch on/off button.
NOTE: Plug in the device before power on the
bodypack transmitter.
B1
B2
B1
B2
