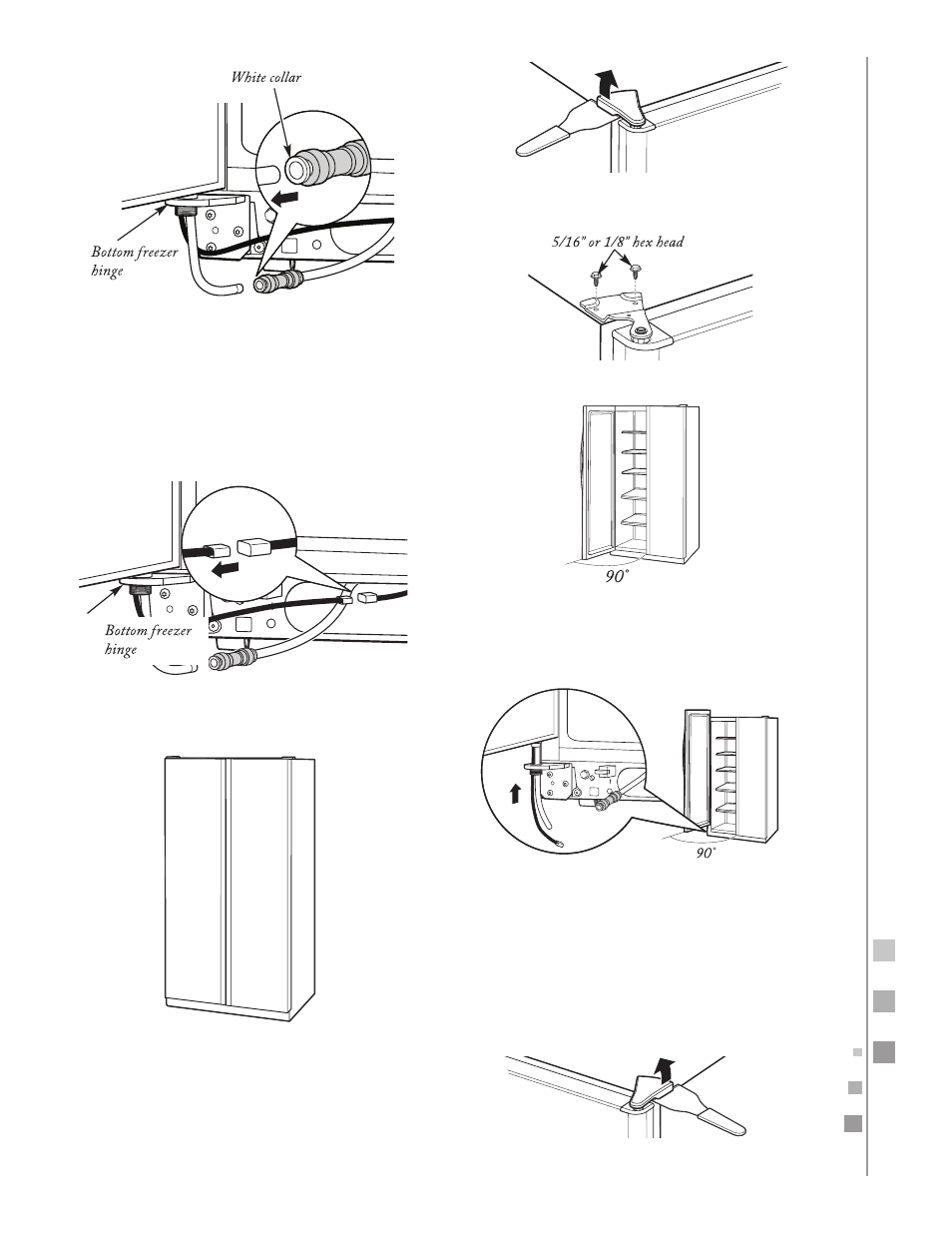

4. Disconnect the power coupling
(on some models)
If the refrigerator has a water dispenser, there is a power line
(harness) from the cabinet into the bottom hinge on the
freezer door that must be disconnected�
To disconnect, pull apart at the coupling�
5. Close the freezer and refrigerator doors.
6. Remove the freezer door.
• Remove the freezer door top hinge cover (if equipped)
by either squeezing it and pulling it up or by prying it
off with a plastic putty knife�
• Remove the two 5/16” or 1/8” hex headscrews, then lift
the hinge straight up to release the hinge pin�
• Open the freezer door to 90°�
• As one person slowly lifts the freezer door up and off
the bottom hinge, the second person should carefully
guide the waterline and power line (harness) through
the bottom hinge�
• Set the door on a non-scratching surface with the
inside up�
7. Remove the refrigerator door
• Remove the refrigerator door top hinge cover (if
equipped) by either squeezing it and pulling it up or by
prying it off with a plastic putty knife�
