DiGiCo Little Boxes
1-12
2.1.7 SD8 and SD9 Sharing a D-Rack and a MADIRack .............
In this example, the SD9 acts as analogue gain controller for the D-Rack and the SD8 acts as analogue gain controller for the MADIRack.
Both consoles receive a Receive Only "split" from the other console's D-Rack.
One of the consoles should be Audio Sync Master and the other should be set to external Audio Sync from the incoming MADI or CAT5e
port from the Little Blue Box.
Please see section 1.1.5 Full Connect and Receive Only for Rack Sharing for details of other console settings.
SD9 - Audio Master Off (Grey) - Rack Sharing OFF for D-Rack - Rack Sharing ON for MaDiRack - Sharing mode is Receive Only
SD8 - Audio Master Off (Grey) - Rack Sharing OFF for MaDiRack - Rack Sharing ON for D-Rack - Sharing mode is Receive Only.

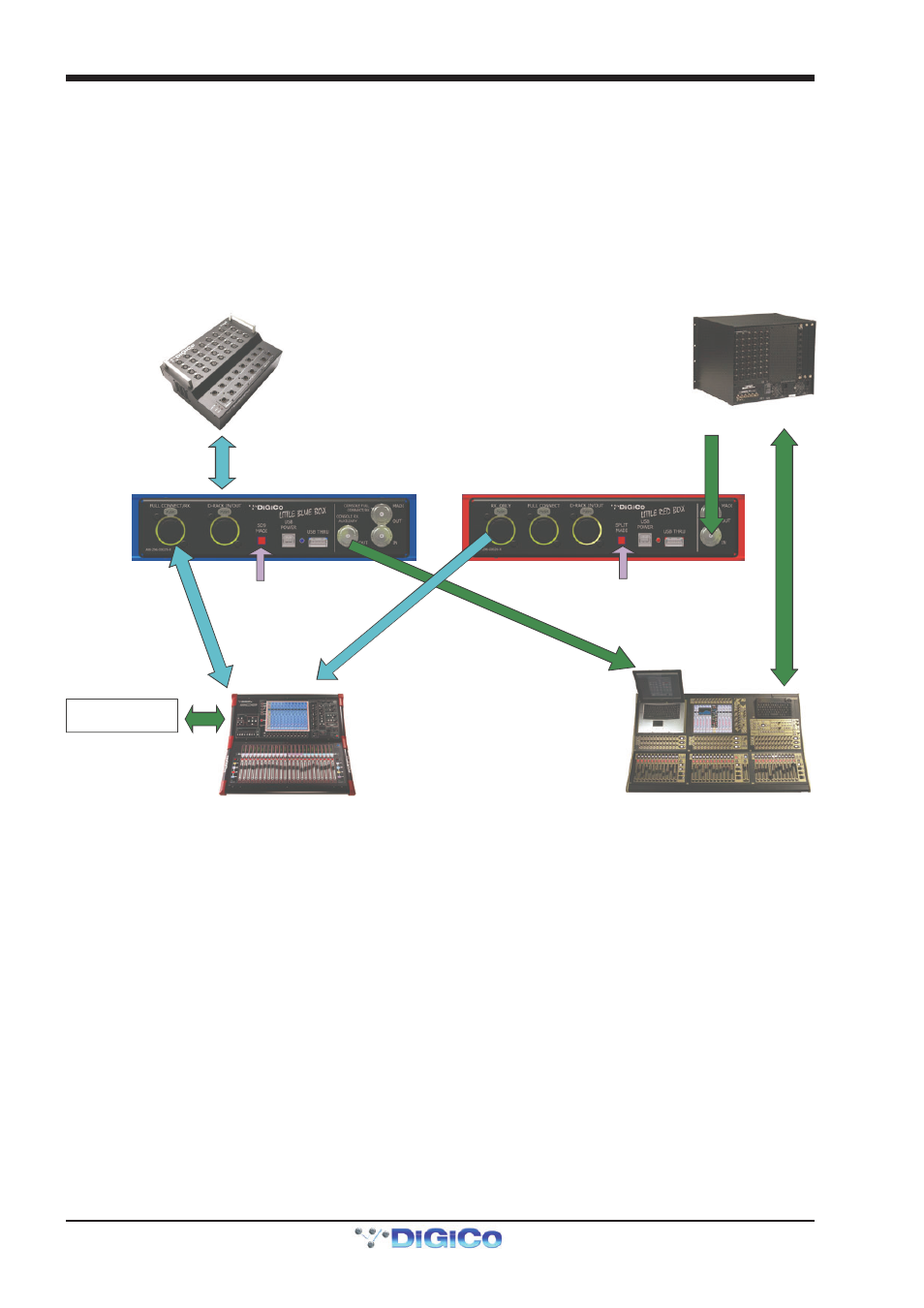

Little Blue Box and Little Red Box together
SD8 & SD9 share 80 inputs from a MADIRack and D-Rack – SD9 Recording both Racks
D-Rack
Multitrack
Full Gain Control MADIRack
Receive Only D-Rack
Full Gain Control D-Rack
Receive Only MADIRack
MAIN IN/OUT AUX OUT
SD9 Mode MADI Mode
MADIRack
External Audio Sync
from MADI 2 Port Input
Audio Sync = Master
MADI 2
MADI 1 CAT5 #1 CAT5 #2
