1.3 Ports
1.3.1 Compact FLASH Slot
The EPC industrial PC is standardly equipped with a Compact FLASH
slot according to CFA standards (Type 1).

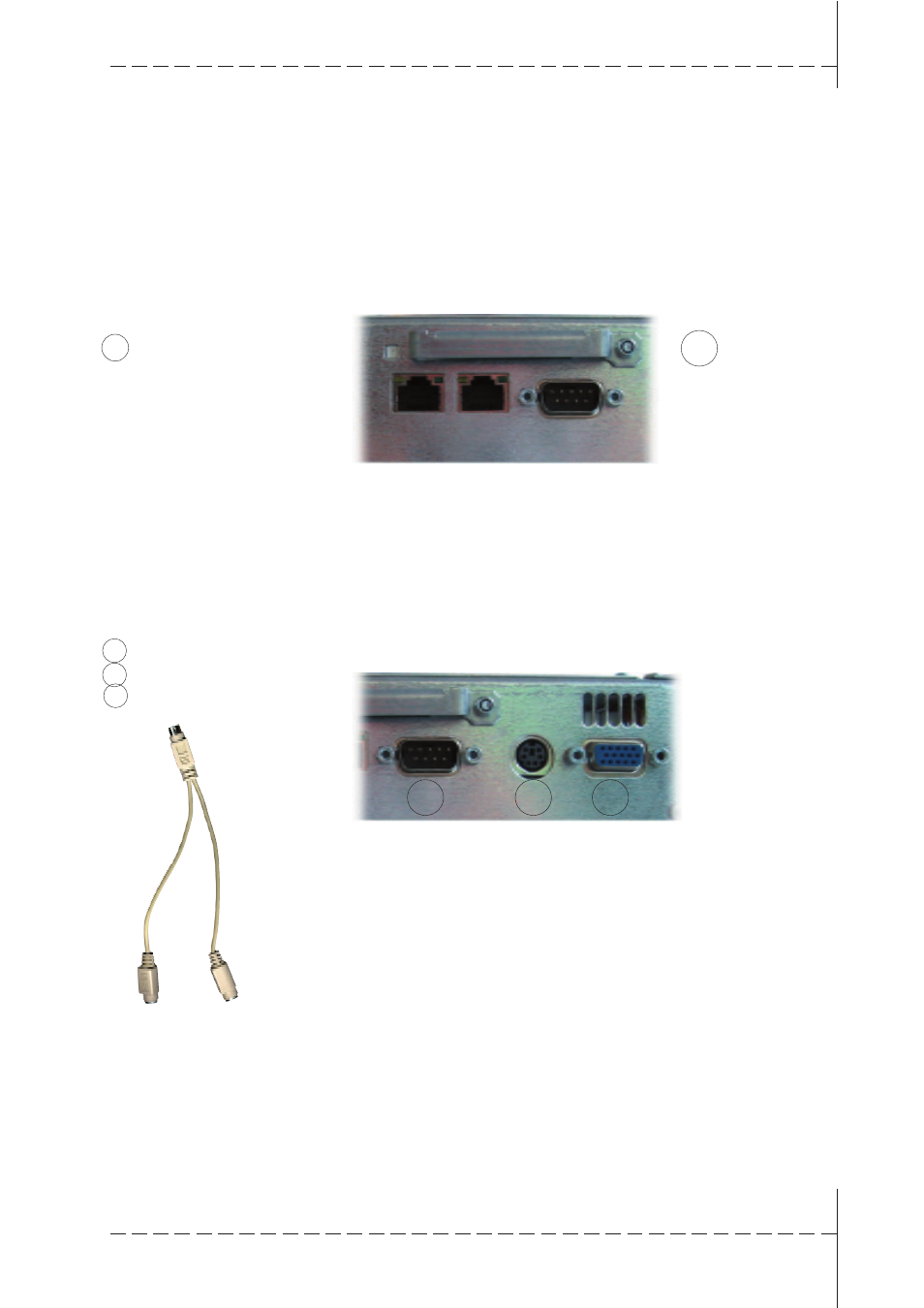

Position of the Compact FLASH slot
1 Captive screw
Warning!
In connection with the EPC, only Compact FLASH cards from the
company SANDISK may be used.
Do not replace the Compact FLASH card unless the PC is switched
off!
1.3.2 VGA-/COM1-/PS/2 port
1 VGA port
2 COM 1
3 PS/2 mouse/keyboard
The debug port is designed as a serial port for all standard embedded
PCs.
This port can be configured as a debug port to support program
development.
Warning!
The COM 1 port is only available if it is activated by software.
The serial port is standardly assigned according to the PC XT/AT!
PS2 adapter cable for mouse and keyboard
Warning!
Do not remove the PS/2 mouse and PS/2 keyboard unless the PC is
switched off.
Otherwise, the operating system will not detect these input devices!
