0-11
1
2
230 VAC
+ 24 V
230 VAC
0 V
24 V DC
2 Start-up
2.1 Power supply
Warning!
Only operate the embedded PC using protective extra-low voltage
according to EN60950!
The transformer must meet the EN60742 standard!
Check the power supply to ensure it corresponds to the type plate.
Prior to system start-up, check all cable connections.
Make sure that all voltages and signals meet the relevant
specifications.
The 0V supply voltage connection to the housing (earth) is a low-
impedance connection.

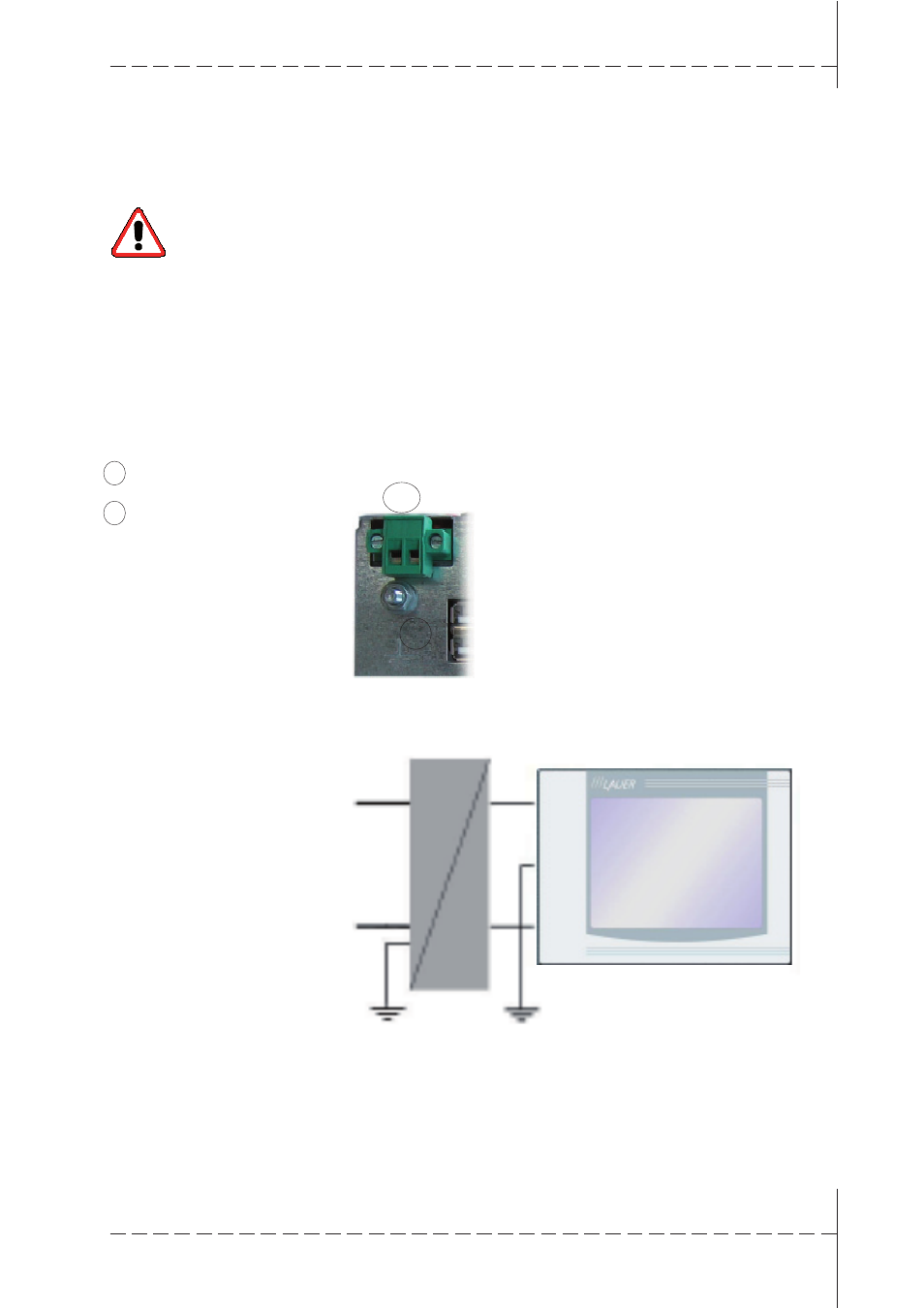

1 24V voltage supply
2 Earth screw
The power supply is provided by means of a two-pronged plug-in
connector (Phoenix MST BT 2,5/2).
Power supply arrangement
