Track Rack
*Tools Needed for Installation
9/16” wrench/socket
¾” wrench/socket, qty. 2
3/8” masonry bit
Tape measure
Drill (hammer drill recommended)
Hammer
Level

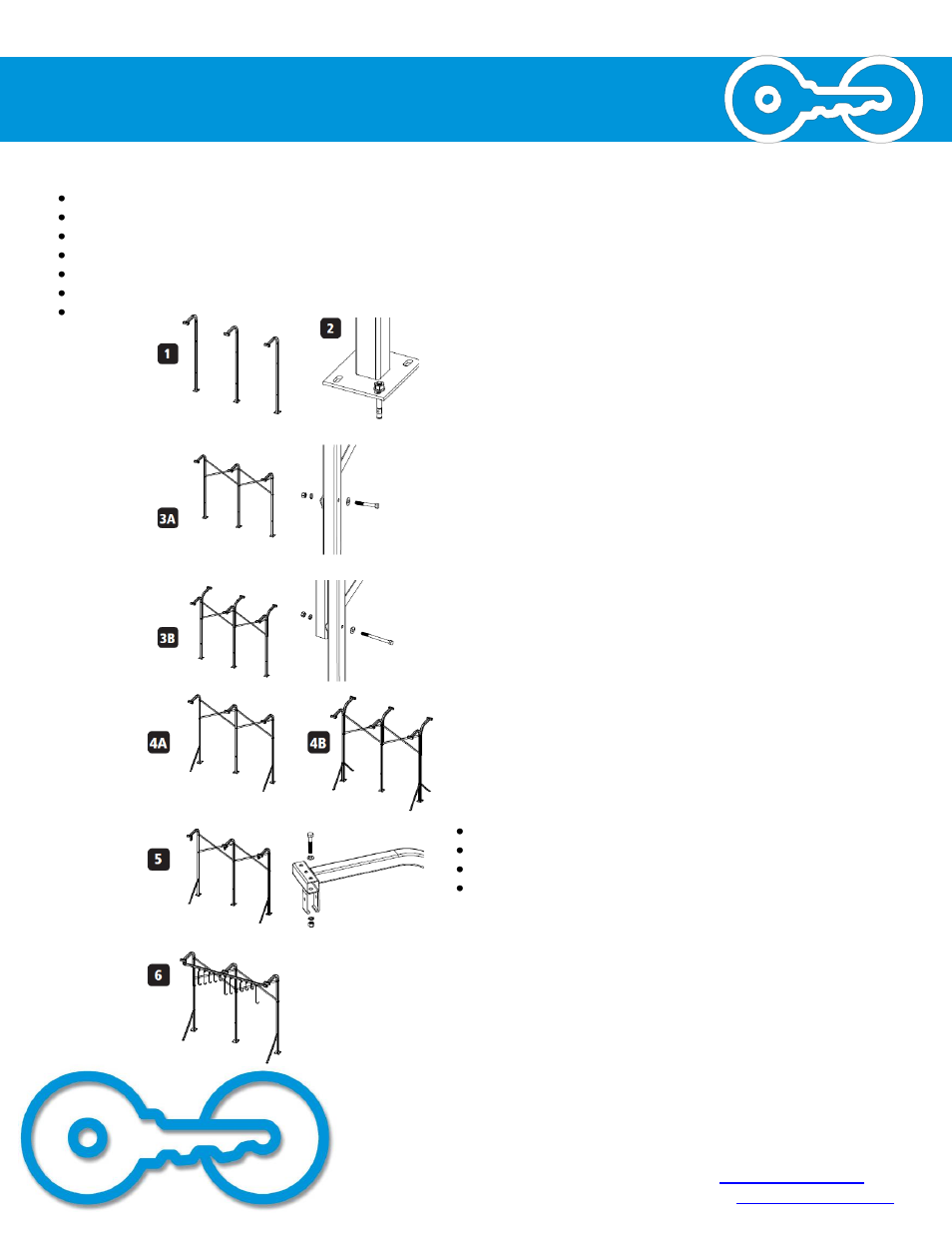

Installation Instructions – Floor Mount
Installation Steps
Before installing: Make sure the floor is
strong enough to accommodate the rack fully
loaded with bikes. Compare parts shipped
with rack to parts list. Call ABSCo if any parts
are missing.
1. Place the Uprights 48” apart from each other. See
your rack layout for location and numbers.
2. Anchor each Upright by drilling 3/8” holes and
fastening with wedge anchors.
3. A) For single-sided units, fasten the Upright Braces
to the Uprights with 3/8” x 3” bolts, 3/8” washers,
3/8” lock washers, and 3/8” nuts.
B) For double-sided units, fasten the Double-sided
Uprights
and Upright Braces to the Uprights with 3/8” x 3”
bolts, 3/8” washers, 3/8” lock washers, and 3/8”
nuts.
4. A) For single-sided units, attach Knee Braces to the
first Upright and then every other Upright with 3/8”
x 3” bolts, 3/8” washers, 3/8” lock washers, and
3/8” nuts. Anchor each Knee Brace by drilling a 3/8”
hole and fastening with a wedge anchor.
B) For double-sided units, attach (2) Knee Braces to
the first Upright and then every other Upright with
3/8” x 3” bolts, 3/8” washers, 3/8” lock washers,
and 3/8” nuts. Anchor each Knee Brace by drilling a
3/8” hole and fastening with a wedge anchor.
5. Fasten the Channel Supports to the uprights with ½”
x 3” bolts, ½” washers, ½” lock washers, and ½”
nuts.
Use the following Channel support mounting
locations:
1st Upright, use right hole.
2nd Upright, use center hole.
3rd Upright, use left hole.
For modular units each 3rd Upright will have a
Channel
Support at the left and right holes.
6. Insert the Track Rack or Bike File assembly into the
Channel Supports and secure. See Track Rack or
Bike File instructions for more detail.
