Bike File
*Tools Needed for Installation
9/16” Wrench/Socket
3/4” Wrench/Socket
1/4” Drill Bit or 3/8” Masonry Drill Bit (depending
on anchor type)
Tape Measure
Drill (Hammer Drill Recommended)
Hammer
Level
Saw for cutting rack
Installation Steps:
Floor Mount – Installation
Installation Steps:
Before installing, Make sure the wall is strong enough to accommodate
the rack fully loaded with bikes. Compare parts shipped with rack to
parts list. Call us if any parts are missing.

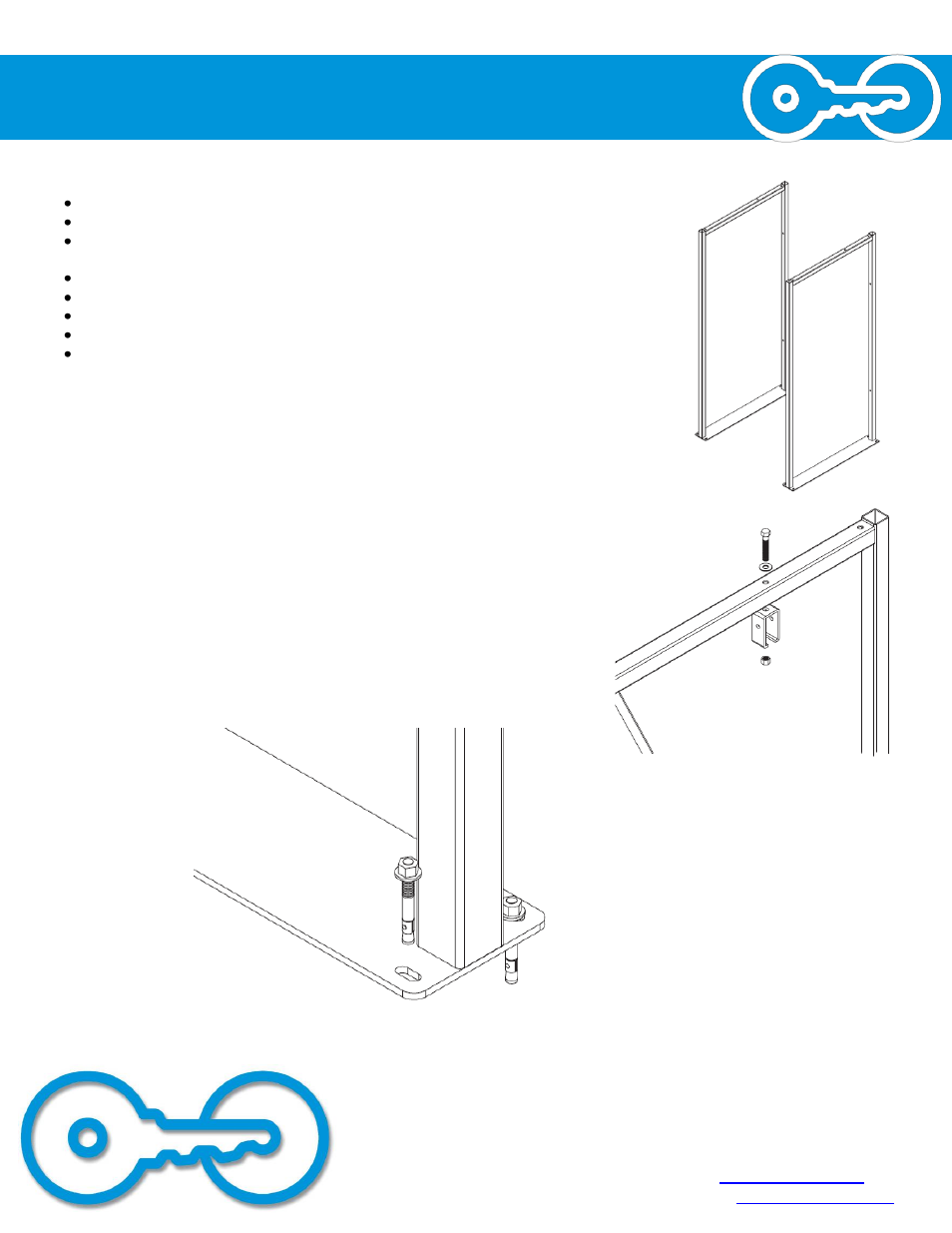

1.
Stand the (2) uprights parallel to each other and 48” apart
2.
Attach the Bike File to the Floor Mount assembly by securing
the Channel Trolley Supports to the uprights with ½” x 3” bolts.
3.
Follow the installation instructions for the basic Bike File unit
to complete the assembly.
4.
Position Single-sided Floor Mount Assembly and anchor
the uprights to the floor with the appropriate anchors.
1.
2.
3.
