Yorkville PSA2S - Manual (Page 4)

# Part# Description qty

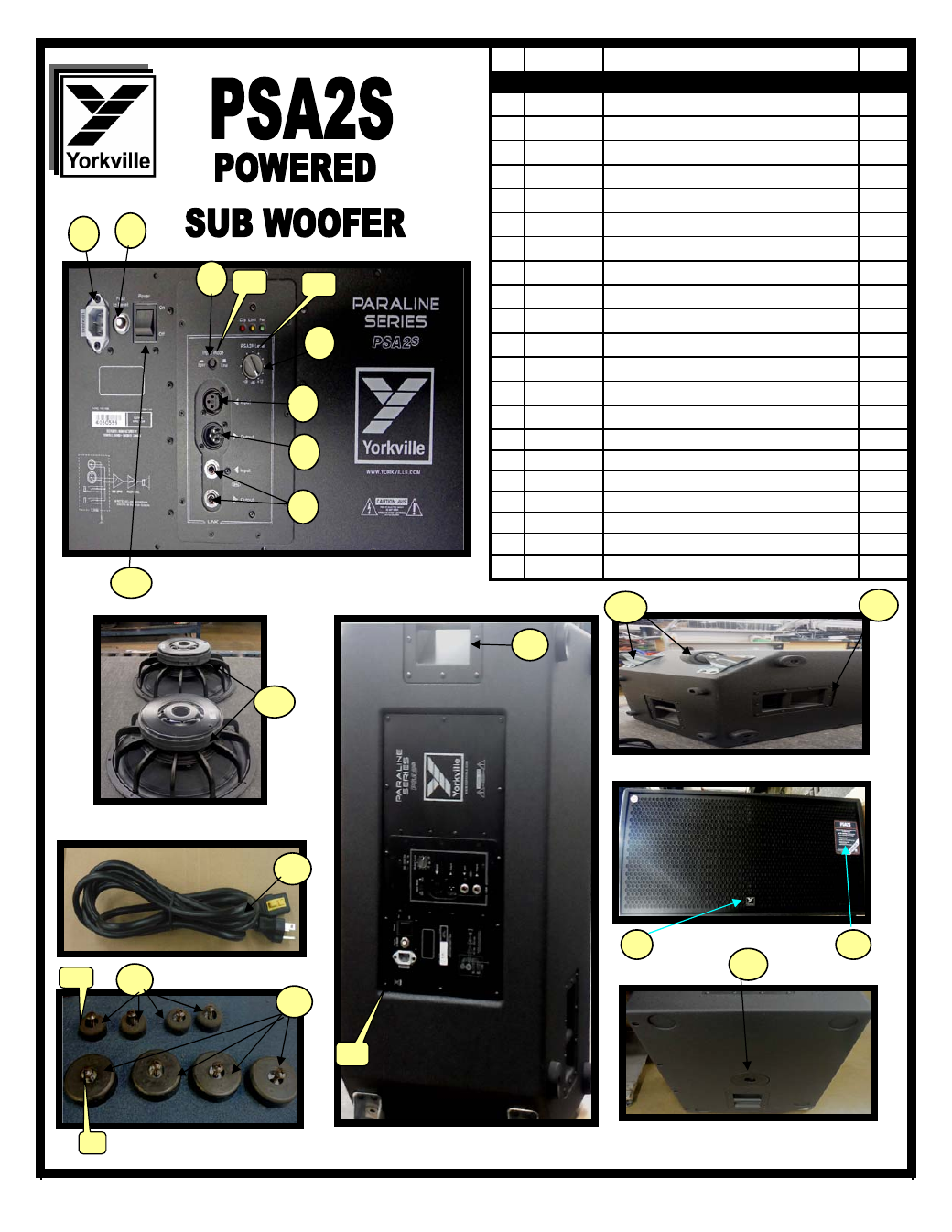

Labeled Components
1
4063 1/4IN ISO JCK PCMT VT STER RT SWT
2
2
4100 XLR MALE PCB MT VERT
1
3
4010 XLR FEML PCB MT VERT 24MM AA-SERIES
1
4
3522 DPDT MINI PC VERT SNP ALT
1
5
8637 ROUND PUSH BUTTON 1/4" BLK 24MM
1
6
2339 _10K B LIN 12MM DUAL 21DET P34 1
7
9014 KNOB LS901 POINTER AT 9-O'CLOCK 1
8
4088 RECEPTACLE:V-LOCK INLET
1
9
3606 12.00 AMP CIRCUIT BREAKER 1
10
3585 DPST ROKR SW QUIK 250" AC/PWR IEC6 1
11
7447 15" 8R 1000WPGM SPEAKER
2
12
3074 POWER CORD 3M V-LOCK (N.A) 1
13
8545
RECESSED RUBBER BUMPER WITH WASHER
4
14
8529 RUBBER FOOT 65 X 20MM
4
15 9401SS #10 X 3/4 SS PAN PH TYPE A BO&W 54
16 9419SS 1/4-20X11/4 SS TRUSS PH MS B.O.&WAX 16
17 8551 BAR HANDLE RIGHT ANGLE TOP LOAD 1
18 8565
BAR HANDLE ALL METAL RECTANGULAR
3
19 9170 STAND ADAPTER CAST 1
20 8206 YORKVILLE LOGO METALPHOTO 1
21
POPLABEL 4"X5" POLYJET LABEL W/PERM ADHESIVE
1
10
3
1
2
12
14
4
19
6
5 7
8
9
11
17
13
15
16
15
175 18
20 21
Service-PSA2S QuickGuide July 2014
