3

The éXcursion1000 System

The Yorkville

éXcursion1000 system is shipped in two cartons. The main carton contains the

éXcursion1000 main unit (subwoofer w/amplification) and the dolly. The hold-down strap is used

to secure the dolly and the subwoofer together for shipping. The second carton contains the 2

éXcursion1000 satellites, 4 metal casters, the power cord and these operating instructions.

Carton 1

• 1

éXcursion1000 main unit (subwoofer w/amplification)

• 1 transportation dolly
• 1 power cord
• Operating instructions

Carton 2

• 2

éXcursion1000 satellite speaker cabinets

• 4 swivel casters (YS#8592)
• 2 SP4-25SS/18 25’ 4X18 Gauge Speakon™ to Speakon™

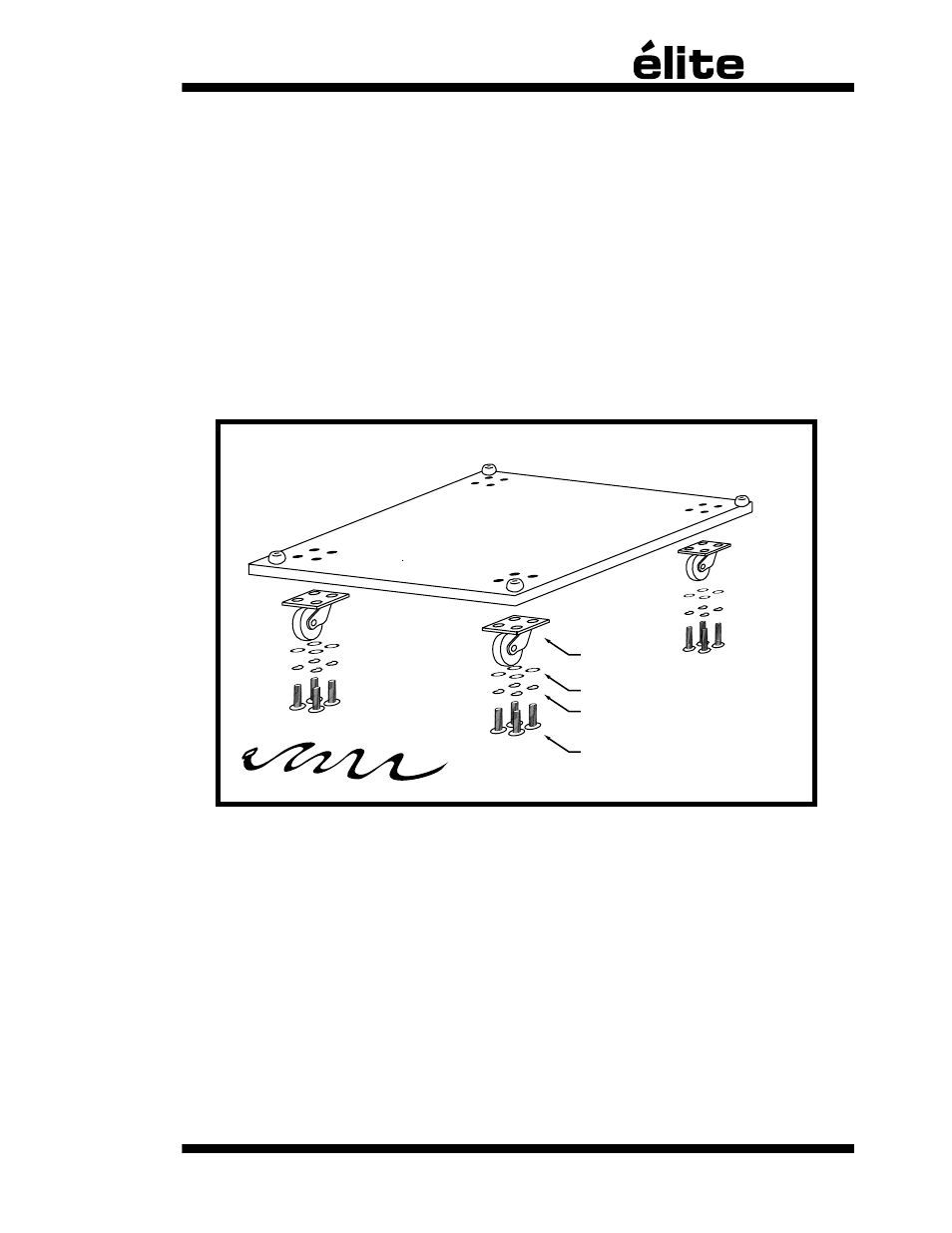

Some Assembly Required

The bolts provided to attach the casters on the dolly have been conveniently screwed into the dolly.

This allows you to find the mounting holes and prevents the bolts from being lost in shipping.

When installing Swivel Casters follow the sequence shown in the assembly diagram above. Place

the

split lock-washer (YS# 8489) between the bolt (YS# 8936) and the flat washer (YS# 8817).

Following this sequence will assure proper assembly.

- 4x YS# 8592 - Swivel Casters
- 16x YS# 8817 - Flat Washers
- 16x YS# 8489 - Split Lock-Washers
- 16x YS# 8936 - Flat Bolts

YS# 8489 - Split Lock-Washer

YS# 8936 - Bolts

YS# 8817 - Washer

YS# 8440 - Velcro™ Strap

YS# 8592
Swivel Caster
