Yorkville NX720S - Manual (Page 10)

# Part# Description

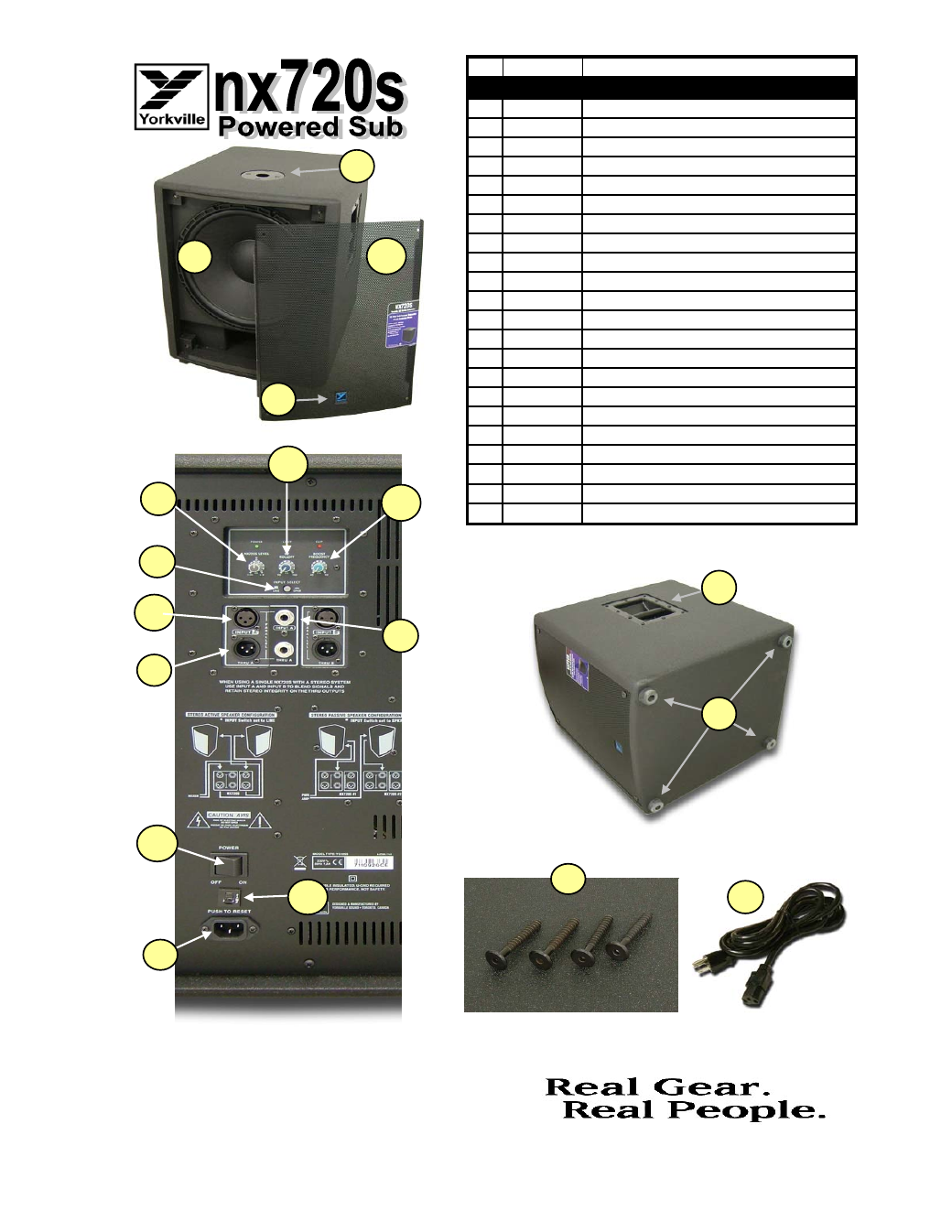

Labeled Components
1 7471 15" 8R 1000WPRGM 3"V.C. NEO SPE
2 Z905* NX720S GRILL
3 8240D LOGO YORKVILLE SMALL BLUE
4 8483 ADAPTOR,SPEAKER STAND,METAL,BLA
5 8565 BAR HANDLE ALL METAL RECTANGULA
6 8545 RECESSED RUBBER BUMPER WITH WAS
7 9916 KNOB 0-DEG GRY SOFT GRAY
8 9918 KNOB 0-DEG BLU SOFT GRAY
9 9917 KNOB 0-DEG GRN SOFT GRAY
10 8632 KNOB ROUND PUSHBUTTON 1/4" GREY
11 3925 XLR FEML PCB MT VERT 24MM U-CO
12 3453 XLR MALE PCB MT VERT
13 3921 1/4" JCK PCB MT VERT STER RT SW
14 3585 DPDT ROKR SW QUIK 250" AC/PWR I
15 2398 4.0 AMP CIRCUIT BREAKER
16 3645 AC SOCKET RECEPTACLE WITH 0.250
17 8906 #14X2 ALLEN FLAT HD WOOD SCRW J
18 3426 8' 3/16 SJT AC LINE CORD REMOVB
19
20
21
22
*NOTE: Replacement grilles are 'Special-Order' and are only available while the model is in production.
4
1 2
11
18
13
17
12
5
3
6
7
8
9
10
15
16
14
SERVICE-QuickGuide-nx720s-00-1v0.xls ftp.yorkville.com Speaker Enclosure
