Vaddio Quick-Connect DVI-HDMI SR User Manual

Page 6

Quick-Connect DVI/HDMI - SR Interface

Quick-Connect DVI/HDMI – SR Interface Key Features:

• Integrated Design for use with the HD-18: The Quick-Connect DVI/HDMI and the HD-18 both

use high speed differential signaling (HSDS) for transmission of high definition video (up to
1080p)/60 and IR signals over Category 5 cabling. Video, Power and Control is conveyed using
only two Category 5 cables.

• Simultaneous Analog and Digital Outputs: The Quick-Connect DVI/HDMI is equipped with

both Analog (YPbPr) and Digital video outputs (DVI-D or HDMI with optional DVI-D to HDMI
adapter cable) to allow the flexibility in system design demanded by today’s best integrators.

• Daisy Chain Control Emulation - DCCE: The Quick-Connect DVI/HDMI provides for daisy

chain type control wiring, where all the wiring is done at the interface, which is perfect for use with
single control port video systems.

• IR Forwarding Feature: The IR Forwarding feature allows IR signals from Polycom® and

TANDBERG® remotes to be sent through the HD-18 to the codec’s IR interface or IR window
allowing for camera placement and system design freedom.

•

No Scaler On-Board:

The Quick-Connect DVI/HDMI - SR Interface does not have an internal

scaler and will not interfere with the video signal coming out of the camera. Resolutions are set
at the camera and the Quick-Connect DVI/HDMI passes through that resolution

• Designed and Manufactured in the USA

Made in the greater Minneapolis/St. Paul

metropolitan area, New Hope, Minnesota, USA.

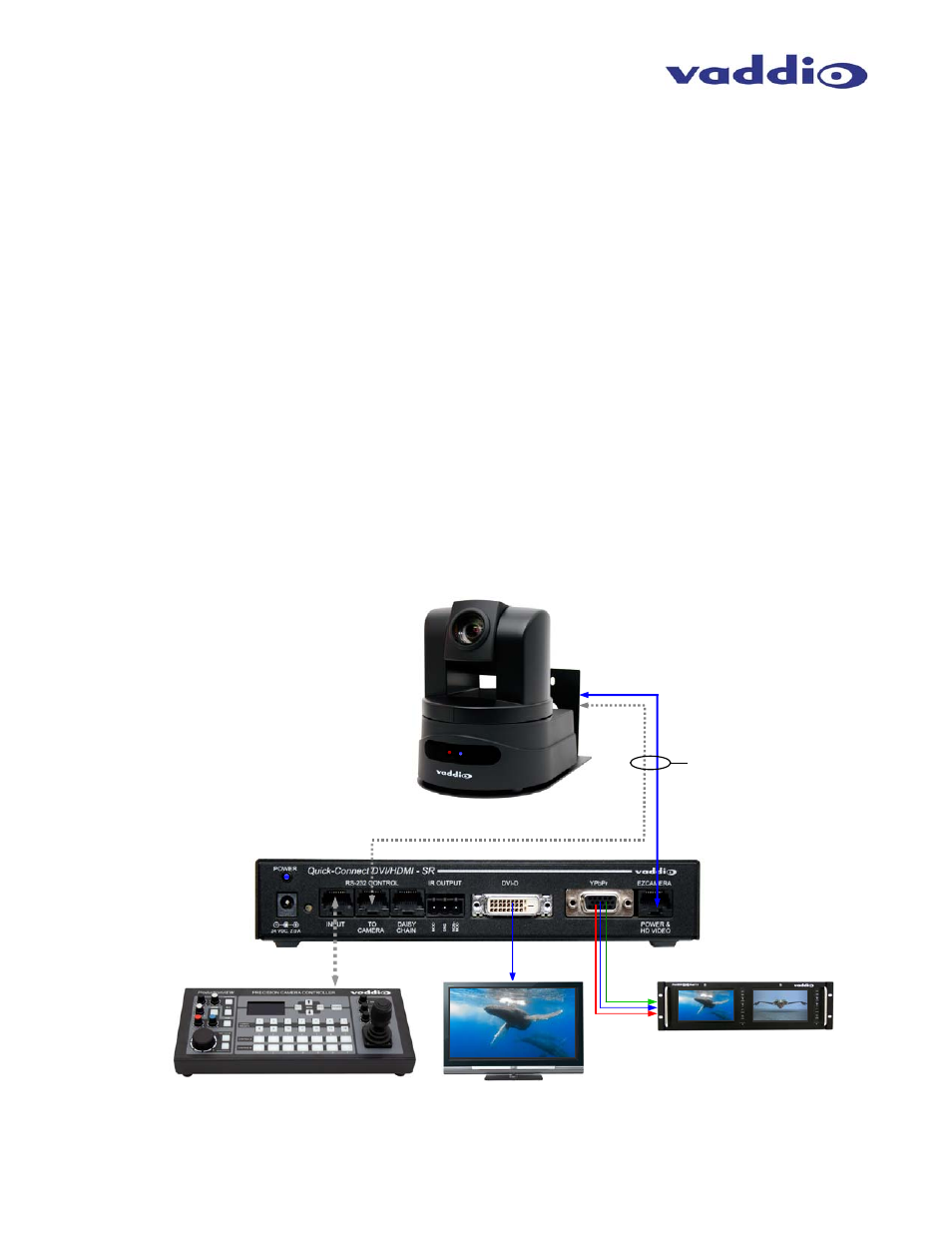

System Connectivity Example 1:
Basic system connectivity of a Vaddio WallVIEW™ HD-18 and Quick-Connect DVI/HDMI - SR Interface
with Vaddio ProductionVIEW™ Precision Camera Controller and Monitors

WallVIEW HD-18
HD Camera System

Quick-Connect
DVI/HDMI - SR Interface

Two (2) - Cat 5e Cables
Up to 100’ (30.48m)

RS-232 Control - Cat 5e

Power to Camera
HD Video from
Camera - Cat 5

Vaddio ProductionVIEW™ Precision Camera Controller

(Up to 7 PTZ Cameras can be controlled)

RS-232 on Cat 5

*Simulated Video Feeds

DVI or HDMI - Large Format

Monitor or Projector*

Vaddio PreVIEW™ HD 7.0 Rack Monitors*

DVI-D

YPbPr
