RIDGID SeekTech SR-20 Locator - Manual (Page 3)

Ridge Tool Company/Elyria, Ohio, U.S.A.
138

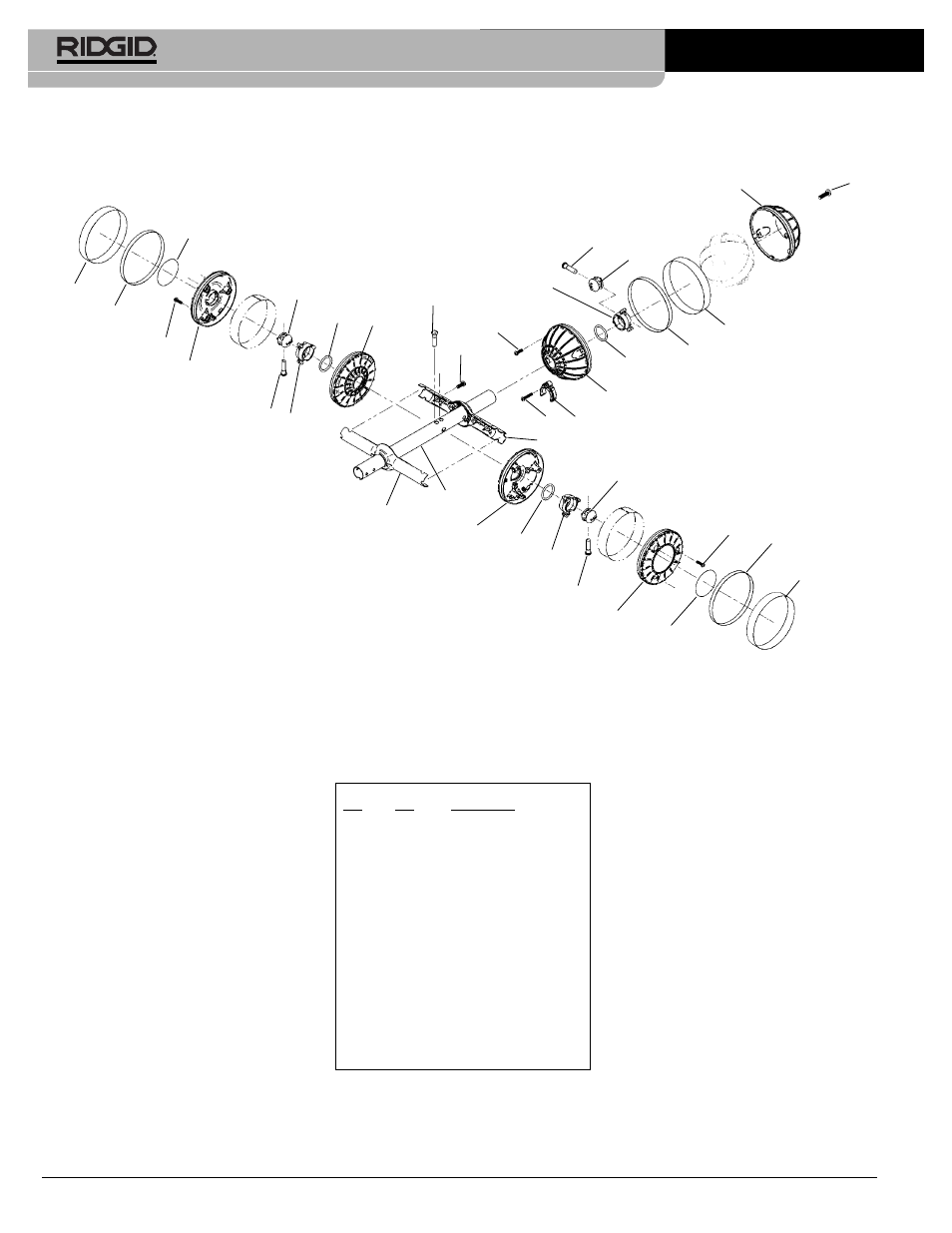

SR-20 Locator (Receiver) SeeSnake ®
Ref. Catalog
No. No. Description
1 24313 Antenna Ball Label
2 24363 Double Sided Tape Roll
3 24478 Side Antenna Label
4 24413 Screw #6 x 1 /
2
"
5 24343 Gradient Antenna Shell
(Outer)
6 23613 Seal
7 24373 Rivet
8 24318 Antenna Pin Ring
9 24358 O-Ring
10 24348 Gradient Antenna Shell
(Inner)
11 24353 Top Tube Bracket
12 24308 Bottom Tube
13 24338 Bottom Tube Bracket
14 24333 Tube Lock
15 24328 Top Antenna Shell
16 24403 Screw #8 x 1 /
2
"
17 24323 Bottom Antenna Shell
18 24368 Screw #6 x 3 /
4
"
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
