RIDGID SeekTech SR-20 Locator - Manual (Page 2)

Ridge Tool Company/Elyria, Ohio, U.S.A.
137

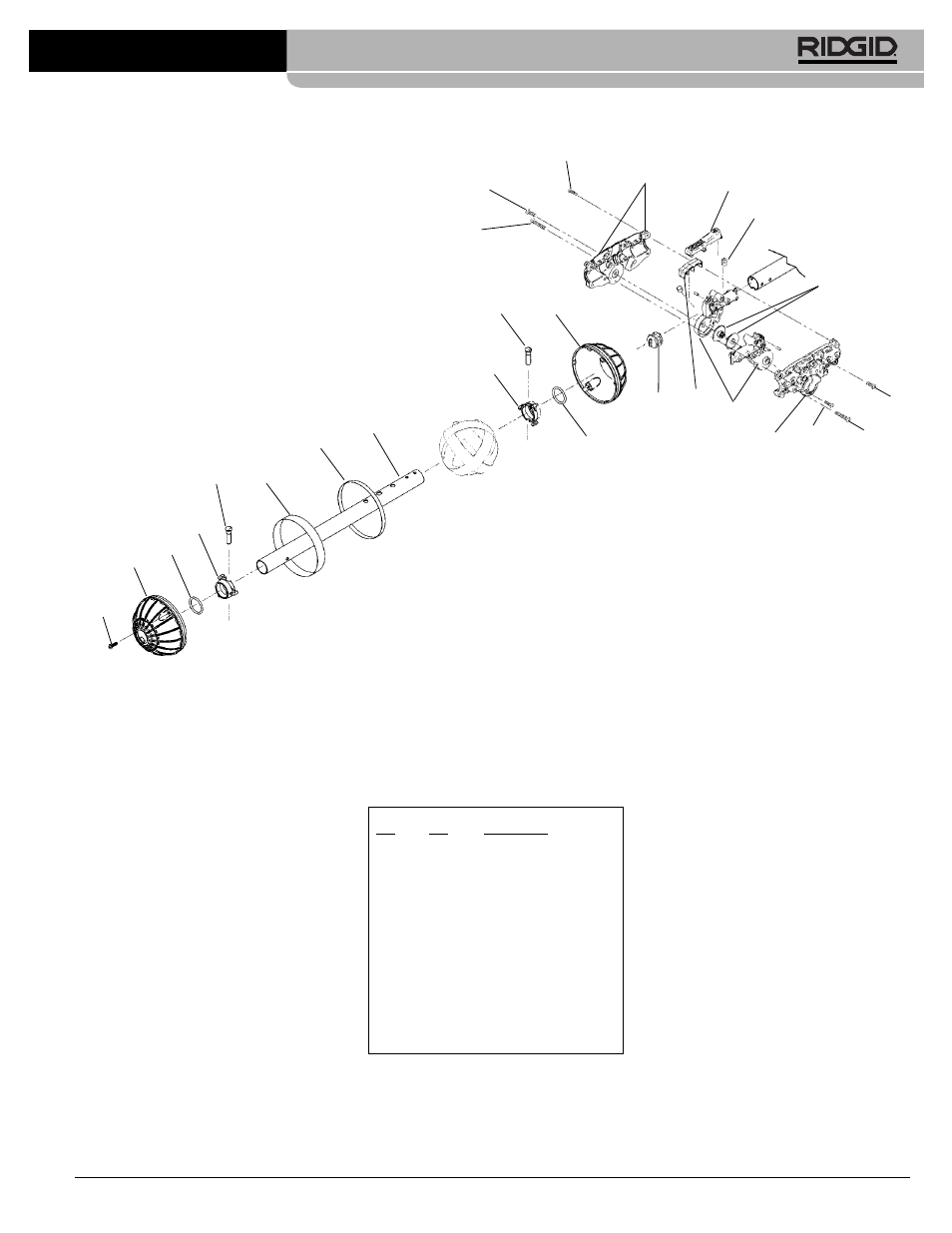

SR-20 Locator (Receiver) SeeSnake ®
Ref. Catalog
No. No. Description
1 24413 Screw #6 x 1 /
2
"
2 24328 Top Antenna Shell
3 24358 O-Ring
4 24318 Antenna Pin Ring
5 24373 Pin
6 24313 Antenna Ball Label
7 24363 Double Sided Tape Roll
8 24378 Top Tube
9 24408 Screw #8 x 1"
10 24403 Screw #8 x 1 /
2
"
11 23663 Outer Pivot Asm
12 23593 Pivot Latch
13 23603 Latch Spring
14 23598 Wire Reel
15 23588 Center Pivot
16 23628 Rear Pivot Cover
17 23613 Seal
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
9
11
12
13
15
16
17
14
10
9 1
11
2 5
3
4
1
10
8
7
6 5
4
3
2
1
