RIDGID SeekTech SR-20 Locator - Manual

Ridge Tool Company/Elyria, Ohio, U.S.A.
136

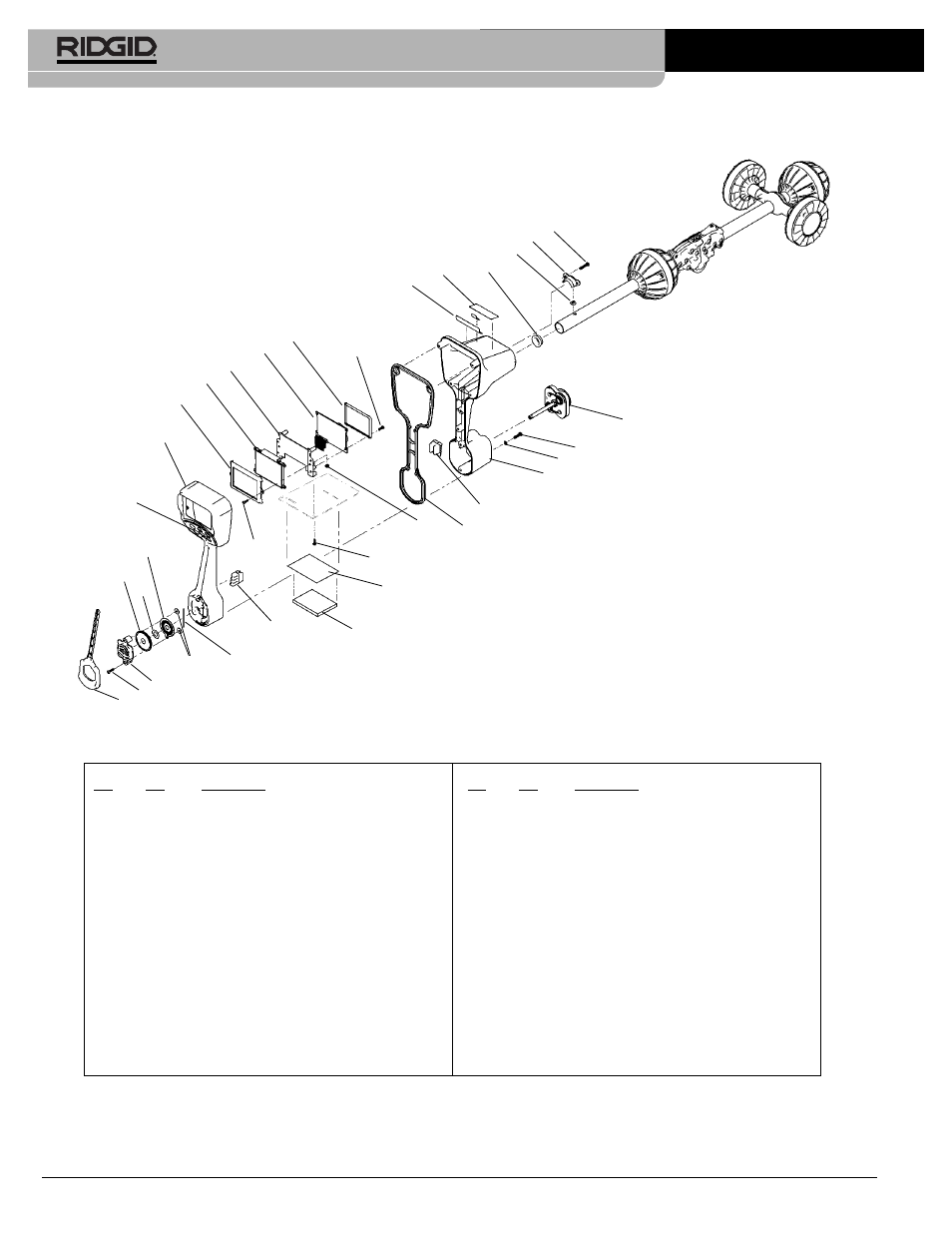

SR-20 Locator (Receiver) SeeSnake ®
1
10
3
11
9
4
Ref. Catalog
No. No. Description
1 24483 Handle Pad
2 24488 Screw #4-20 x 1 /
2
"
3 24418 Speaker Gasket
4 24493 Speaker
5 24498 Speaker Adhesive Label
6 24503 Speaker Circuit Board
7 24508 Flat Washer
8 24513 Cross Pin
9 24428 Keypad
10 24423 Top Case Only
24518 Top Case Asm (Incl. Keypad & Battery Contacts)
11 24298 Top Handle Seal
12 24523 Foam, 2" Wide Sheet
13 24528 Tape, 2.25" Wide Backing
14 24383 Screw #4-40 x 3 / 8 "
15 24533 Hex Nut #4-40
16 24273 Housing Seal
17 24293 Bottom Handle Seal
18 24433 Bottom Case Only
19 24303 Nylon Washer
20 24288 Screw #6 x 5 /
8
"
21 23183 Battery Cover
Ref. Catalog
No. No. Description
22 24368 Screw #6 x 3 /
4
"
23 24538 Tube Bracket
24 24543 Tube Bracket Gasket
25 24548 Tube Seal
26 24673 SR-20 Product Decal
27 24278 Icon Label
28 24553 Screw #4-20 x 3 /
8
"
29 24558 Display Window
30 23643 LCD Display
31 23638 LCD Mounting Plate
32 23653 LCD Power Module
33 23658 LCD Gasket
Following Items Not Shown
— 24563 Serial Board Asm
— 24568 USB/Serial Port Cover
— 24388 Bottom Handle Grip Pad
These Parts Are Located Inside Bottom Case
— 24583 Right Angle Mounting Bracket
— 24588 Screw #6 x 3 /
8
"
— 24593 Screw #6-32 x 3 / 16 "
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
2
7
8
5
6
12
15
28
14
13
19
18
17
33
31
32
20
21
27
28 30
29
22
24
25 26
23
16
