MINIMUM CLEARANCES TO COMBUSTIBLES:
-
18” to top
- 1” to sides
- 8” to bottom
- 0” to rear (cabinet)
- 1/2” to rear (appliance)
THIS APPLIANCE MUST BE INSTALLED IN THE CABINET PROVIDED. THE CABINET IS DESIGNED
TO BE INSTALLED ON FINISHED SURFACES.
THIS APPLIANCE CAN BE RECESSED INTO AN ALCOVE A MAXIMUM OF 12” PROVIDED THAT
ALL CLEARANCES ARE MAINTAINED.
THE CABINET MAY BE INSTALLED DIRECTLY ONTO A COMBUSTIBLE SURFACE.
!
WARNING

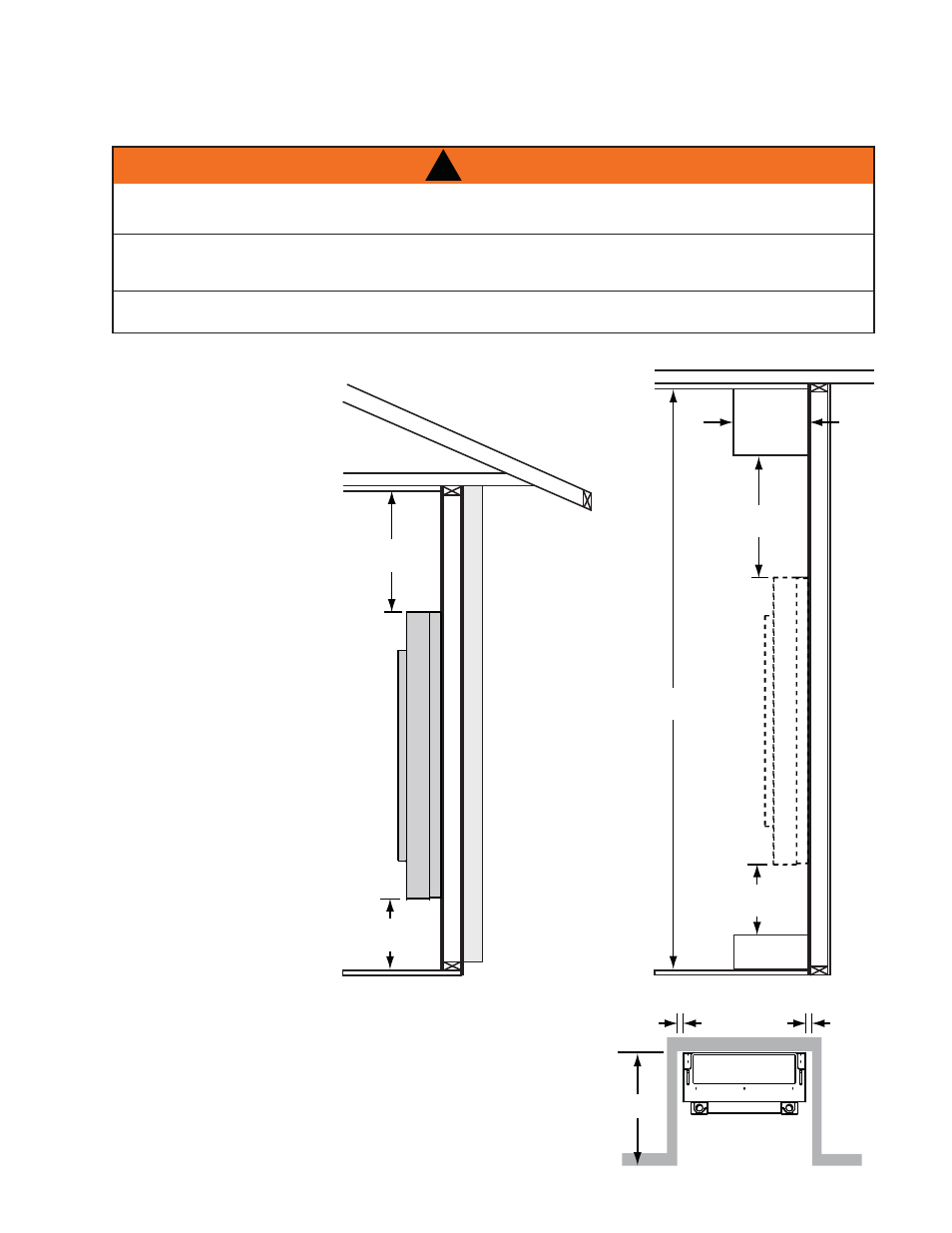

TYPICAL
INSTALLATION
(OUTSIDE WALL)
ALCOVE
INSTALLATION
(INSIDE WALL)
18” MIN.
8” MIN.
8’
12” MAX.
18”
MIN.
8”
MIN.
12” MAX.
1” MIN. 1” MIN.
4.0 FRAMING
4.1 CLEARANCE TO COMBUSTIBLES
