EXONIC EXD 6805 - Manual (Page 10)

Electric Connection
-9-

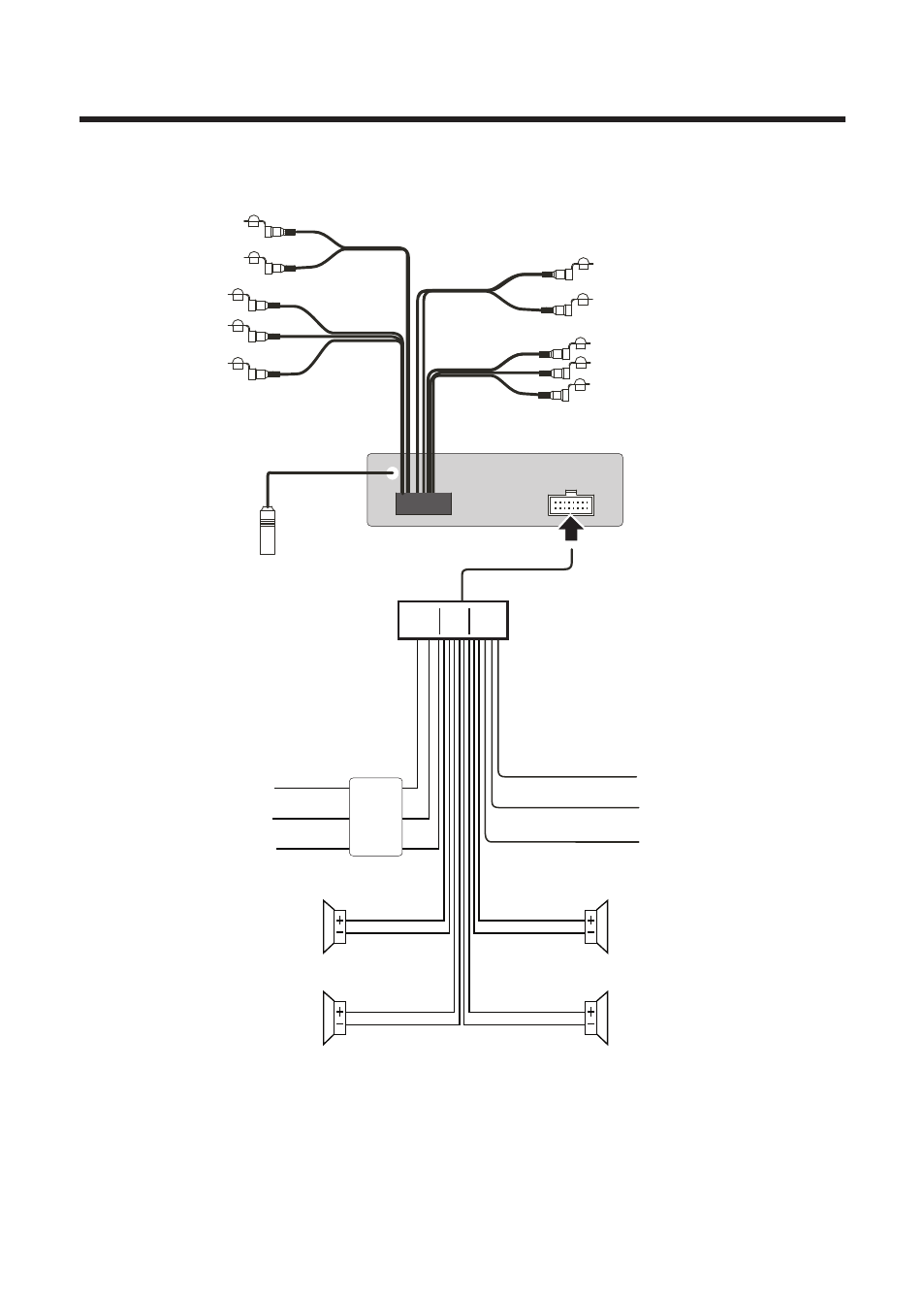

WIRING CONNECTION
SUBWOOFER OUTPUT (GREY)
AUDIO OUTPUT-R(RED)
AUDIO OUTPUT-L(WHITE)
REAR AUX OUTPUT
AUDIO OUTPUT-L(WHITE)
AUDIO OUTPUT-R(RED)
VIDEO OUTPUT (YELLOW)
FRONT AUX OUTPUT
REARVIEW CAMERA INPUT(YELLOW)
ORANGE
BROWN
REVERSE TRIGGER(BROWN, B+)
PARKING BRAKE(ORANGE,B-)
GREY
GREY/BLACK
FRONT
RCH SPK.
VIOLET
VIOLET/BLACK
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
REAR
LCH SPK.
AUTO ANTENNA
BLUE
GROUND(B-)
MEMORY BACK-UP(B+)
IGNITION SWITCH(B+)
RED
YELLOW
BLACK
REAR
RCH SPK.
FRONT
LCH SPK.
CHOKE
BOX
RADIO ANTENNA JACK
AUDIO INPUT-R(RED)
AUDIO INPUT -L(WHITE)
VIDEO INPUT(YELLOW)
AUX INPUT
Note:
In order to use the DVD player function, the “ EMERGENCY BRAKE SAFTY
WIRE (B-) ” must be connected properly . If not properly connected the unit will
display “PARKING BRAKE ” .
