Audiovox AMP-610 - Manual (Page 14)

HIGH-LEVEL
(SPEAKER) OUTPUTS
CAR STEREO
USE THIS INPUT WIRING WITH
OUTPUT WIRING ON PAGE 13

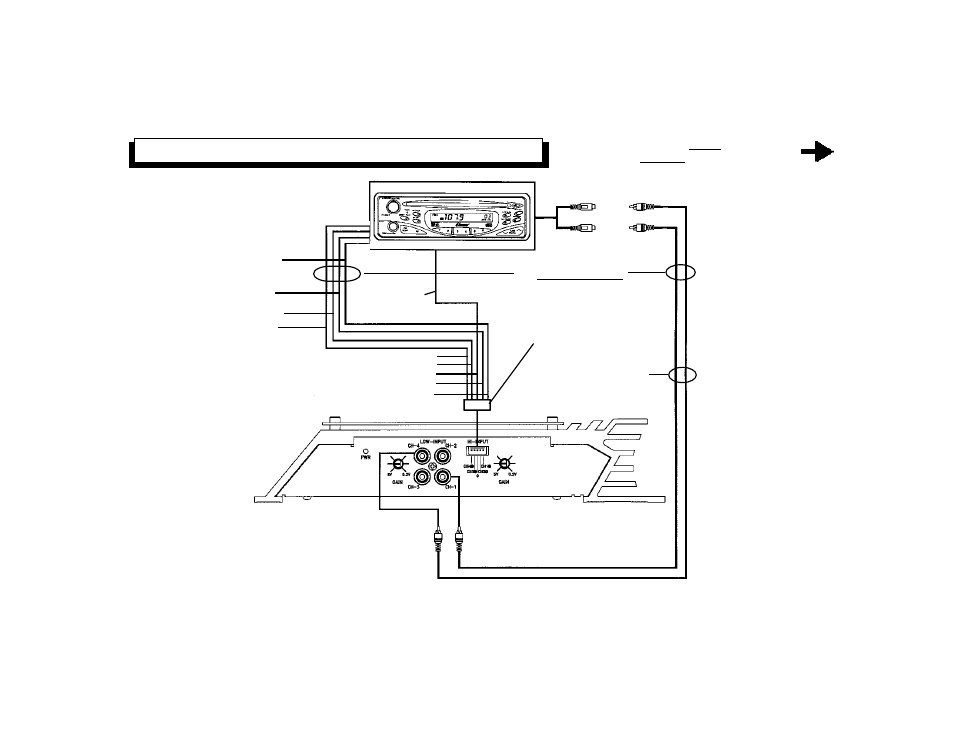

2-CHANNEL MONO (BRIDGED) INPUT WIRING DIAGRAM
LOW-LEVEL
RCA OUTPUTS
RIGHT
LEFT
IMPORTANT
USE EITHER HIGH-LEVEL OR
LOW-LEVEL INPUTS, NOT BOTH. CHASSIS GROUND
ON RADIO
TO CH1
TO CH4
RCA TYPE
SHIELDED CABLES
(NOT INCLUDED)
-12-
RIGHT REAR +
LEFT REAR +
RIGHT FRONT +
LEFT FRONT + 5-PIN
CONNECTOR
G R E E N
W H I T E
BROWN
G R A Y
B L A C K
