USE THIS INPUT WIRING WITH
OUTPUT WIRING ON PAGE 9

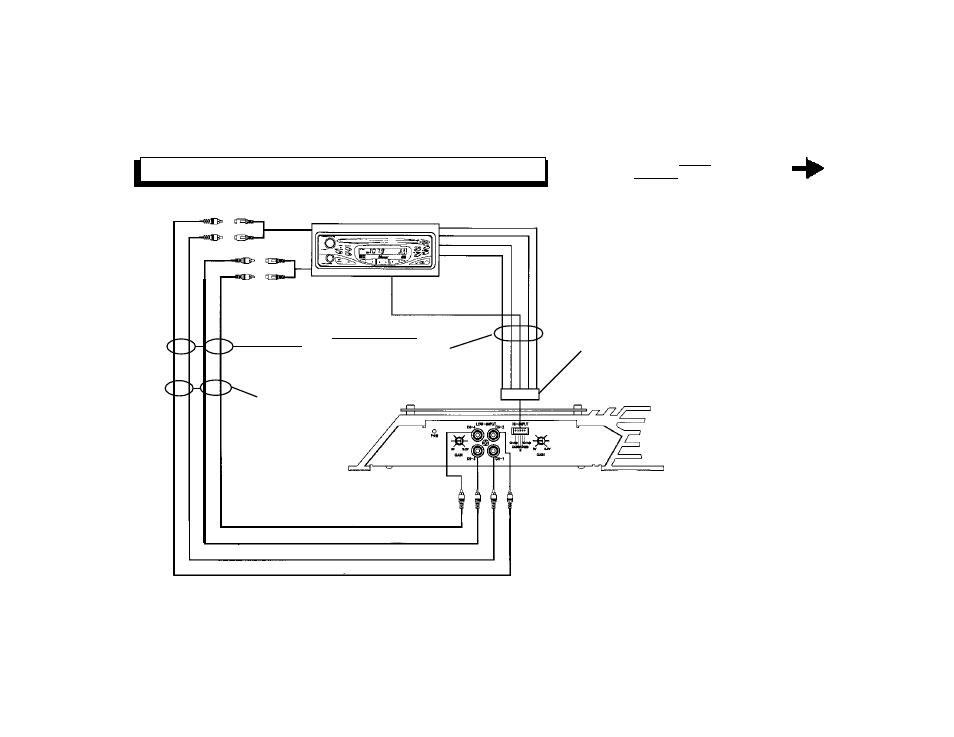

4-CHANNEL AND MIXED-MONO INPUT WIRING DIAGRAM
LOW-LEVEL
RCA OUTPUT S
HIGH-LEVEL
(SPEAKER) OUTPUTS
CAR STEREO
LEFT REAR +
RIGHT REAR +
RIGHT FRONT +
GREEN WHITE BLACK BROWN GRAY
CH1
CH2
CH3
CH4
IMPORTANT
USE EITHER HIGH-LEVEL OR
LOW-LEVEL INPUTS, NOT BOTH.
RCA TYPE
SHIELDED CABLES
(NOT INCLUDED)
LEFT FRONT
RIGHT REAR
RIGHT FRONT
LEFT REAR
CHASSIS GROUND
ON RADIO
5-PIN
CONNECTOR
LEFT FRONT +
