LEFT FRONT
SPEAKER
SPEAKER IMPEDANCE
4-CHANNEL MODE : 2-8 OHMS
MIXED-MONO MODE : 4-8 OHMS
RIGHT REAR
SPEAKER
RIGHT FRONT
SPEAKER
LEFT REAR
SPEAKER
USE THIS OUTPUT WIRING WITH
INPUT WIRING ON PAGE 8

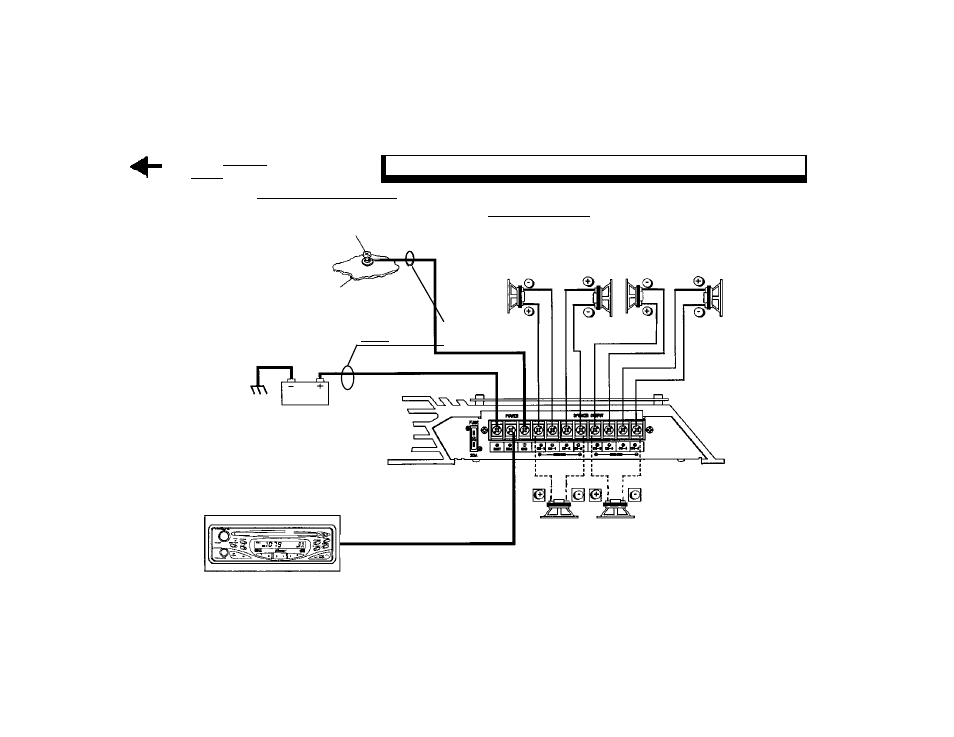

4-CHANNEL AND MIXED-MONO OUTPUT WIRING DIAGRAM
USE #10 GAUGE
WIRE (SEE TEXT)
CONNECT THIS
WIRE LAST
EXISTING SCREW OR BOLT
CLEAN PAINT, RUST, DIRT OR
GREASE FROM AREA FOR GOOD
CONNECTION
GROUNDED METAL
SECTION OF VEHICLE
CAR STEREO
CHASSIS
GROUND
AUTO-ANTENNA LEAD
CH1 / CH2
MIXED-MONO SPEAKER OR
SUB-WOOFER WITH CROSSOVER
4-8 OHMS
CH3 / CH4
MIXED-MONO SPEAKER OR
SUB-WOOFER WITH CROSSOVER
4-8 OHMS
12 VOLT VEHICLE
BATTERY
