Installation/Operation Supplement
9002062 (EN)
14
Operating Instructions
1. Turn on main power source (circuit breaker).
2. Push black button and pull door handle away
from machine to open door. Refer to Figure 7.

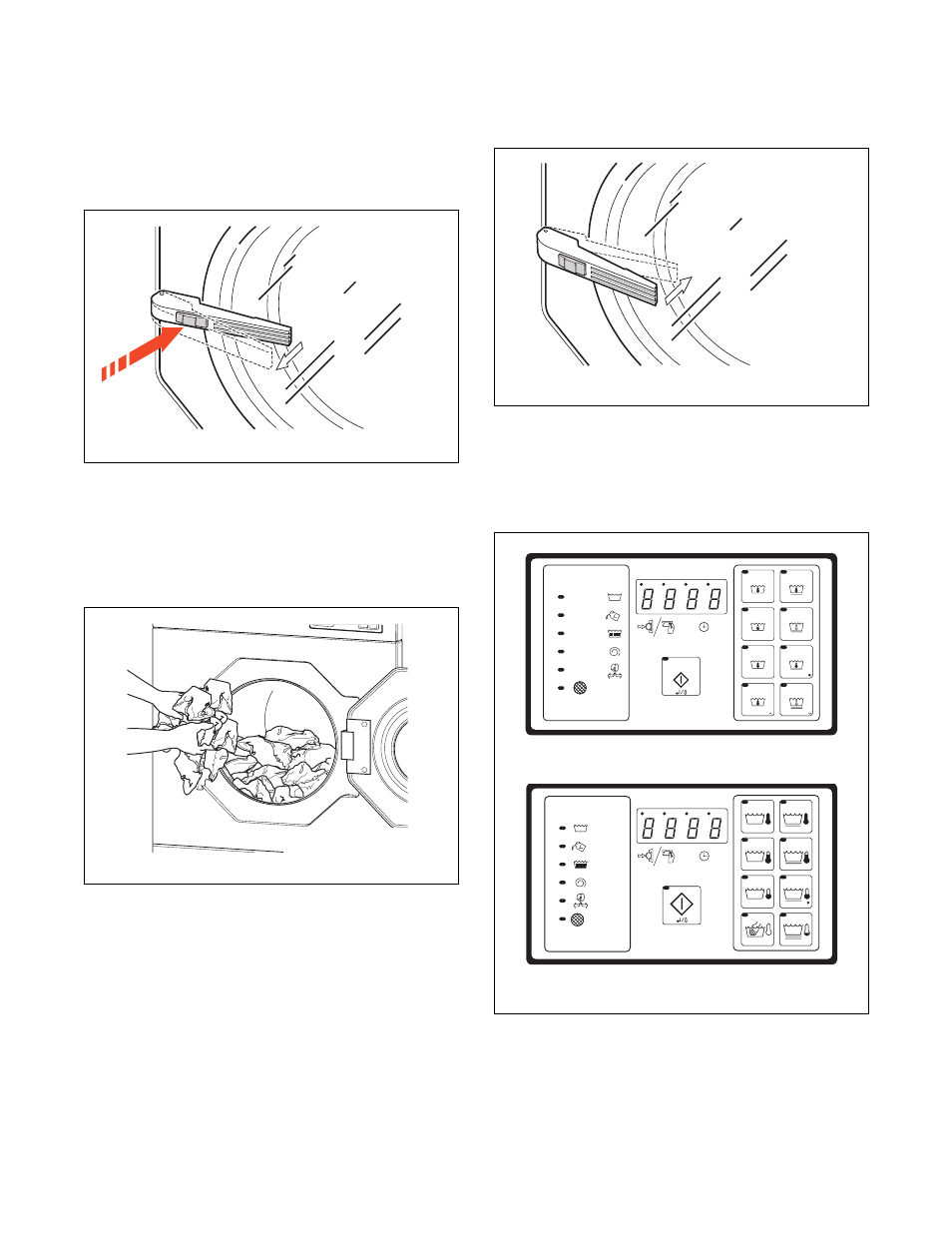

Figure 7
3. Load to capacity whenever possible. DO NOT
OVERLOAD. Refer to Figure 8.
NOTE: Underloading can cause out-of-balance
conditions that can shorten machine life.
Figure 8
4. Close door by pushing door handle towards
machine. Refer to Figure 9.
Figure 9
5. The default wash cycle will display.
NOTE: Perm Press Cold (60°C) is the default cycle
for coin models if none is selected.
Figure 10
CFD20N
CFD24N
CFD20N
CFD24N
CFD25N
CHM482R
CHM488R
CFD25N
CHM48
WASH
ADD
BLEACH
RINSE
SPIN
DOOR
NORMAL
NORMAL
QUICK
AS
QUICK WASH
HEAVY SOIL
DELICATE
RM RESS
PERM PRESS
HOT
WARM
HOT
HOT
WARM
COLD
WARM
COLD
START
PE
P
W
H
DOMESTIC MODELS
60C
60C
40C
40C
95C
95C
<
<
30C
CHM488R
INTERNATIONAL MODELS
