Computer FireWire Connector

• In/Out: 6-pin IEEE-1394a port x 1
• Asynchronous Data I/O

Remote Control, Serial Connector

• GPI / RS232C; 3.5mm TRS mini jack. (3.5mm to DB-9 cable

accessory available).

• Configure as a simple contact closure or RS-232C port.
• Connect an optional wired remote commander.

IMPROPER INSERTION WILL DAMAGE UNIT

Properly Align FireWire Cable and Connector - Do Not Force

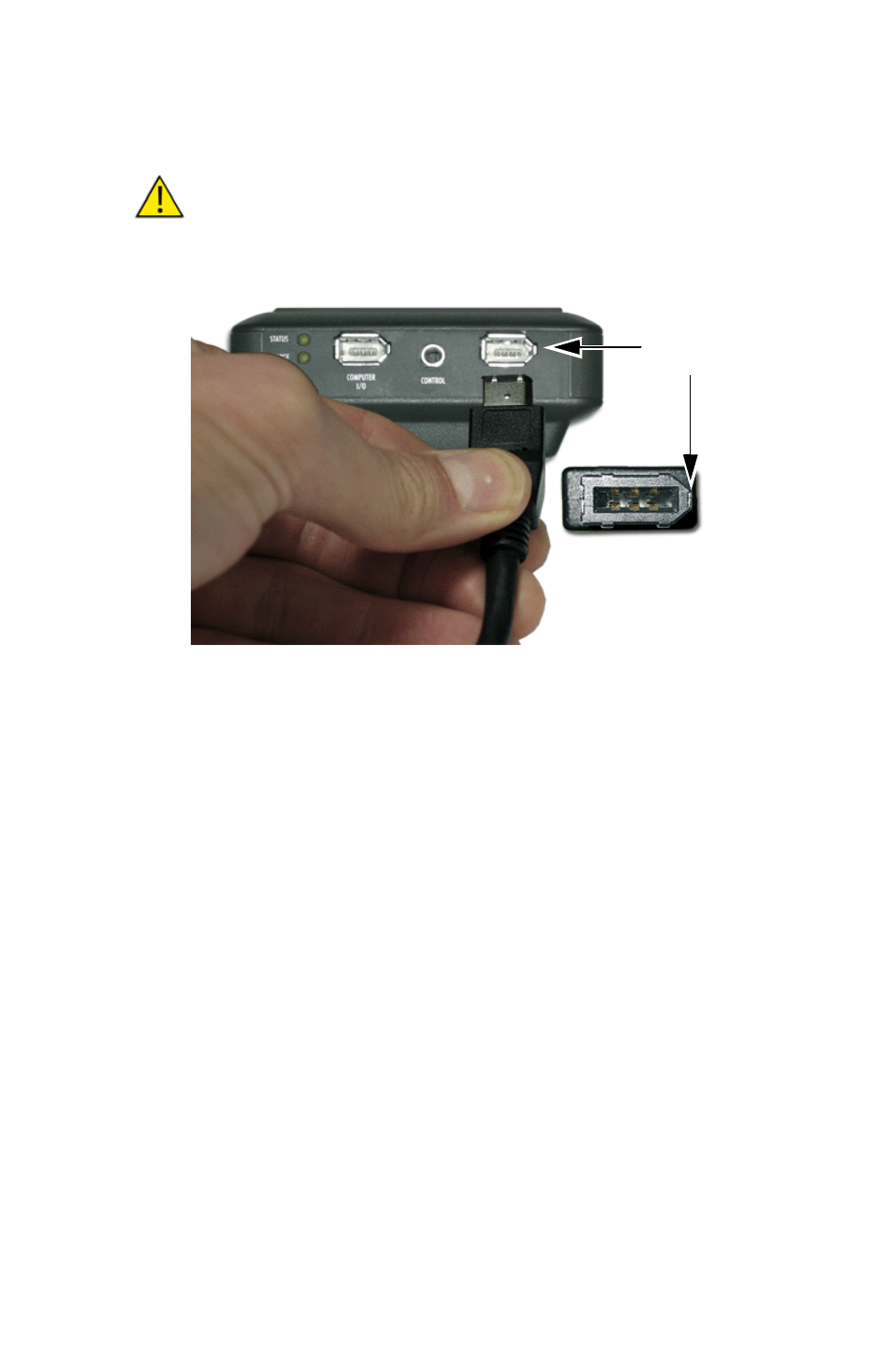

Correctly align the FireWire cable to the connector before insertion. The
pointed end of the connector and the jack should be on the same side
before insertion:

Align pointed ends of
connector and
cable jack.
