VERTICAL CONTACT TOASTER
OPTIONAL PARTS – VCT-1000

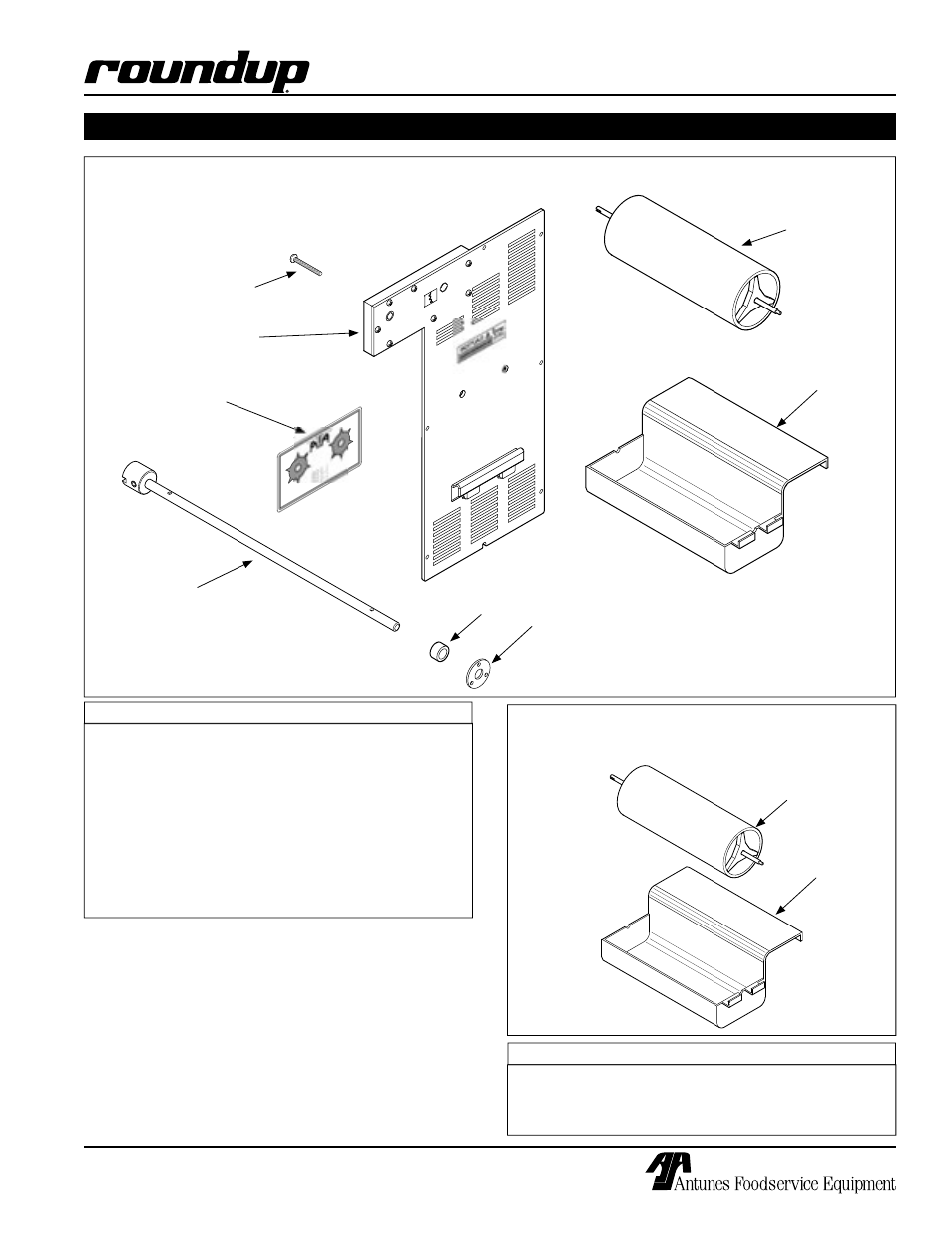

Mechanical Butter Wheel Kit (model 7000298) Requires Professional Installation.
    

 

(19.1 mm) (20.6 mm) 7/8" (22.2 mm)
 

  
1 7000298 Butter Wheel Kit (consists of the following):
a 0011552 End Housing Cover Assy. 1
b 0011573 Idler Shaft Assembly 1
c 0021320 Roller Weldment 1
d 0500464 Retainer, Bearing 1
e 0503987 Pan, Butter 1
f 1001047 Label, Dial Compression 1
g 1010773 Instruction Sheet (not shown) 1
h 2120107 Spacer, Aluminum 1
i 3080162 #8-32x1-1/4 Screw (not shown) 1
Item Part No. Description Qty.
a
b
c
d
e
f
h
i
1 7000238 Butter Wheel Kit (consists of the Following)
a 0020205 Butter Roller Weldment 1
b 0021232 Butter Tray Weldment 1
Item Part No. Description Qty.
Mechanical Butter Wheel Kit
(model 7000238)
b
a
