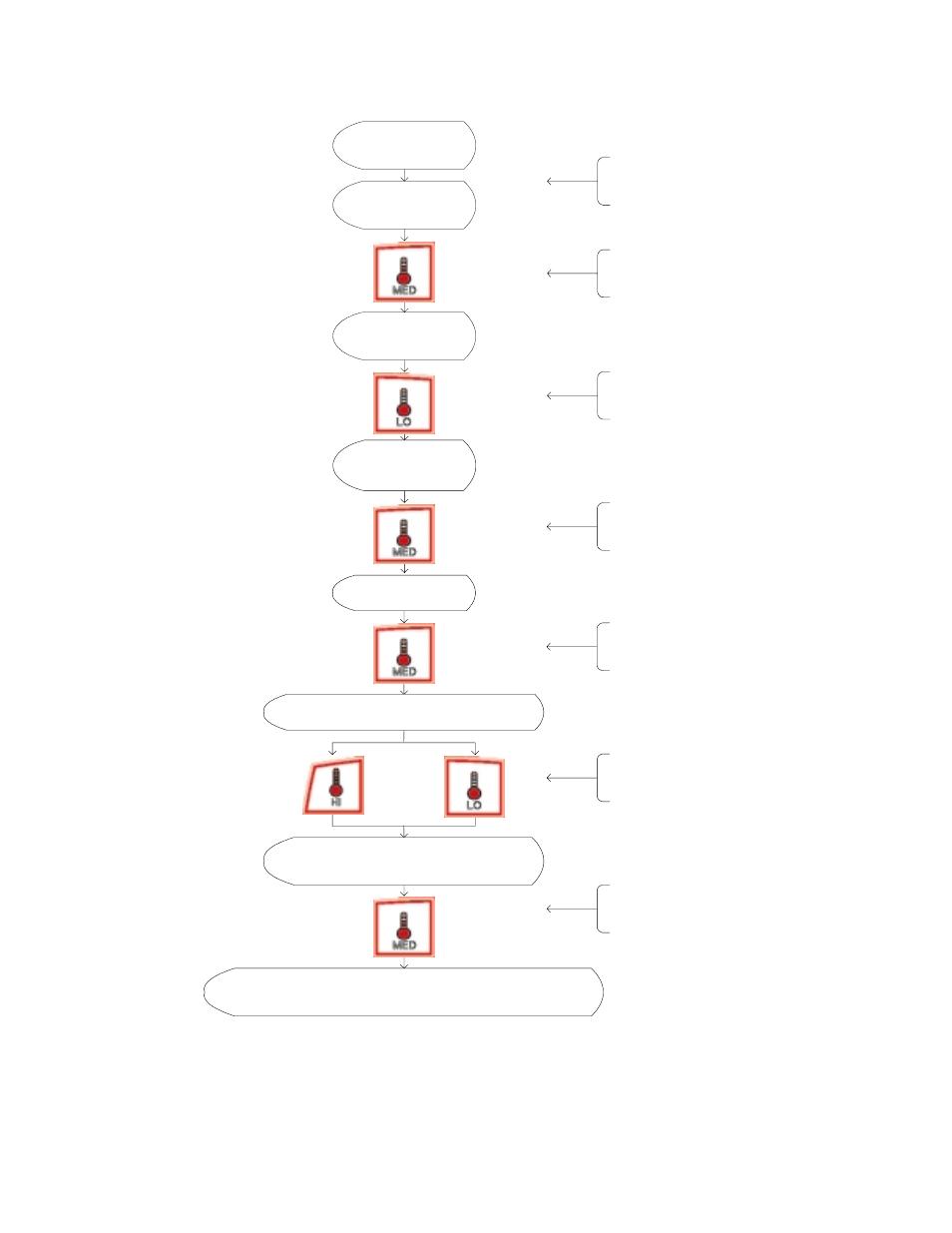

ACCESSING UPPER DRYER FAULT RECORDS

PRESS "MED" TO ENTER
PL #07 FAULT
RECORDING.

PRESS "LO" ONE (1)
TIME TO SCAN DOWN
TO PL #07 FAULT
RECORDING.

PRESS "MED" TO ENTER
PROGRAM MENU.

FROM READY MODE
TOGGLE PROGRAM
SWITCH TO UP
POSITION.

PROGRAM MODE

PL #01 CONTROL

SETTINGS

PL #07 FAULT

RECORDING

READY, INSERT

0.25 ¢ TO START

Note: Press "PAUSE" To exit
PL #07 FAULT RECORDING
memory location.

FOR CYCLE
INFORMATION AT THE
TIME OF THE FAULT
OCCURRENCE, PRESS
THE “MED” KEY.

USE THE “HI” AND “LO”
KEYS TO SCAN
THROUGH THE LAST 5
FAULTS THAT THE
CONTROL BOARD
DETECTED.

PRESS"MED" TO
PROCEED.

UPPER DRYER

FAULTS

1: HR=2:00 CODE= Exhaust Temp

Probe Fault

Drying Temp 160°F, Cool Down Time 2 minutes, Cool

Down Temp 100°F

2: HR=2:00 CODE= Exhaust Temp

Probe Fault
