Programming
9 F232139 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Entering Program Mode
1. Unlock and raise top cover.
2. Remove control module cover.
3. Locate the Run/Program Mode switch near
center of computer board inside control module.
Refer to Figure 1.

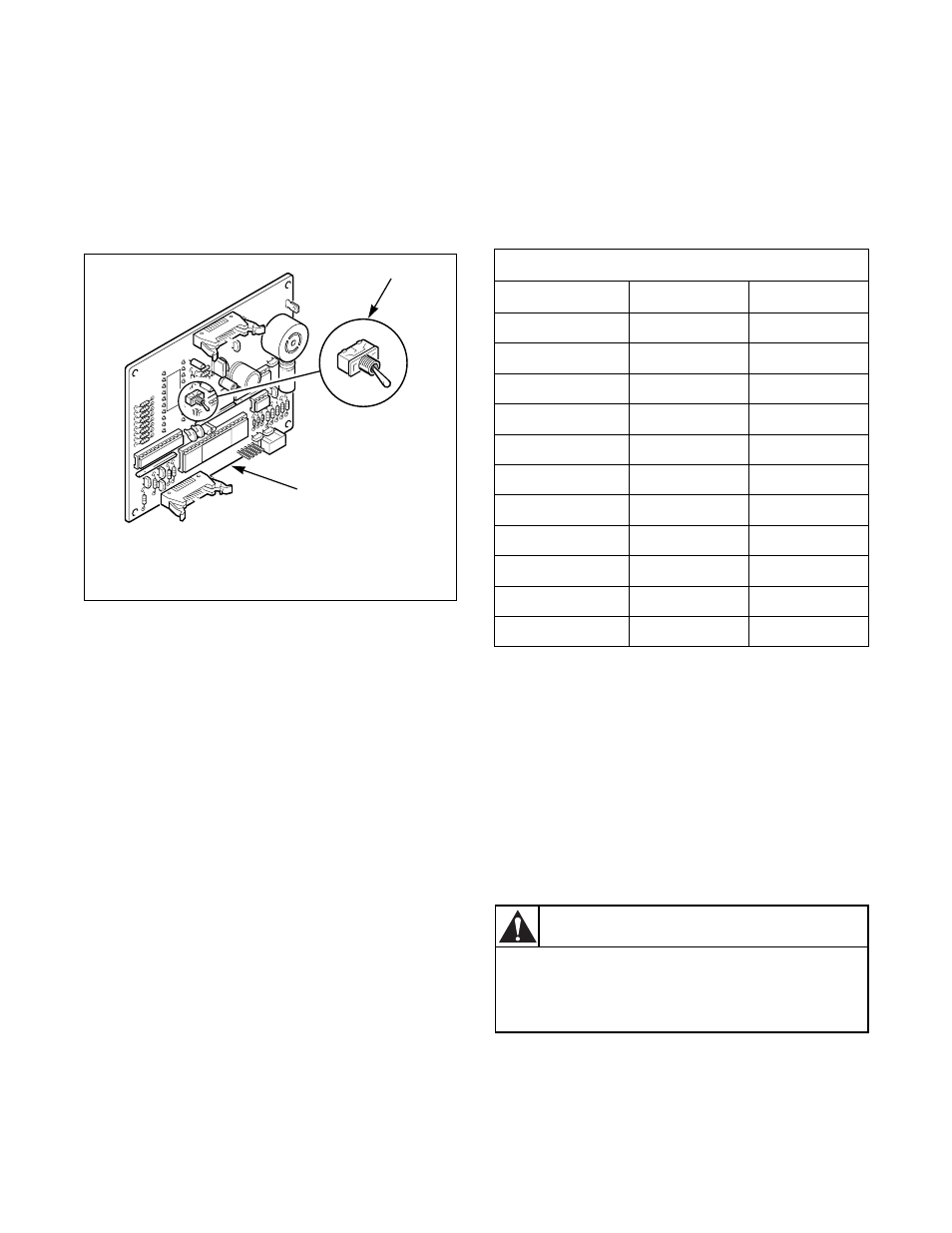

Figure 1
4. Flip switch to down position to enter Program
Mode. Display will show current temperature of
sump.
Programming Setup Mode
NOTE: Selection of degrees Fahrenheit or Celsius
is only option for setup.
1. Press Stop (*) key to enter Setup Mode while
display is showing temperature in sump.
2. Use Up or Down (arrow) key to change selected
option. Press Start (#) key to accept selected
option, either “FAr” or “CEL”.
3. Press Stop (*) key to exit Setup Mode.
Programming a Cycle
1. Press Up (arrow) key until computer display
shows segment to be edited. Press Start (#) key.
2. Use Up or Down (arrow) key to select desired
segment time. Refer to Table 2. Set value to zero
to skip segment. Press Start (#) key.
NOTE: Spin times in cycle segments 1 – 8 are
entered in seconds (30 to 120), and time for final
spin in segment 11 is entered in minutes (1 to 10).
NOTE: The computer does not count down the
remaining cycle time during fills, drains, or prior to
first achieving the programmed heat temperature
when heating. The computer resumes counting
down cycle time once the programmed fill level is
reached, when the machine has drained, and after a
programmed heat temperature is reached.
B152R
1 Run/Program Mode Switch
2 Computer Board
1
2
Time and Temperature Parameters
Segment Minimum Maximum
PreWash 1 minute 30 minutes
Wash 2 minutes 20 minutes
Fill 1 2 minutes 15 minutes
Fill 2 2 minutes 15 minutes
Fill 3 2 minutes 15 minutes
Fill 4 2 minutes 15 minutes
Fill 5 2 minutes 15 minutes
Fill 6 2 minutes 15 minutes
Intermediate Spin 30 seconds 120 seconds
Final Spin 1 minute 10 minutes
Temperature 75°F (25°C) 200°F (93°C)
Table 2
To avoid personal injury, recommended
inlet water temperature should be no
higher than 125° Fahrenheit (51° Celsius).
W709
WARNING
