Agilent Technologies N9360A - Manual (Page 23)

GSM System 4
N9360A Multi UE Tester Quick Reference Guide 4-5
For Troubleshooting

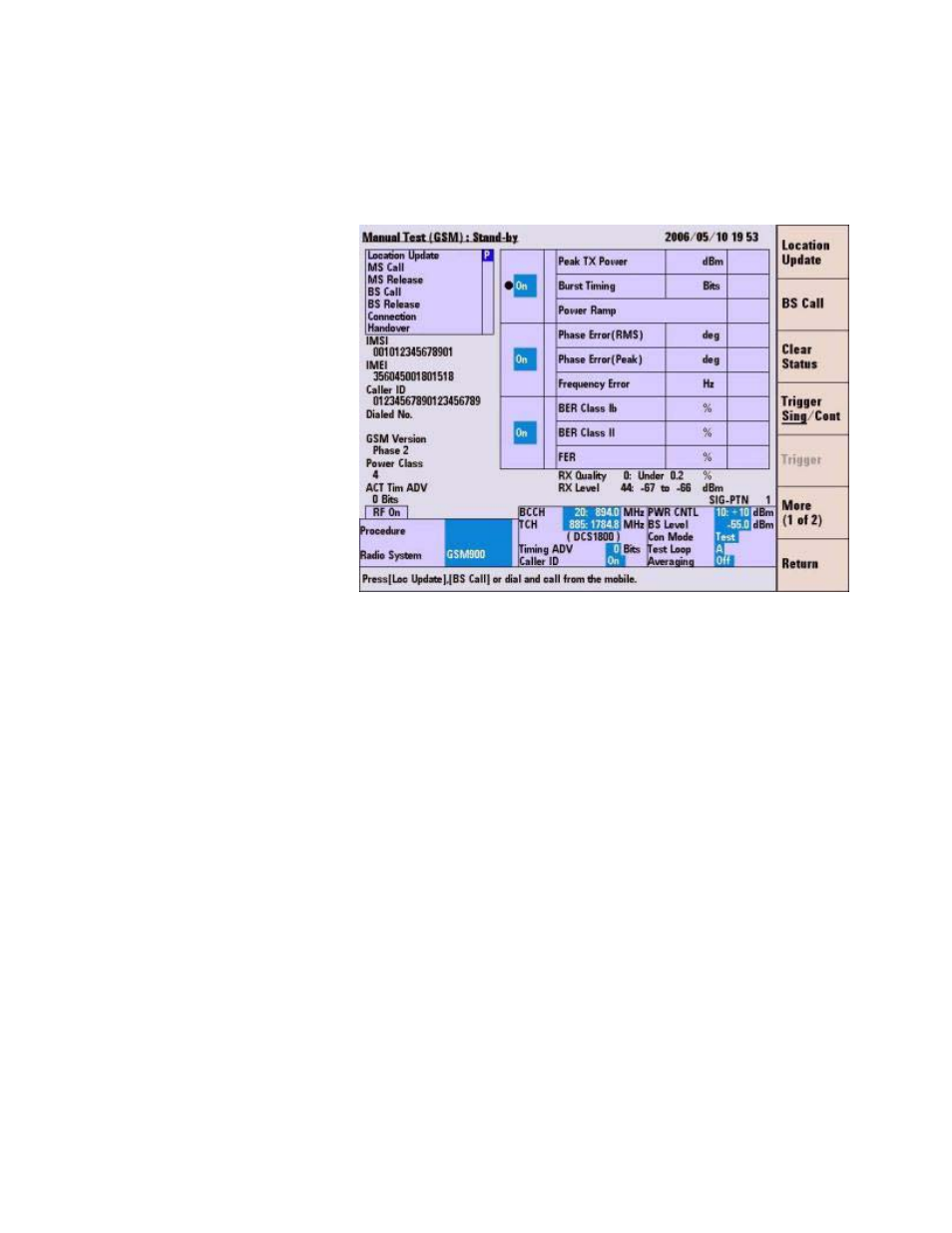

Figure 4-4 [Manual Test (GSM): Stand-by] Screen
1 Press the Manual Test softkey on the [Initial] screen.
2 Move the cursor to the “Procedure” field and select a
pre-defined test procedure.
3 Turn the mobile phone on.
4 Wait for the completion of Location Update.
5 Press the BS Call softkey and respond to the call on the
mobile phone when it is called. Or, dial an arbitrary number
and press the Off Hook key on the mobile phone to start the
MS Call.
6 To start measurement while the left screen is displayed, refer
to step 7. For detailed measurement at each measurement
item, refer to step 8.
