10 11
■

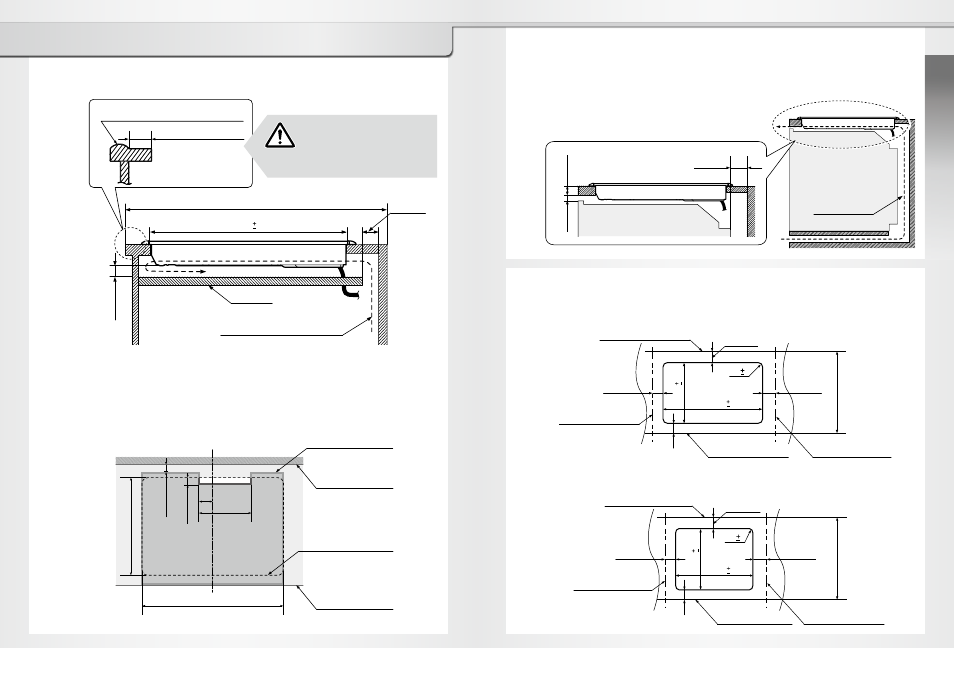

Dimensions of countertop cutout
KY-B84BX / KY-B84BG
R3 1
490
3 0
727 3
0
Building side wall
Countertop front Min. 59 Building side wall
Building rear wall
Min.51
Min.600
Min.51
Min.51
KY-B64BX / KY-B64BG
R3 1
490
3 0
560 3
0
Building side wall
Countertop front Min. 59 Building side wall
Building rear wall
Min.51
Min.600
Min.51
Min.51
490 3
0
CAUTION
If this condition is not
met, do not install the
appliance.
Min.600
Min. 30 for flat part
Bulge of front countertop
Rear side Front side
Flow of intake and exhaust
Min.40
■
Side view
(measurement: mm)
Related Dimensional Drawings for Custom Kitchens
■
Side view with an oven
(measurement: mm)
Min.20
Flow of intake
and exhaust
Oven
When installing the cooktop above an oven,
- Allow for Panasonic ovens: HL-BT62S / HL-BT62B only. (As of January 2013)
- Allow for extra spaces for air circulation as shown below.
Min.40
Min.5
Min.60
Oven
When installing a partition inside the cabinet,
- Allow for a minimum of 20 mm extra space underneath the bottom of the appliance
for air circulation.
- Allow for a minimum of 40 mm extra space in rear of the partition.
Top view of the partition
Min. 20
Min. 40
70
265
490
727 (for KY-B84BX / KY-B84BG)
560 (for KY-B64BX / KY-B64BG)
Partition
Building rear wall
Countertop cutout
(See page 11.)
Partition
Countertop front
