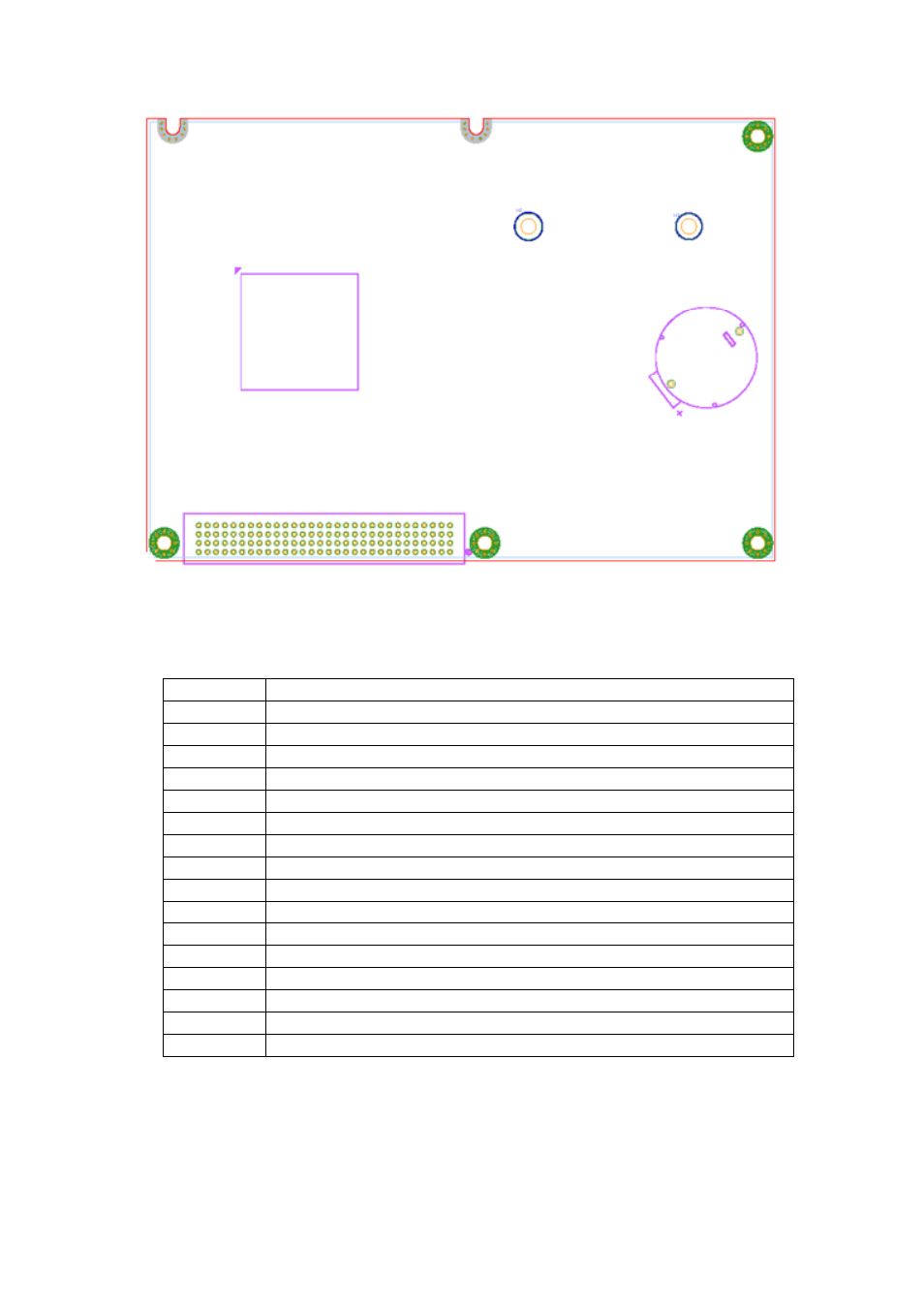

Figure 3.3: Solder side of the PCM-7230
Table 3.1 Header Description
Label Function
JP 1 CPLD JTAG port
JP 2 CPU PXA255 JTAG port
JP 3 LCD signal voltage level select
JP 4 Power switch header
CN 1 PCMCIA accessing status port
CN 3 multi-function I/O header(I)
CN 8 CRT-out header
CN 9 multi-function I/O header(II)
CN 12 HotKey function header
CN 14 memory module 100-pin board-to-board connector
CN 18 TTL level LCD signal connector
CN 20 LAN status LED header
CN 25 type II CF slot
CN 26 Inverter signals header
CN 29 Power-in connector
CN 31 SM bus port
