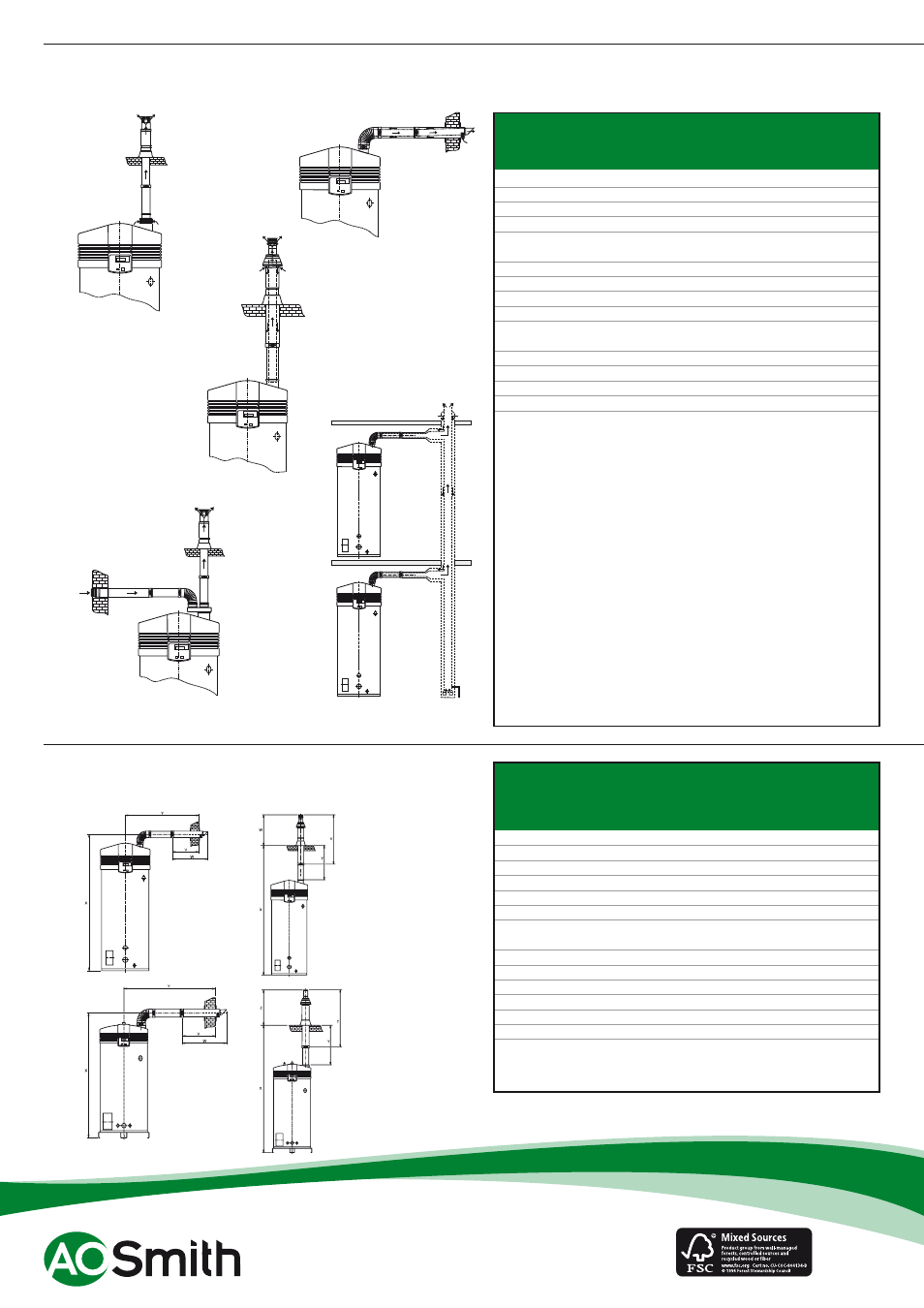

Flue systems Cyclone BFC

Installation options

B23

C13

C33

C53

C43

A Cyclone BFC water heater should be installed according
category B23, C13, C33, C43 or C53*.

Concentric
Diameter (mm)

80/125

100/150 100/150 100/150 130/200 130/200

Max. length (m)

40

40

40

15

15

15

Max. 45/90° bends

7

7

7

4

3

3

Parallel (standard diameter)
Diameter (mm)

80

100

100

100

130

130

Max. length (m)

25

80

45

25

115

60

L

equivalent

/bend 90° (m) 3,9

4,6

4,6

4,6

2,4

2,4

L

equivalent

/bend 45º (m) 1,1

1,2

1,2

1,2

1,4

1,4

Parallel (larger diameter for more length)
Diameter (mm)

100

130

130

130

150

150

Max. length (m)

100

100

100

100

100

100

L

equivalent

/bend 90º (m) 4,6

2,4

2,4

2,4

2,6

2,6

L

equivalent

/bend 45º (m) 1,2

1,4

1,4

1,4

1,6

1,6

* All Cyclone BFC are also approved for installations where the unit is supplied
without venting materials (C63).

Concentric flues
It is not permitted to use more than the specified number of
bends, even when the duct is shorter than the maximum
length. A 45° bend is equivalent to a 90° bend.

Parallel flues
- The maximum permissible length should be reduced by the
equivalent length of each bend. (Note: for a parallel installation
this means that 3 changes in direction amount to 6 bends
(3 in the supply duct and 3 in the flue).
- The maximum length also applies if a parallel installation has
different supply and flue duct lengths (B23, C53).
- Combined flues (C43) shall be fitted with a condensate drain.

Note: horizontal flue runs must be installed with a fall of at least
5 mm per metre.

Flue systems Cyclone BFC

Minimum space requirements

BFC 28

BFC 30

BFC 50

BFC 60

BFC 80

BFC 100

Minimal space for wall duct (mm)

V

550

550

550

550

640

640

W

725

790

790

790

940

940

X

1535

2075

2075

2075

2230

2230

Y

1460

1480

1480

1480

1620

1620

Y *

1010

1030

1030

1030

1170

1170

Minimal space for roof duct (mm)

V

1305

1500

1500

1500

1730

1730

W

680

1035

1035

1035

1120

1120

X

2965

3325

3325

3325

3620

3620

X **

2015

2375

2375

2375

2670

2670

Y

1575

1415

1415

1415

1560

1560

Y **

625

465

465

465

610

610

For the parts numbers of components and flue gas ducts, etc.
please refer to the “Maintenance and accessories” chapter.

Ш80/125 Ш100/150 Ш100/150 Ш100/150 Ш130/200 Ш130/200

* Distance without concentric pipe between bend and wall duct.
** Distance without concentric pipe between appliance and roof duct.

BFC 28-60

BFC 80-100

BFC 28

BFC 30

BFC 50

BFC 60

BFC 80

BFC 100
