Getting started
RQT9778 21
≥For a safety measure to prevent the speakers from falling, refer to page 24.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.

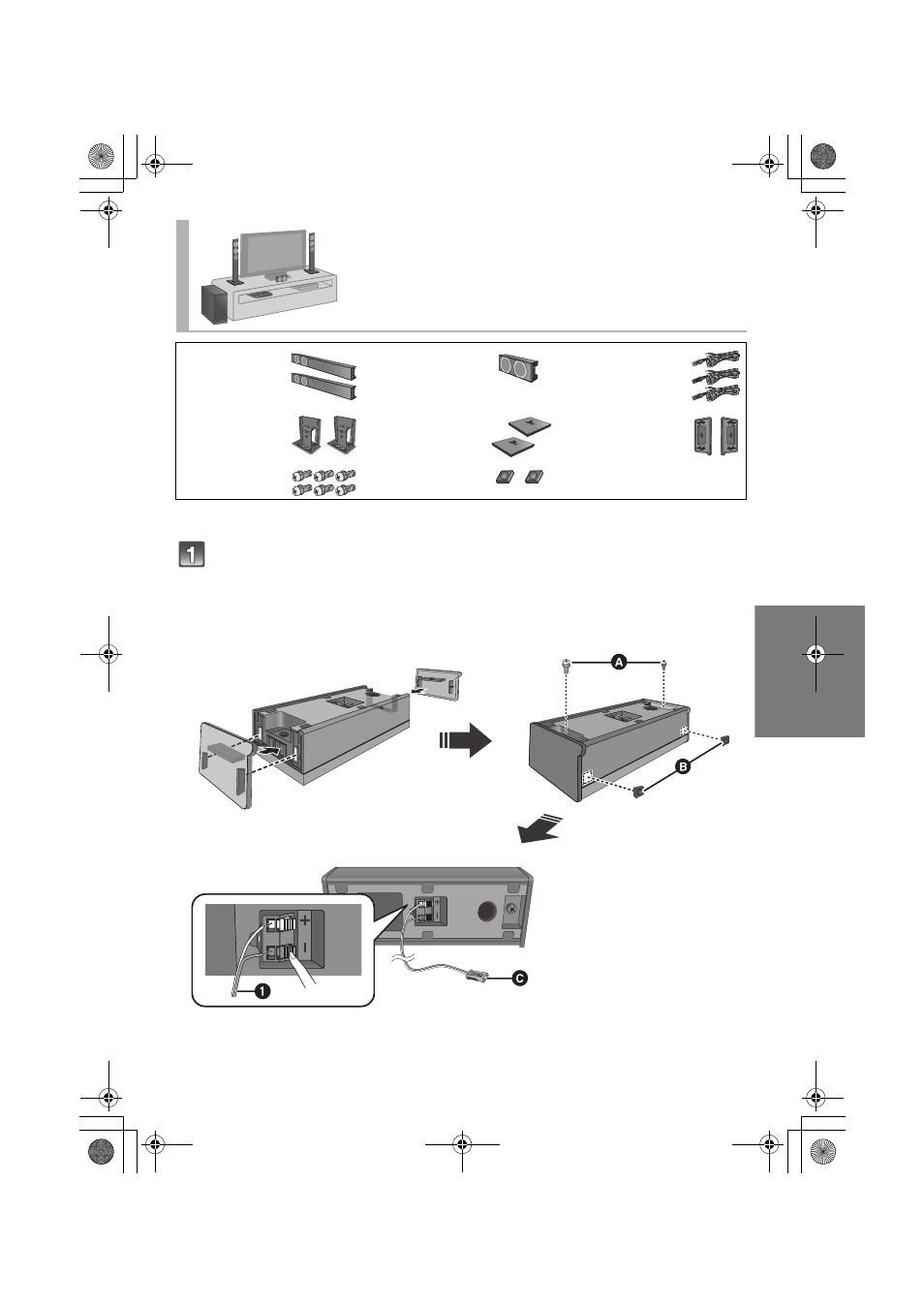

Assemble the center speaker:
Attach the side caps and speaker feet to the speaker and connect the
speaker cable.
≥ There is no left and right for the center speaker.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
≥ Keep the screws and the speaker feet out of reach of children to prevent swallowing.
Place the front speakers using the speaker
bases
∏ 2 Front
speakers
∏ 1 Center speaker ∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Center
∏ 2 Stand necks ∏ 2 Speaker bases ∏ 2 Side caps
∏ 6 Screws ∏ 2 Speaker feet
A Screw (supplied)
≥ Tighten securely.
B Speaker foot (supplied)
C Center speaker connector
1 Insert the wire fully.
r: White
s: Blue line
Push
Green
