English

Installation procedure

• When installing the stand, provisionally tighten all

bolts and screws first, and then tighten them fully
when assembly is complete.

• Use a screw driver with a long shaft.

N o t e

Note

• Select a horizontal and stable location for carrying

out assembly.

N o t e

Note

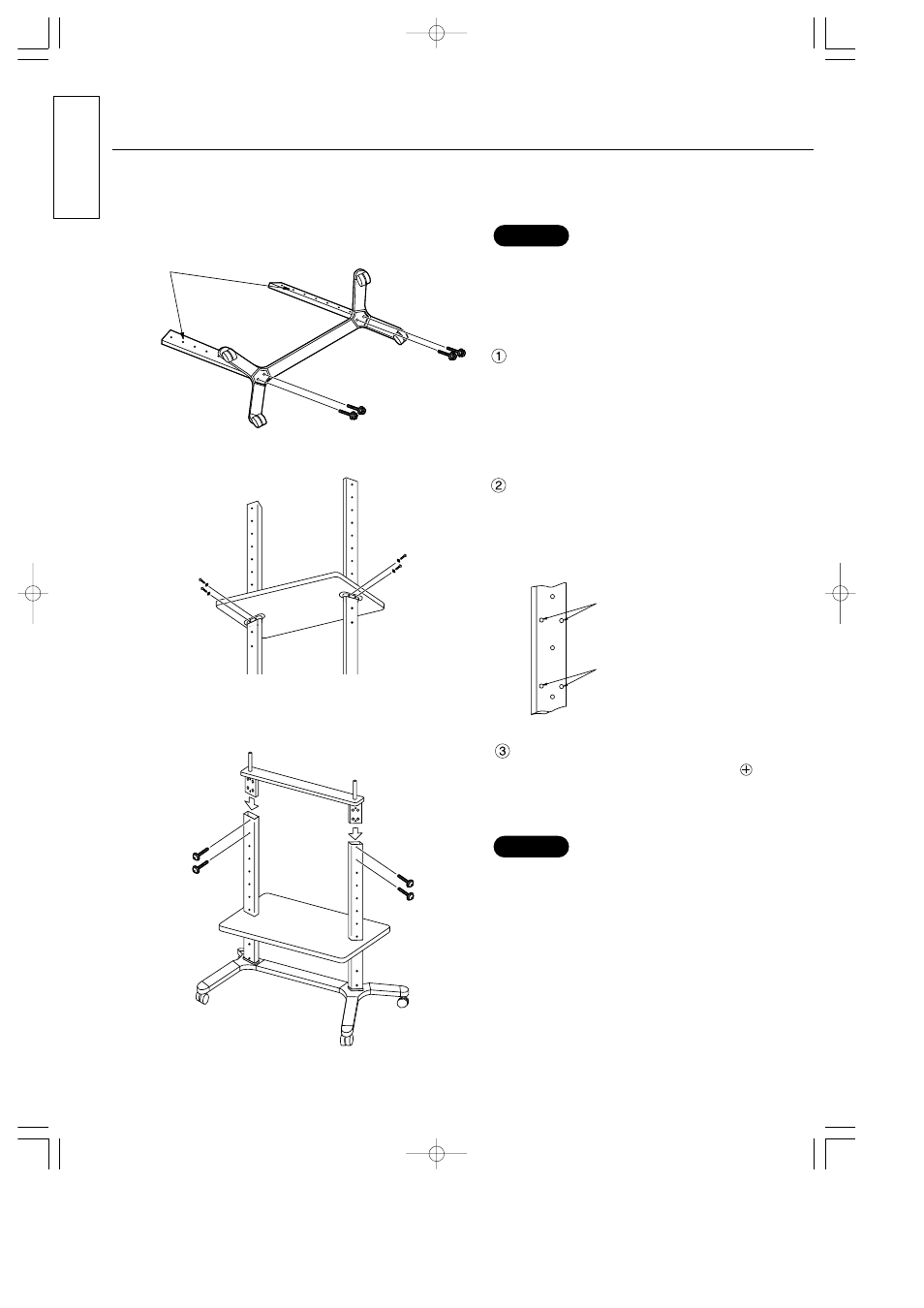

Insert the holder into the supports, and
secure it in four places using the
M5-15 screws.

Insert the supports into the stand base,
and then secure them from the bottom
using the four M8 bolts.

Pass the shelf over the supports, and
then secure the shelf in four places
using the M6 screws and spring
washers.

1. Assemble the stand.

Install so that the opening
is facing out.

Stopper holes
(at shelf height of
350 mm (13

in.))

Stopper holes
(at shelf height of
500 mm (19

in.))

Support
