Tumbler (basket/idler shaft assemblies, For models mfd. prior to april 20, 1999, Tumbler (basket)/idler shaft assemblies – ADC AD-310 User Manual
Page 49
47
Telephone: (508) 678-9000
Fax: (508) 678-9447
Illus. No.
Part No.
Qty.
Description
1
826046
1
Tumbler (Basket) Assembly
(for 2-Door Models)
826017
1
Tumbler (Basket) Assembly
(for 1-Door Models)
2
821215
2
Drive Wheel Assembly
3
180007
2
1-1/2" Trantorque
4
170511
2
1/8-27 N.P.T. Grease Fitting
5
150620
4
1/2-13 x 2-1/2" Hex Head Machine Bolt
6
153011
4
9/16" Flat Washer
7
880880
2
1-1/2" Pillow Block Bearing with Grease Fitting
(includes illus. nos. 4 and 7)
8
152011
2
1/2-13 Hex Nut
9
150609
2
1/2-13 x 4-1/2" Hex Head Machine Bolt
10
153011
4
9/16" Flat Washer
11
153026
4
1/2" Lock Washer
12
152011
4
1/2-13 Hex Nut
13
334057
1
Idler Shaft

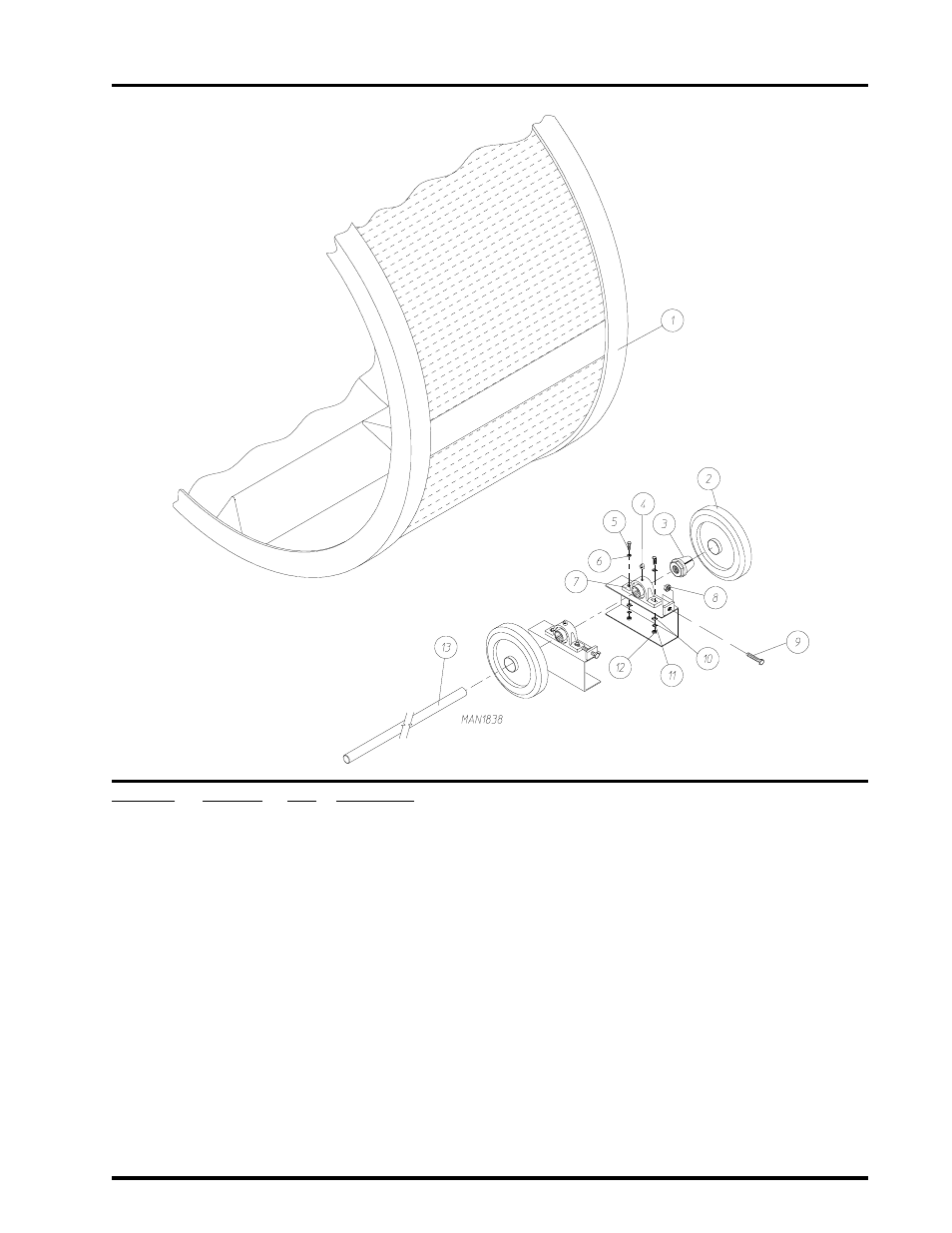

Tumbler (Basket)/Idler Shaft Assemblies
for models mfd. prior to April 20, 1999
