Tape Out/Aux Connections

The GTP-870HD includes two additional sets of RCA

outputs for connection to a tape recorder and/or au-

dio system. Follow these steps to connect your audio

output device to the GTP-870HD.

Connecting a Tape Recorder

1 Connect the tape recorder.

• Using RCA cables, connect the Tape outputs

on the GTP-870HD to the audio inputs on

your tape recorder.

2 Monitor the tape recording.

• Press the Tape button on the remote control

or front panel to monitor the tape output.

Connecting an Auxiliary Audio Device

1 Connect the audio device

• Using RCA cables, connect the Aux outputs

on the GTP-870HD to the line inputs on your

audio device.

• The audio signal from the Aux output will

switch according to the Video 1~4 or CD in-

put.

��

��

��

��

��
��
��

��

��

��

��

��

��

��

��

��

��

�

��

��

��

��

�

��

�

��

�

��

��

��

��

��

��

�

��

��
��

��

��

�

��

��

Notes:

• To turn the Tape Monitor

on/off, press the Tape button

on the remote control or front

panel.

• For Tape operations, see page

56.

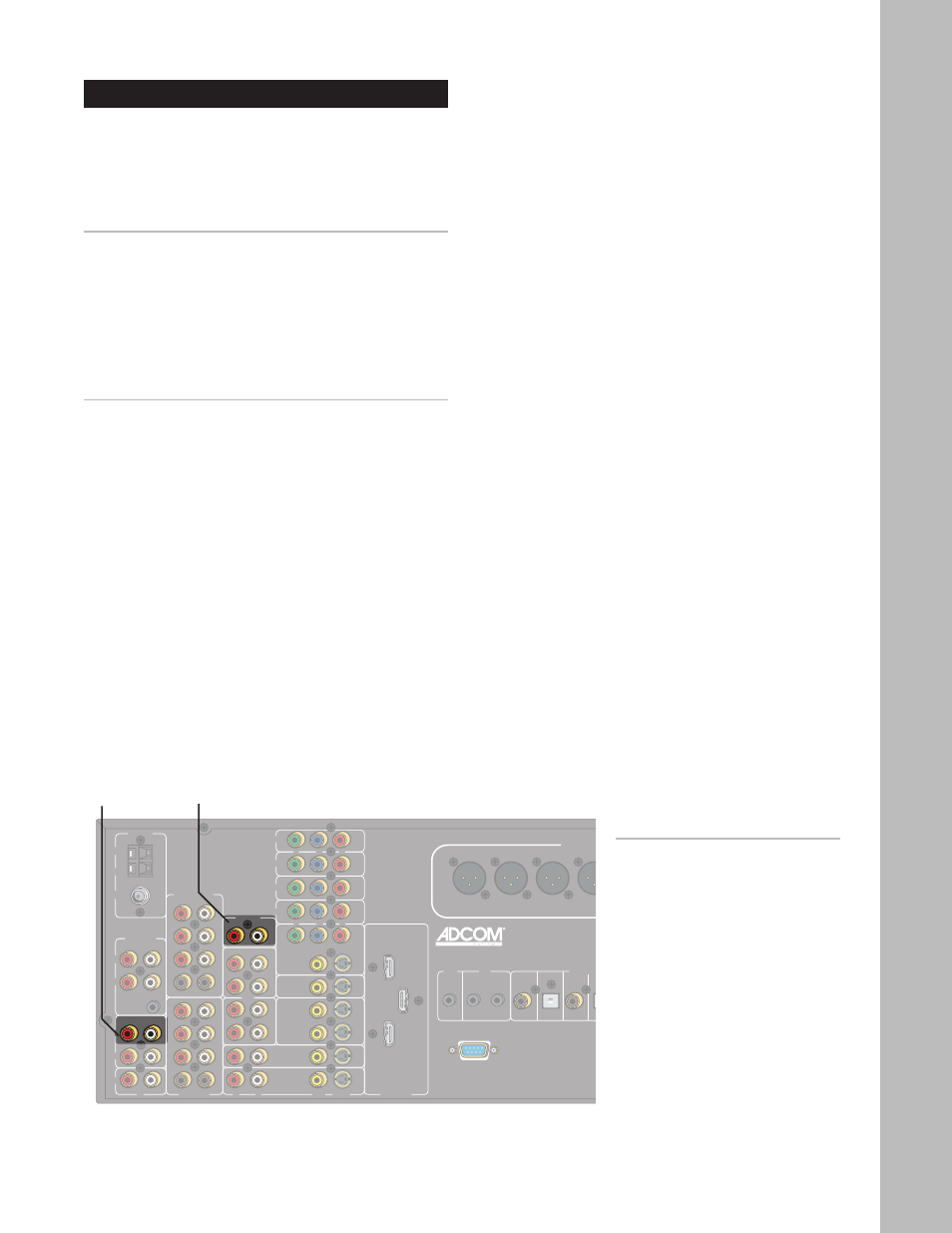

Tape

Output

Aux

Output
