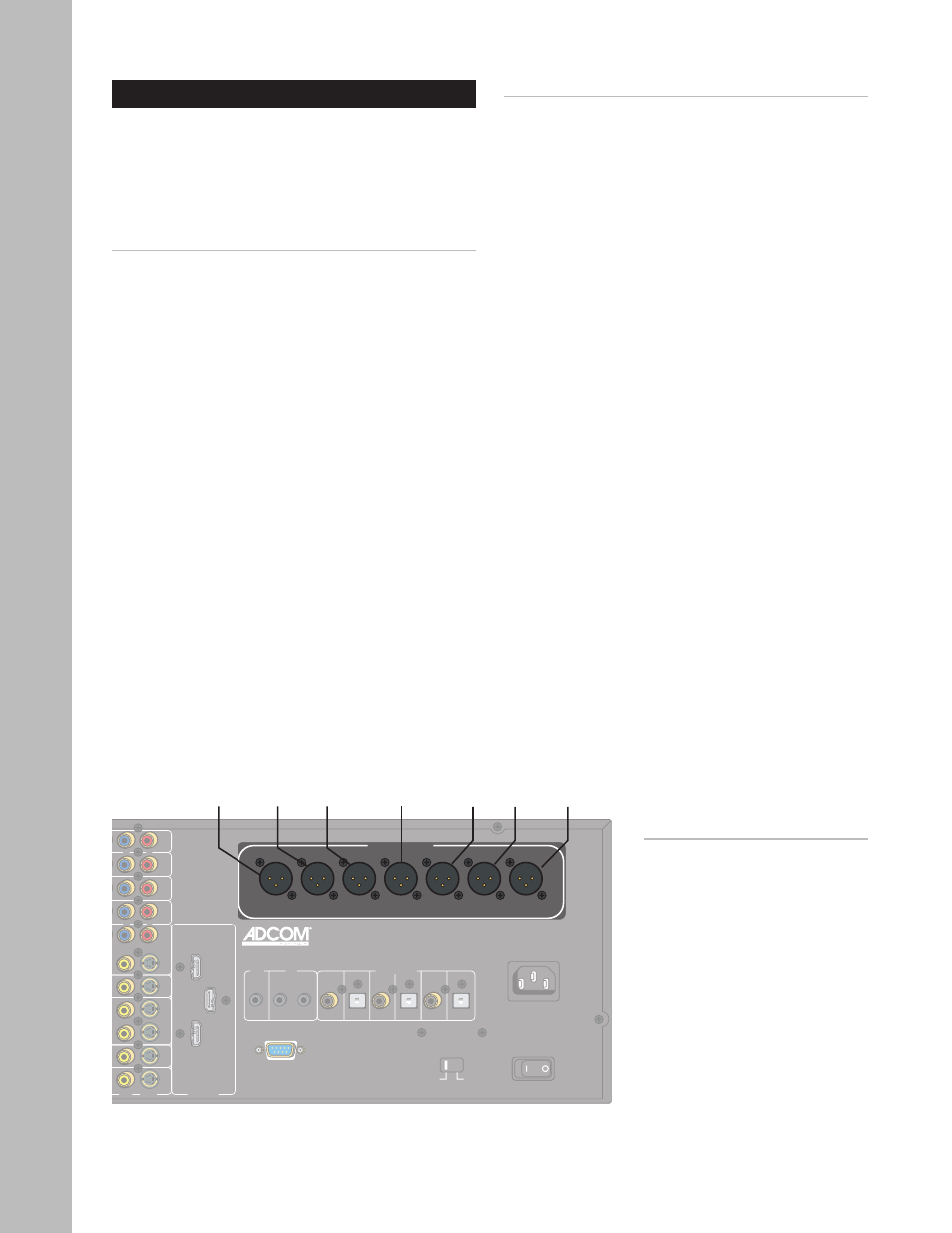

Ampliﬁer Connections (XLR)

Follow these steps to connect the GTP-870HD to a

power ampliﬁer using the balanced audio outputs.

Each channel is equipped with an XLR jack which al-

lows you to enjoy professional quality sound by mini-

mizing the effects of RF and other interference.

Connecting a 7.1-Channel Ampliﬁer (XLR)

1 Using seven XLR cables, connect the balanced

audio outputs from the GTP-870HD to the cor-

responding XLR inputs on your ampliﬁer.

• LF - Left front

• LS - Left surround

•

LB - Left back

• C - Center

• RB - Right back

• RS - Right surround

• RF - Right front

2 If you have a powered subwoofer, see page 25 to

complete the 7.1-channel experience.

Connecting a 5.1-Channel Ampliﬁer (XLR)

1 Using ﬁve XLR cables, connect the balanced au-

dio outputs from the GTP-870HD to the corre-

sponding XLR inputs on your ampliﬁer.

• LF - Left front

• LS - Left surround

• C - Center

• RS - Right surround

• RF - Right front

2 If you have a powered subwoofer, see page 25 to

complete the 5.1-channel experience.

��

��

��

��

��
��
��

��

��

��

��

��

��

��

��

��

��

�

��

��

��

��

�

��

�

��

�

��

��

��

��

��

��

�

��

��
��

��

��

�

��

��

Notes:

• For subwoofer connections,

see page 25.

• For 7.1 preamp connections,

see page 25.

• To conﬁgure the number, size,

crossover frequency, delay,

and balance settings for your

speakers, see pages 37-39.

Right

Front

Right

Surround

Left

Surround

Left

Front

Center

Right

Back

Left

Back
