Rs socket, Setup – ARRI WRC-1 User Manual
Page 20
20

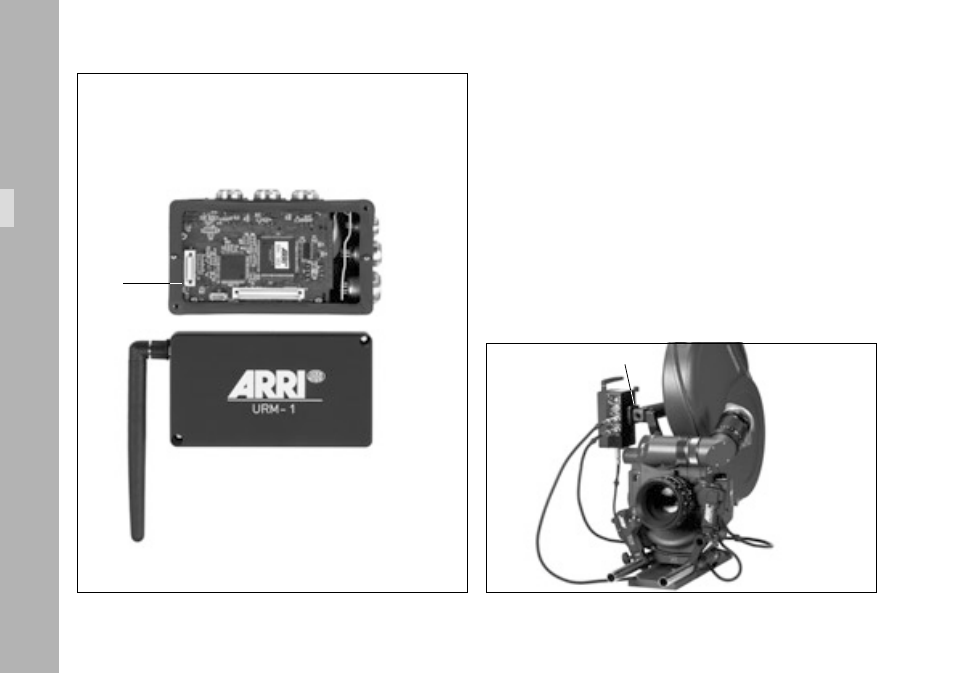

• Place the URM-1 onto the UMC-1, align both plugs
➪ photo
with each other and do not tilt them while
attaching.
• Screw the URM-1 tight to the UMC-1 with the two
allen screws.
• Attach the Universal Motor Controller UMC-1 with the
URM-1 to the camera using the dovetail adapter
➪ photo
with a 3/8" threaded bolt (K2.52080.0).
• Connect the RS socket on the camera with the RS
socket on the UMC-1 using the UC-C1 cable.
plug
dovetail adapter
Setup
