Plumbing Schematic–Flow Exceeding 70-GPM
Plumbing Requirements
(continued)
INSTALLATION

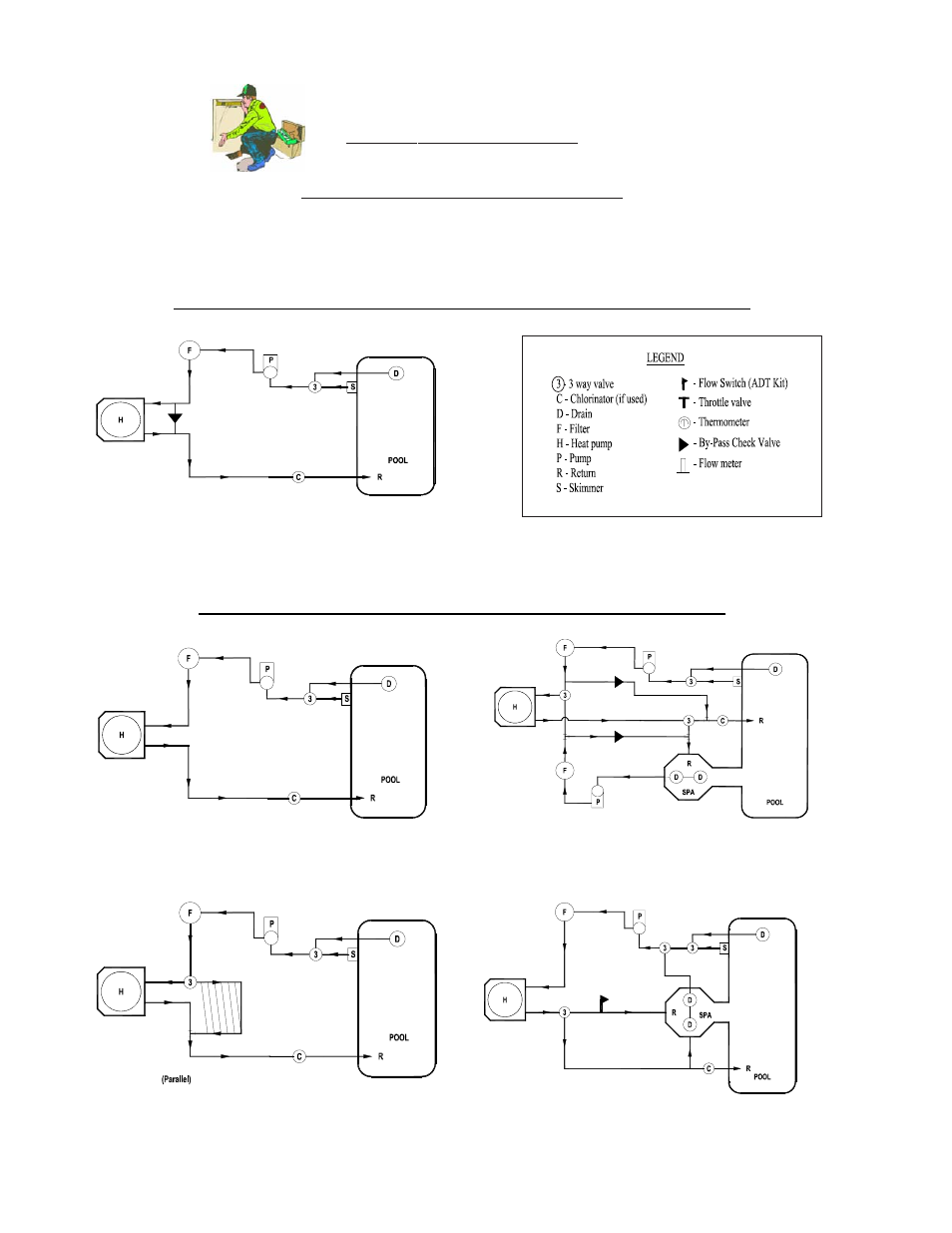

Plumbing Schematics–Flow 20 to 70-GPM
T YPICAL P OOL - F LOW LESS THAN 70- GPM P OOL /S PILL O VER S PA - T WO P UMP S YSTEM
H EAT P UMP WITH S OLAR P ANELS P OOL /S PILL O VER S PA - O NE P UMP S YSTEM
Bypass Check
Valve
T YPICAL P OOL - F LOW G REATER THAN 70- GPM
(2-HP P UMP )
