ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
(1) Pliers
(1) Hammer
(2) 7/16" Open or Boxed End Wrenches
1. Remove the spreader, the loose parts and the hard-
ware package from the carton. Lay out parts and
hardware and identify using the illustrations on
pages 2 and 3.

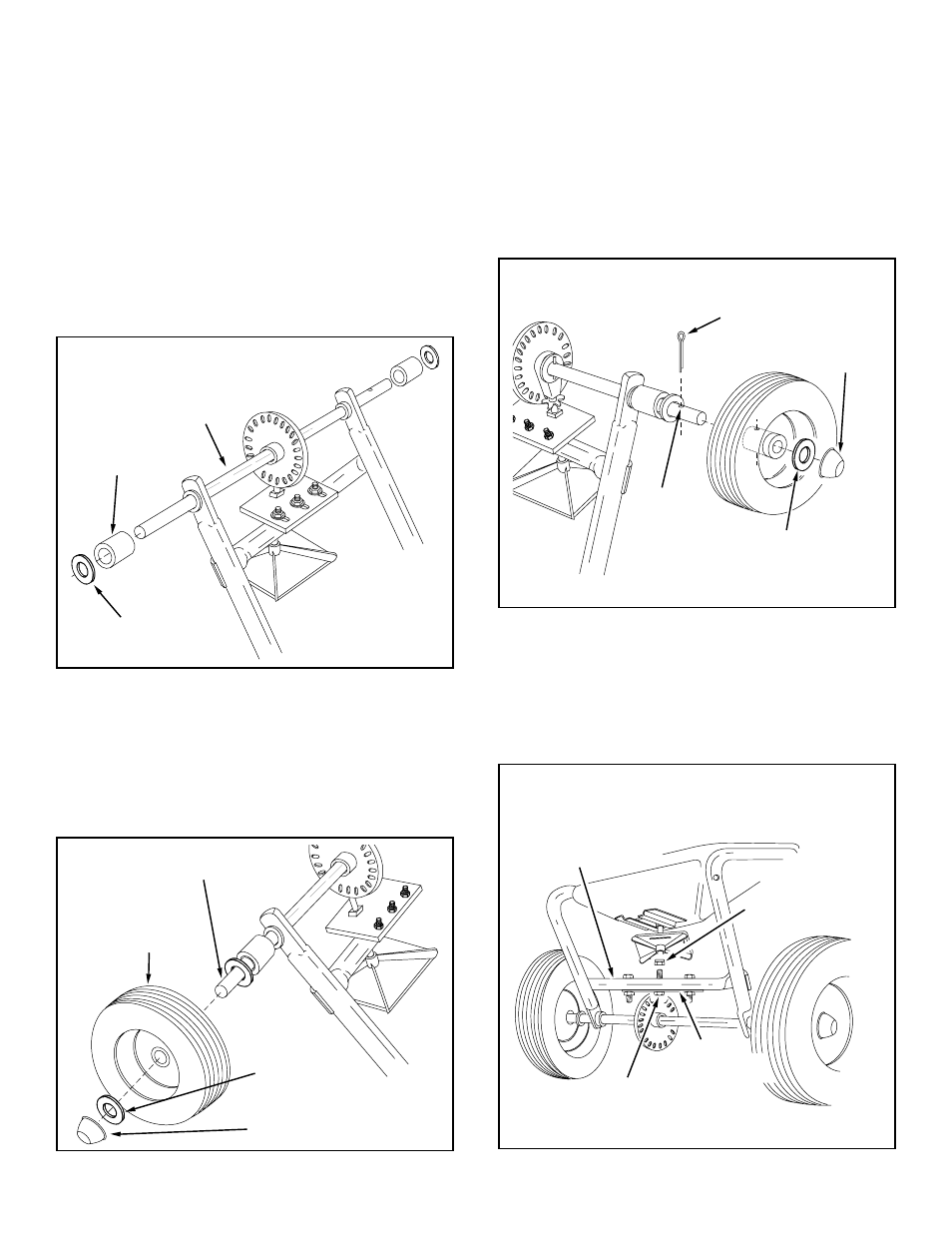

2. With the spreader resting upside down on the top of
the hopper, assemble a spacer and then a 5/8" flat
washer onto each end of the axle. See figure 1.
FIGURE 2
FIGURE 1
FIGURE 3
5. Place a wheel onto the end of the axle that has a
cross hole. The long end of the hub goes to the
inside. See figure 3.
6. Assemble a 5/32" x 2" cotter pin through the hole in
the wheel hub and the axle. See figure 3.
7. Place a 5/8" flat washer onto the axle and then
lightly tap a hub cap onto the axle until it is snug
against the washer and wheel hub. See figure 3.
FIGURE 4
3. Place a wheel onto the end of the axle that has no
cross hole. The long end of the hub goes to the
inside. See figure 2.
4. Place a 5/8" flat washer onto the axle and then
lightly tap a hub cap onto the axle until it is snug
against the washer and wheel hub. See figure 2.
AXLE
SPACER
5/8" FLAT
WASHER
5/8" FLAT
WASHER
HUB CAP
WHEEL
NO CROSS HOLE
HUB CAP
5/32" x 2"
COTTER PIN
CROSS
HOLE
5/8" FLAT
WASHER
8. Remove the nut from the middle bolt in the crossover
tube. See figure 4.
CROSSOVER
TUBE
MIDDLE NUT
SHAFT
SUPPORT
PLATE
MIDDLE BOLT
