Preparation
5
Controls

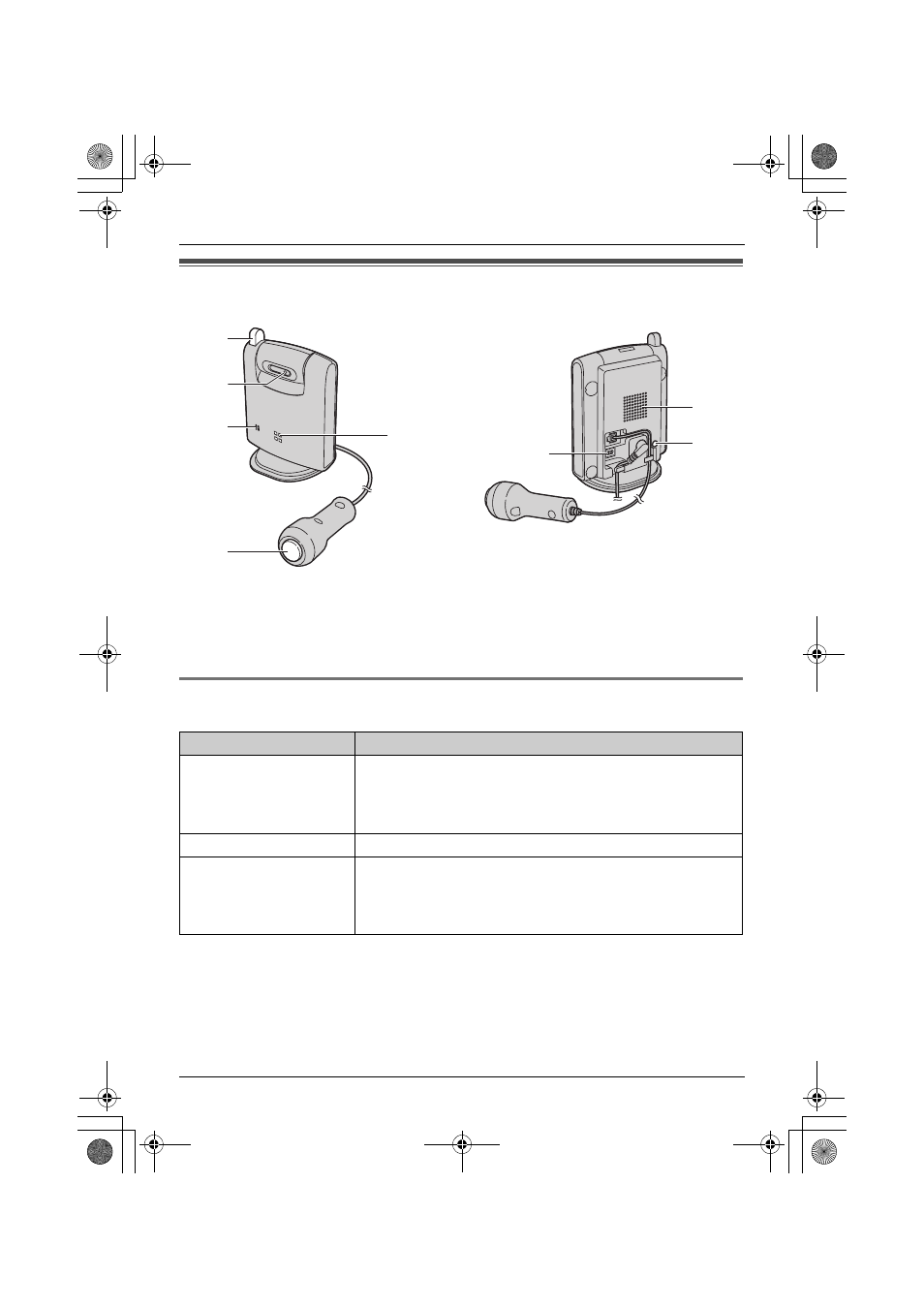

Understanding the cordless camera indicator
The cordless camera indicator shows the status as follows.
A Antenna
B Camera lens
C MIC (Microphone)
D Call button E Indicator
F DIP switches
G Speaker
H PROG. (Program)
Status Description
Red (flashing rapidly)
L
The cordless camera is not registered. Register the
cordless camera (page 13).
L
The cordless camera is out of range. Locate the cordless
camera near the base unit.
Yellow-green
L
The cordless camera is registered and in standby mode.
Yellow-green (flashing)
L
The camera sensor is responding and the cordless camera
is paging the handset.
L The cordless camera is connected and sending live images
to the handset.
