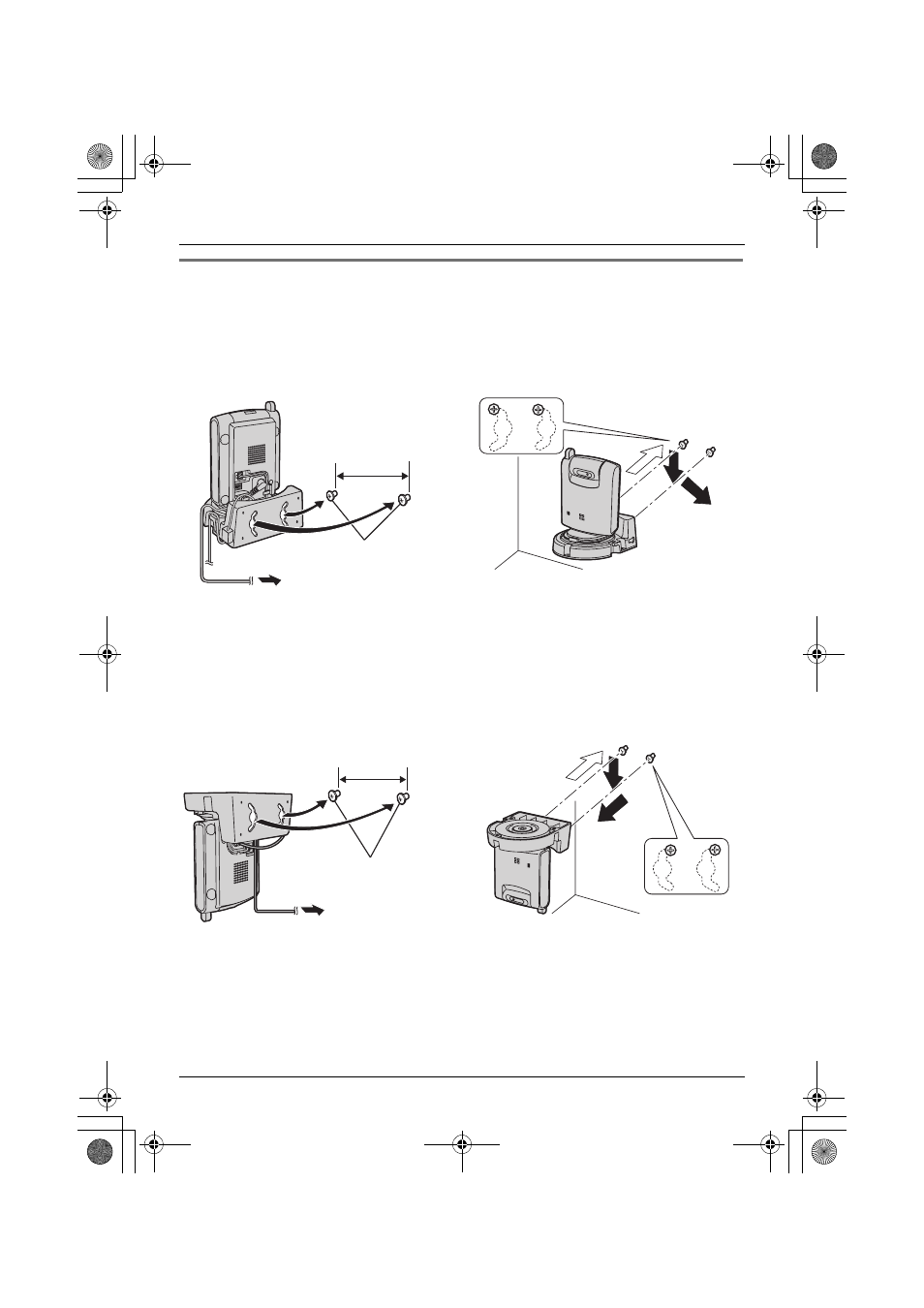

Mounting the cordless camera on the wall
Standard mounting
Upside down mounting
L
The image may be seen upside down when mounting upside down. To compensate for this,
change the cordless camera setting to display images upside down (page 8).
1
Drive the screws (not included) into the
wall at a recommended height of 1.8 m
or below using the wall mount template
as a guide (page 16).
2
Mount the cordless camera ( A), then
slide it down ( B) and to the right (C) until
it is secure.
L
To aim the camera lens, see page 7.
1
Drive the screws (not included) into the
wall at a recommended height of 1.8 m
or below using the wall mount template
as a guide (page 16).
2
Mount the cordless camera ( A), then
slide it down ( B) and to the left (C) until
it is secure.
Screws
51 mm
(220–240 V, 50 Hz)
A
B
C
Screws
51 mm
(220–240 V,
50 Hz)
A
B
C
