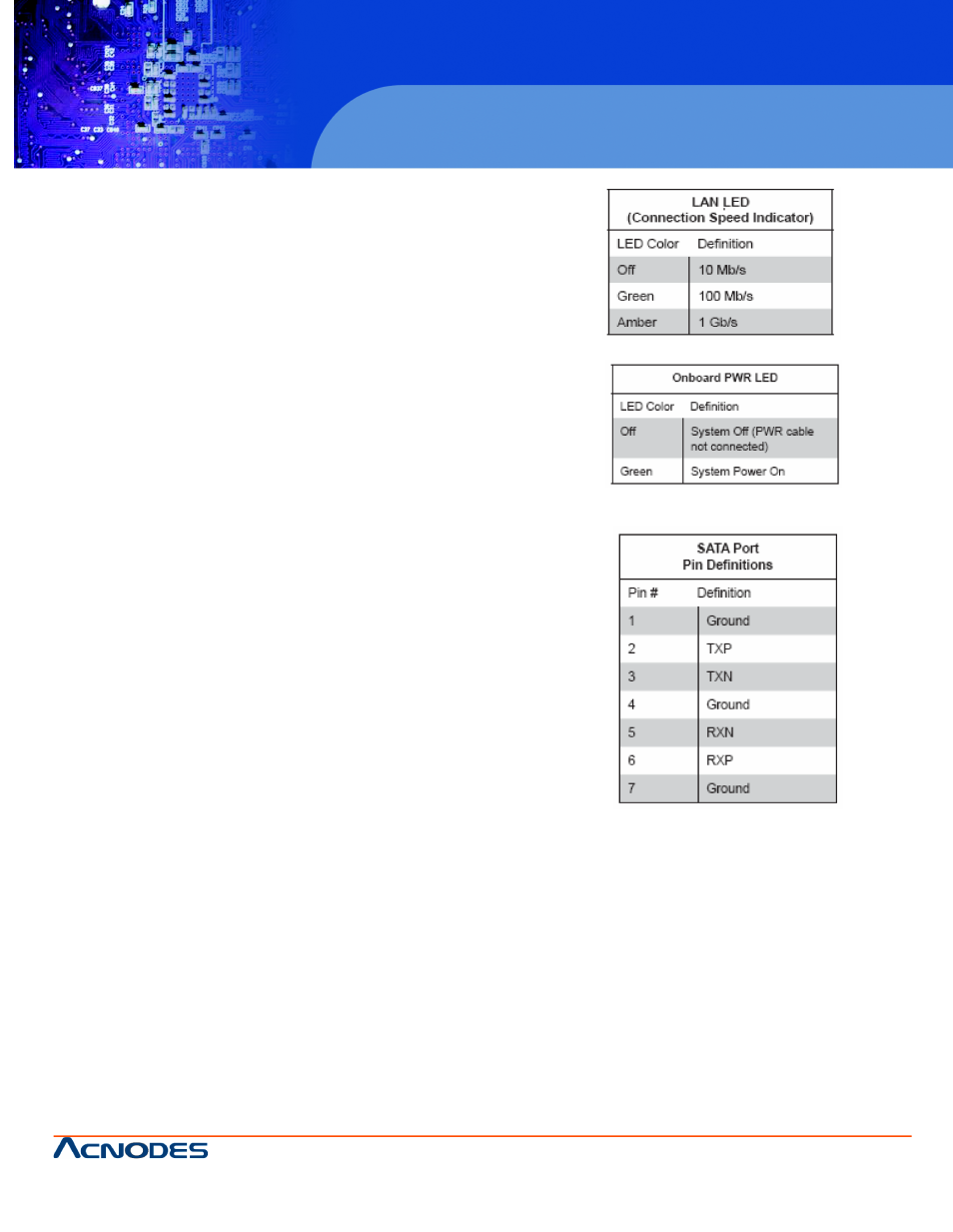

5.11 Onboard Indicators

LAN1/LAN2 Indicators

The Ethernet ports have two LEDs. On each GB LAN port,

one LED indicates activity when blinking while the other LED

may be green, amber or off to indicate the speed of the

connection. See the table on the right for the functions

associated with the connection speed LED.

OnBoard Power LED

An OnBoard Power LED is located at LE1. When this LED is

lit, the system is on. Be sure to turn off the system and

unplug the power cord before removing or installing compo-

nents. See the table at right for more information.

Rear UID LED

The rear UID LED is located at LE2 on the backplane. This

LED is used in conjuntion with the front UID LED on the Front

Control Panel and the rear UID switch to provide easy

identification of a system in need of service.
