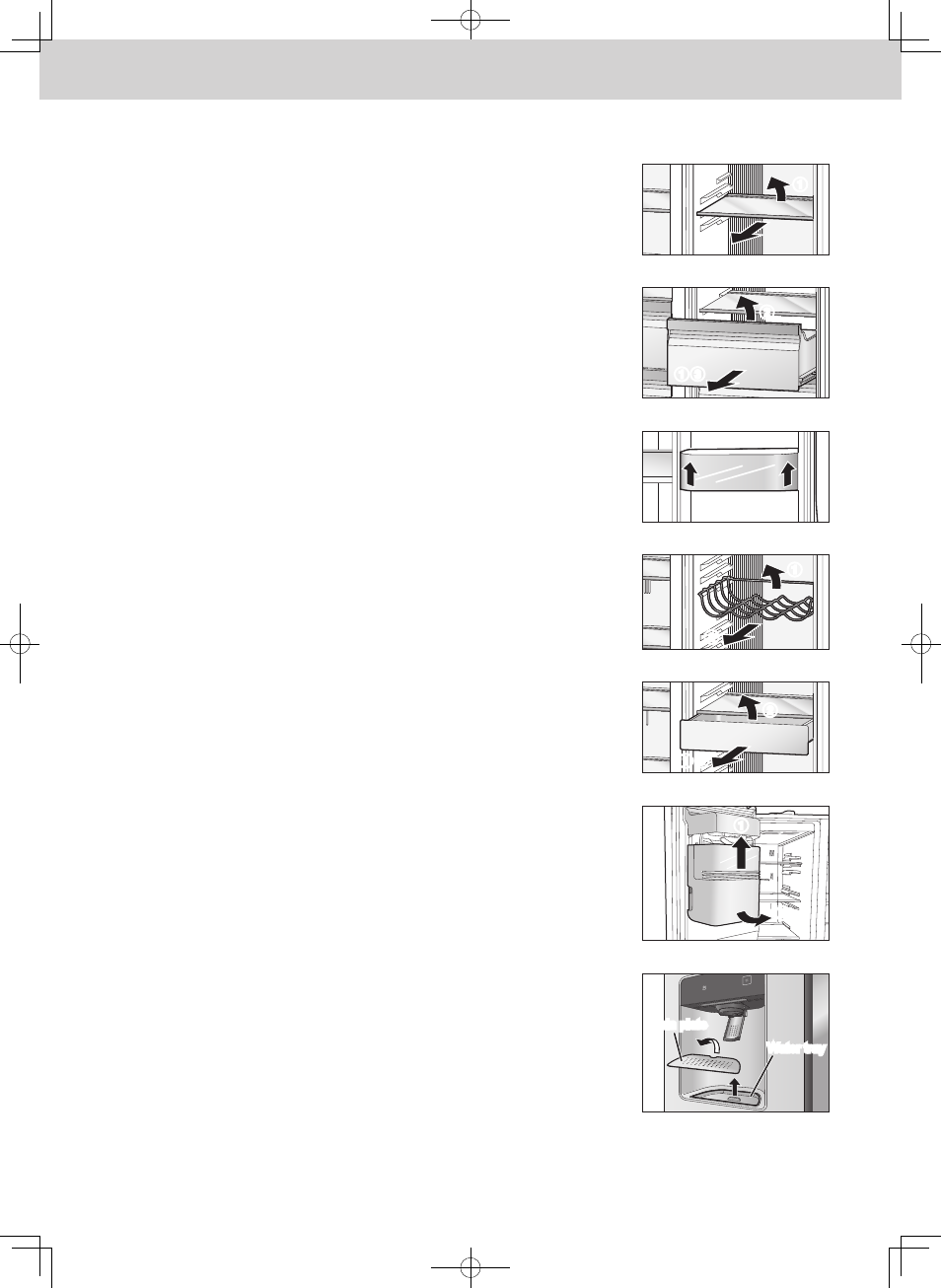

Glass shelves
Raise the back part of the shelf slightly, and pull out the shelf.
To re-install the shelf, align it with the left and right guides, and push it into
place.
1
2
Drawers
Pull the drawer out all the way, and while raising the back part of the drawer
slightly, and pull out the drawer.
To re-install the drawer, align it with the left and right guides, and push it into
place.
13
2
Door shelves and sealed case door shelf
Push the shelf up from below, and remove it.
To re-install the shelf, align the left and right protrusions, and insert the shelf
firmly down until it will go no further.
Wine rack
Raise the back part of the wine rack slightly, and pull out the rack.
To re-install the rack, align it with the left and right guides, and push it into
place.
1
2
Suspend shelf (model NR-B53V1 only)
Pull the suspend shelf out all the way, and while raising the back part of the
suspend shelf slightly, and pull out the suspend shelf.
To re-install the suspend shelf, align it with the left and right guides, and push
it into place.
13
2
Icebox
Raise the icebox slightly, and pull the bottom part out toward you.
To re-install the icebox, first align its top part with the automatic ice maker,
then push down its bottom part and insert it firmly into place below as far as
it will go.
● When removing the icebox, take care not to spill the ice inside.
● Before re-installing the icebox, take out the ice inside.
1
2
Ice/Water dispenser drain plate and water tray
Place your fingers in the cutout at the back of the drain plate, and remove
the tray.
Take hold of the protrusion in the water tray, and remove the tray.
When re-installing the trays, install the water tray first, and then install the
drain plate.
Drain plate
Water tray
Removing and re-installing
