E - 13
Setup
(continued to next page) (continued to next page) (continued to next page) (continued to next page) (continued to next page)

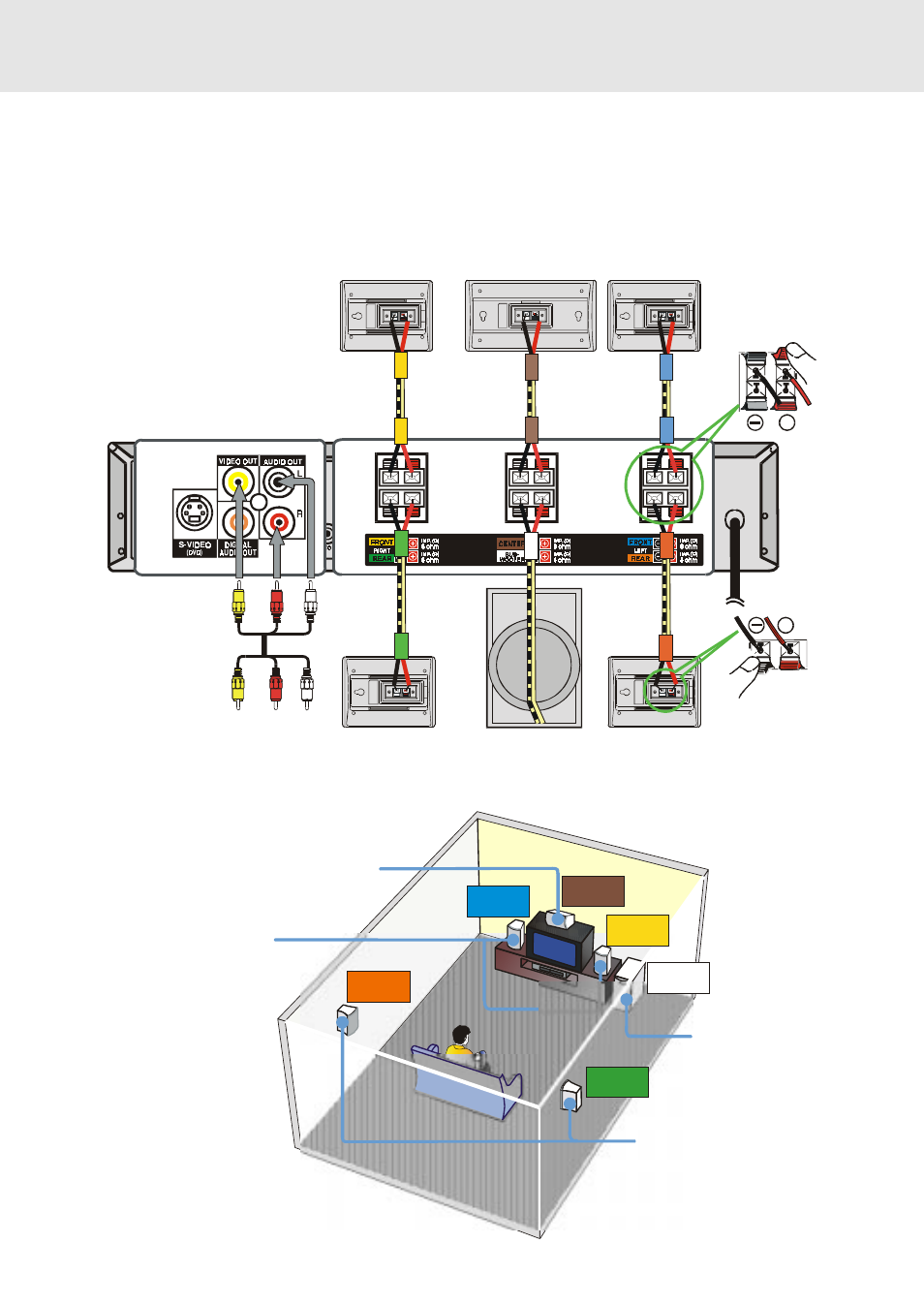

D. Connecting the speakers & subwoofer
1. The speaker cords have been color-coded to simplify connection. Just plug the POSITIVE (+) and NEGATIVE (-)
ends of each speaker wire into the corresponding jacks on the rear of the Unit, matching the color tube on the end
of the speaker wire to the color-coded connector.
2. Connect each of the speaker wires to the satellite speakers. The front left/right and rear left/right speakers are all
the same. However, make sure you connect to the center speaker (color) to the one speaker which is slightly longer
than the rest.
E. Positioning the speakers and subwoofer
FRONT SPEAKERS
Place on both sides of the TV,
equal distances apart.
SUBWOOFER
Can be placed anywhere.
CENTER
Place on the top of
or below the TV.
SUB-
WOOFER
CENTER
FRONT
LEFT
FRONT
RIGHT
REAR
RIGHT
REAR
LEFT
REAR SPEAKERS
Place right beside or slightly
behind your listening position,
and a little higher than your ears.
SUB-WOOFER
CENTER
REAR (RIGHT)
FRONT (RIGHT)
REAR (LEFT)
FRONT (LEFT)
+
+
To
VIDEO IN
TELEVISION
To
AUDIO IN
